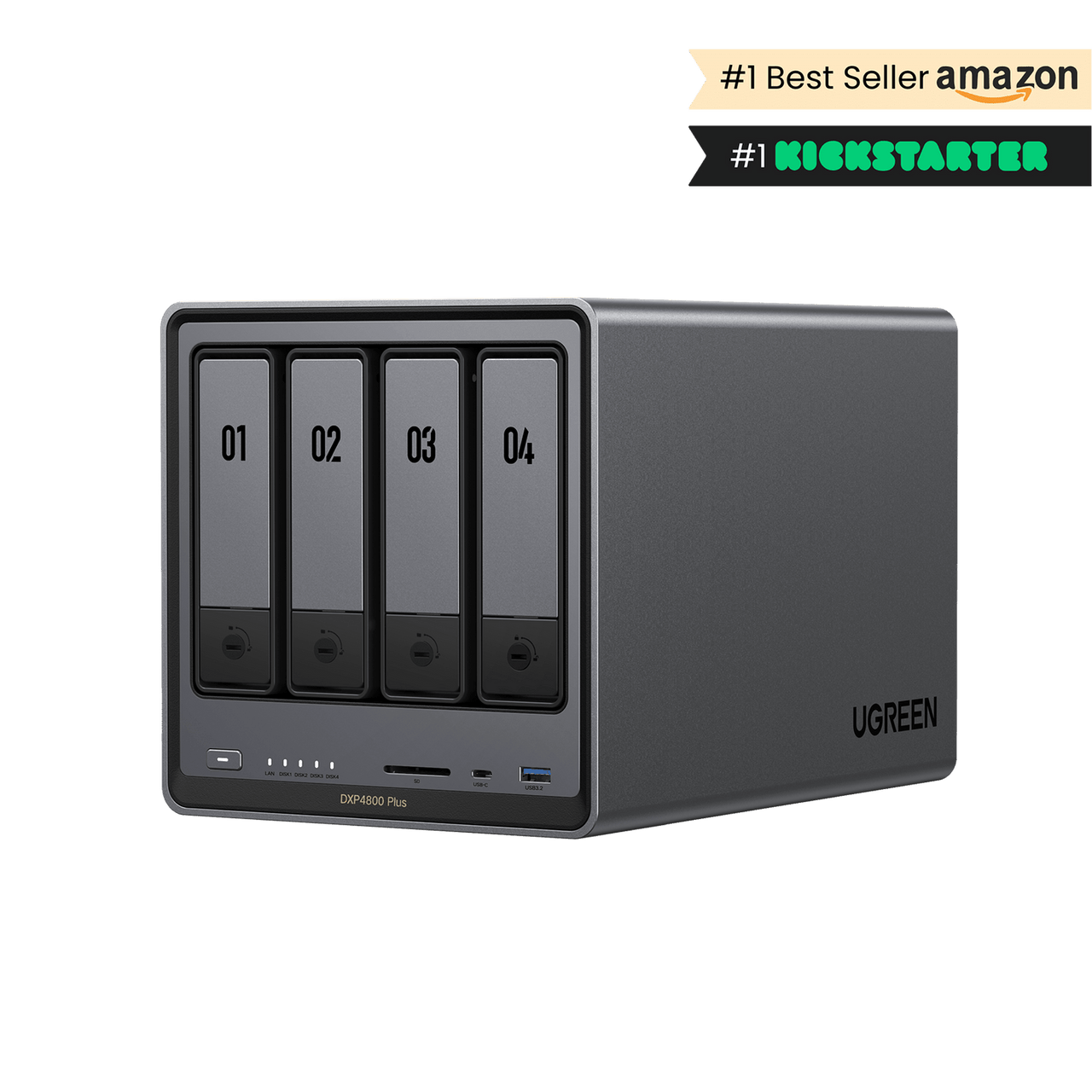

Description, Specifications for UGREEN NASync DXP4800 Plus – Powerful 4-Bay NAS Storage with Enhanced Performance
The UGREEN NASync DXP4800 Plus is a high-performance 4-bay NAS device designed for demanding users who require superior speed, scalability, and data protection. Featuring a 12th Gen Intel® Pentium® Gold 8505 processor with 5 cores and 6 threads, this NAS is built to handle multitasking and heavy workloads with ease.
Key Features:
- Processor: Intel 12th Generation Pentium Gold 8505 CPU with 5 cores and 6 threads for efficient processing power.
- Memory: Equipped with 8GB DDR5 RAM, expandable up to 64GB, allowing seamless performance even with intensive applications.
- Storage: Four SATA bays for large-capacity drives plus two M.2 SSD slots for ultra-fast caching or storage.
- RAID Support: Supports multiple RAID levels including JBOD, Basic, 0, 1, 5, 6, and 10 for flexible data redundancy and performance options.
- Network Connectivity: Dual LAN ports with 1x 10GbE and 1x 2.5GbE for ultra-fast and reliable network speeds.
- USB Ports: Front panel includes 1x USB-C and 1x USB-A (both 10Gbps), with additional rear ports for USB 3.2 and USB 2.0 devices.
- Operating System: Runs UGOS Pro for intuitive device management and comprehensive app support.
- Additional Features: 128GB SSD for system storage, SD 3.0 card reader, and 4K HDMI output for high-definition media streaming.
- Power Efficiency: Power consumption of 42.36W during drive access and 18.12W in drive hibernation mode.
Specifications:
| Model | DXP4800 Plus |
| CPU | Intel 12th Gen Pentium Gold 8505, 5 cores / 6 threads |
| RAM | 8GB DDR5 (expandable to 64GB) |
| System Storage | 128GB SSD |
| Drive Bays | 4 x SATA bays |
| M.2 SSD Slots | 2 slots |
| RAID Levels | JBOD, Basic, 0, 1, 5, 6, 10 |
| Network Ports | 1 x 10GbE, 1 x 2.5GbE |
| USB Ports | Front: 1 x USB-C 10Gbps, 1 x USB-A 10Gbps Rear: 1 x USB-A 5Gbps, 2 x USB-A 2.0 (480Mbps) |
| SD Card Reader | SD 3.0 |
| HDMI Output | 4K HDMI |
| Dimensions | 10.1" × 7.0" × 7.0" |
| Power Consumption | 42.36W (drive access), 18.12W (drive hibernation) |
| Operating System | UGOS Pro |
| Supported Languages | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
The UGREEN NASync DXP4800 Plus offers enhanced performance and scalability, making it an excellent choice for professionals and businesses that demand fast, reliable, and secure network storage.
