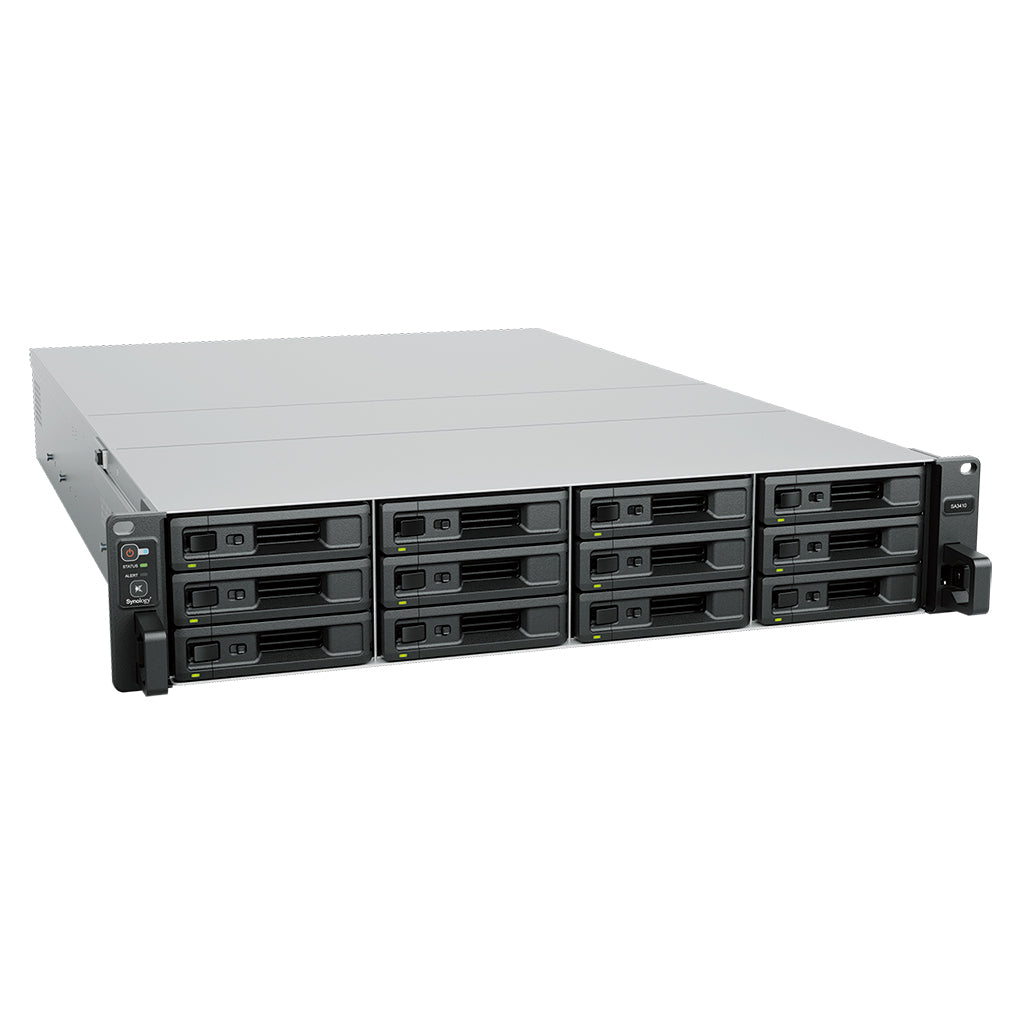

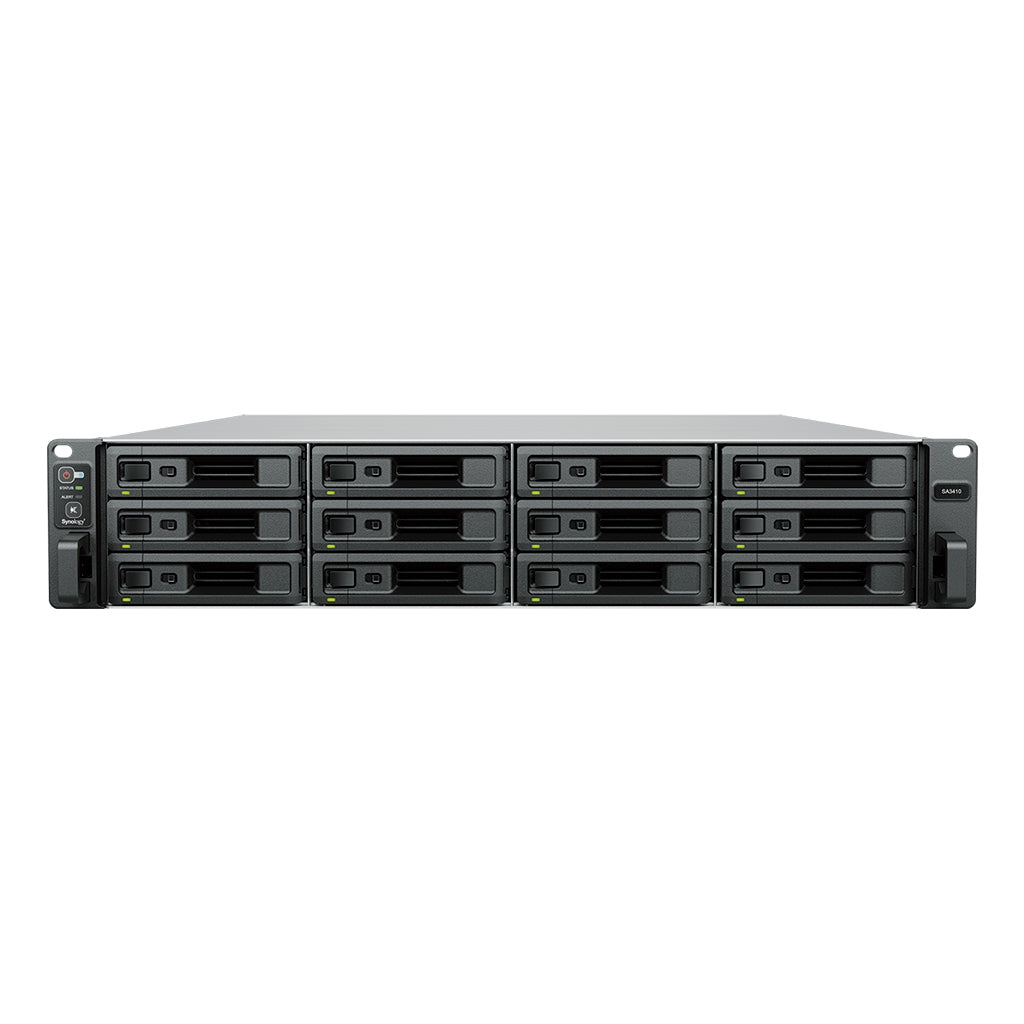

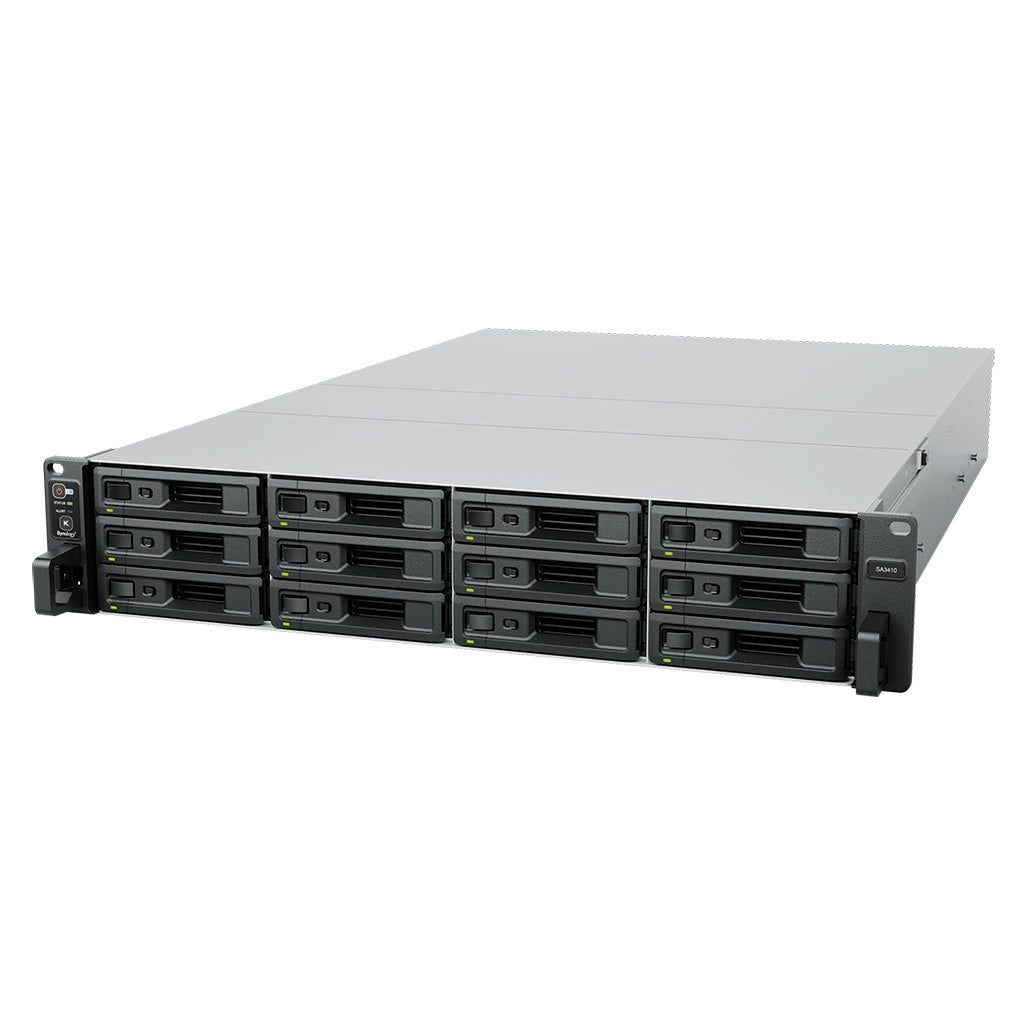

Synology SA3410

AED 26,040.00 (Inc. VAT)

3rd Party Disk Compatibility : Only third-party SAS SSDs supported. Other capacities require Synology drives.

Brand: SYNOLOGY MPN: SA3410 GTIN: 4711174725021

Warranty: 5 years Specs(PDF)

⬤

Pre-Order

Sold out but we have more in transit and may have a close replacement in stock. Place the order and we promise to get back to you with the exact delivery time or a similar product.

Free Delivery within UAE Customer service to update Delivery ETA

Returns and Refund Privacy Policy

Description & Specifications

When scalability meets performance

The Synology SA3610 and SA3410 are designed for on-demand scalability and offer up to 1.7 PB of storage when fully expanded. They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.

Fast and reliable

Over 6,200/3,000 MB/s seq. read/write, built-in 10GbE, and hardware and software redundancy.

Expand and adjust

Add up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes whenever needed.

Host core applications

Back up 1,000+ endpoints, manage 128 IP cameras, or provide mailboxes for up to 1,600 users.

Flexibly expand storage capacity

Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.

12 bays 216 TB

96 bays 1.7 PB

Networking capabilities

Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.

Reliable and dependable

Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.

Versatile data storage

Consolidate business data, backup data, and more in a highly scalable server.

File server

Backup repository

Business application platform

File server

Utilize SA3610 and SA3410’s storage capacity and flexible expansion capabilities to host large amounts of data on a central repository.

Share and sync files with an all-in-one private cloud solution

Empower employees across your organization to access, edit, and share corporate files securely and conveniently from desktop, mobile, or web browser platforms. Leverage powerful admin tools to track and set file permissions and control access to documents and files.

Enforce company policies with Windows AD and SMB/NFS

Configure and implement group policies for groups of users using access control lists (ACL) through Windows Active Directory/LDAP integration. Enable user access to files or folders via SMB or NFS protocols.

Sync files across business sites

Synology Drive ShareSync enables one or two-way syncing between multiple Synology servers so that all team members can access the same set of data on their nearest file server.

Reduce storage footprint

Cut bandwidth use, boost sync speeds, and reduce storage footprint by intelligently syncing the bulk of your data to the cloud with Hybrid Share, while deploying Synology devices locally to give teams fast access to all their frequently used data at local network speeds.

Backup repository

Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.

Bare-metal PC, server, and VM backup

Securely back up Windows clients and servers, Linux endpoints, Synology systems, and VMware® and Hyper-V® virtual machines to the SA3610 and SA3410 with Active Backup for Business. Manage all tasks through a centralized management console and choose between bare-metal or file-level restoration. Built-in data deduplication maximizes storage efficiency.

Protect company SaaS accounts

Protect Microsoft 365 and Google Workspace accounts by maintaining complete offline copies of your crucial information and configurations with Active Backup for Microsoft 365 and Active Backup for Google Workspace.

Flexible off-site backup for shares and LUNs

Use Hyper Backup to back up shared folders, LUNs, system settings, and software packages from your Synology system to a secondary server, external device, or Synology C2 Storage. Set up backup schedules, multi-versioning, and flexible backup rotation, protect data with fine-grained permissions and encryption, and reduce backup sizes with built-in deduplication.

Snapshot Replication enables configurable point-in-time snapshots of shared folders and LUNs with an RPO as low as 5 minutes and recovery within seconds.

Bare-metal backup for Synology systems

Perform bare-metal backups and use multi-versioning and data deduplication to store backup copies of Synology systems, while drastically reducing the amount of space needed to store mission-critical data.

Business application platform

Boost team efficiency by utilizing Synology productivity solutions to work and communicate across teams or test out new software in company-hosted containers or virtual machines.

Collaborative tools for team productivity

Create, edit, and share documents, slides, and spreadsheets with teams in real time. Store files in a secure private cloud to take ownership of your data.

Send and receive emails on Synology’s private email server using powerful webmail tools and experience full data ownership, transparent total cost of ownership, and robust security features.

Stay connected with team members by using secure one-on-one chats, public channels, encrypted private channels, and group conversations for efficient workplace communication.

Test out applications in a contained environment

Safely test out new packages, software, and applications in an isolated environment using Docker and Synology Virtual Machine Manager (VMM) — a hypervisor for Windows®, Linux®, and Virtual DSM.

Containerization and virtualization-ready

Centralized monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System (CMS)

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight

Monitor your global Synology fleet’s performance, backup status, login activity and more with the power of the cloud.

Synology has got you covered

The SA3610 and SA3410 are backed by Synology's 5-year limited warranty, including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance.

Backed by Synology hard drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.

High Scalability SA3610 & SA3410

SA3610	SA3410
CPU	Intel Xeon D-1567 12-core	Intel Xeon D-1541 8-core
Sequential read/write	6,275/3,056 MB/s	6,283/3,023 MB/s
Random read/write IOPS	450,814/122,675	336,224/116,518
Max. memory	128 GB DDR4	128 GB DDR4
Max. expansions	96 drive bays	96 drive bays
Warranty	5 years	5 years

SA3610

1 Power Button and Indicator
2 Status Indicator
3 Alert Indicator
4 Mute Button
5 Drive Status Indicators

6 Drive Trays
7 Rail Kit Release Tabs
8 PSU Fans
9 Power Ports
10 PSU Indicators

11 Console Port
12 1GbE RJ-45 Ports
13 10GbE RJ-45 Ports
14 USB 3.2 Gen 1 Ports
15 Management Port

16 PCI Express Expansion Slots
17 Expansion Port
18 Reset Button

SA3410

1 Power Button and Indicator
2 Status Indicator
3 Alert Indicator
4 Mute Button
5 Drive Status Indicators

6 Drive Trays
7 Rail Kit Release Tabs
8 PSU Fans
9 Power Ports
10 PSU Indicators

11 Console Port
12 1GbE RJ-45 Ports
13 10GbE RJ-45 Ports
14 USB 3.2 Gen 1 Ports
15 Management Port

16 PCI Express Expansion Slots
17 Expansion Port
18 Reset Button

Notes:

SA3610 and SA3410 units support up to 96 drives with seven Synology RX1222sas expansion units, sold separately.
Performance figures obtained through internal testing by Synology using a RAID 6 configuration. Actual performance may vary depending on the testing environment, usage, and configuration. See for more information.
For the most up-to-date list of compatible NICs and HBAs, please check our .
SSD cache can be enabled by using Synology SAT5200 Series 2.5' SSDs or without occupying drive bays by installing Synology SNV3500 Series NVMe SSDs with or . All devices are sold separately.
Supports up to 128 IP cameras on a single Synology server with . Up to 10,000 cameras can be managed per deployment by adding more recording servers with . Surveillance Station includes 2 free licenses. Connecting more cameras and devices requires additional licenses.
C2 Storage for Hybrid Share requires purchase of an eligible annual or monthly subscription. A free trial is available for each newly registered device.
Certain advanced features require . One Virtual DSM license is included. Additional Virtual DSM instances require the purchase of .
The warranty period starts from the date of purchase as stated on your purchase receipt. Visit for more information.

CPU
CPU Model	SA3610: Intel Xeon D-1567 SA3410: Intel Xeon D-1541
CPU Quantity	SA3610: 1 SA3410: 1
CPU Architecture	SA3610: 64-bit SA3410: 64-bit
CPU Frequency	SA3610: 12-core 2.1 (base) / 2.7 (turbo) GHz SA3410: 8-core 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)	SA3610: Yes SA3410: Yes
Memory
System Memory	SA3610: 16 GB DDR4 ECC RDIMM SA3410: 16 GB DDR4 ECC RDIMM
Memory Module Pre-installed	SA3610: 16 GB (16 GB x 1) SA3410: 16 GB (16 GB x 1)
Total Memory Slots	SA3610: 4 SA3410: 4
Maximum Memory Capacity	SA3610: 128 GB (32 GB x 4) SA3410: 128 GB (32 GB x 4)
Notes	SA3610: Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. Installing memory modules with differing capacities is not recommended. Check the of your Synology product for recommended memory configurations. SA3410: Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. Installing memory modules with differing capacities is not recommended. Check the of your Synology product for recommended memory configurations.
Storage
Drive Bays	SA3610: 12 SA3410: 12
Maximum Drive Bays with Expansion Unit	SA3610: 96 (RX1222sas x 7) SA3410: 96 (RX1222sas x 7)
Compatible Drive Type*	SA3610: 3.5' SAS HDD 2.5' SAS SSD 3.5' SATA HDD 2.5' SATA SSD SA3410: 3.5' SAS HDD 2.5' SAS SSD 3.5' SATA HDD 2.5' SATA SSD
Hot Swappable Drive*	SA3610: Yes SA3410: Yes
Notes	SA3610: Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the . The use of non-validated components may limit certain functionality and result in data loss and system instability. 'Compatible drive type' indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. SA3410: Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the . The use of non-validated components may limit certain functionality and result in data loss and system instability. 'Compatible drive type' indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port	SA3610: 4 (with Link Aggregation / Failover support) SA3410: 4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port	SA3610: 2 (with Link Aggregation / Failover support) SA3410: 2 (with Link Aggregation / Failover support)
Out-of-Band Management LAN Port	SA3610: 1 SA3410: 1
Max. number of LAN ports	SA3610: 15 SA3410: 15
USB 3.2 Gen 1 Port*	SA3610: 2 SA3410: 2
Expansion Port	SA3610: 1 SA3410: 1
Notes	SA3610: This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. SA3410: This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion	SA3610: 2 x Gen3 x8 slots (x8 link) SA3410: 2 x Gen3 x8 slots (x8 link)
File System
Internal Drives	SA3610: Btrfs EXT4 SA3410: Btrfs EXT4
External Drives	SA3610: Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT SA3410: Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance
Form Factor (RU)	SA3610: 2U SA3410: 2U
Size (Height x Width x Depth)	SA3610: 88 mm x 482 mm x 724 mm SA3410: 88 mm x 482 mm x 724 mm
Weight	SA3610: 14.5 kg SA3410: 14.5 kg
Rack Installation Support*	SA3610: 4-post 19' rack (Synology Rail Kit - ) SA3410: 4-post 19' rack (Synology Rail Kit - )
Notes	SA3610: The rail kit is sold separately SA3410: The rail kit is sold separately
Others
System Fan	SA3610: 80 mm x 80 mm x 4 pcs SA3410: 80 mm x 80 mm x 4 pcs
Fan Speed Mode	SA3610: Full-Speed Mode Cool Mode Quiet Mode SA3410: Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan	SA3610: Yes SA3410: Yes
Power Recovery	SA3610: Yes SA3410: Yes
Noise Level*	SA3610: 49.8 dB(A) SA3410: 49.8 dB(A)
Scheduled Power On / Off	SA3610: Yes SA3410: Yes
Wake on LAN / WAN	SA3610: Yes SA3410: Yes
Power Supply Unit / Adapter	SA3610: 550 W SA3410: 550 W
Redundant Power Supply	SA3610: Yes SA3410: Yes
AC Input Power Voltage	SA3610: 100V to 240V AC SA3410: 100V to 240V AC
Power Frequency	SA3610: 50/60 Hz, Single Phase SA3410: 50/60 Hz, Single Phase
Power Consumption	SA3610: 137.54 W (Access) 58.23 W (HDD Hibernation) SA3410: 136.15 W (Access) 58.48 W (HDD Hibernation)
British Thermal Unit	SA3610: 469.30 BTU/hr (Access) 198.68 BTU/hr (HDD Hibernation) SA3410: 464.56 BTU/hr (Access) 199.54 BTU/hr (HDD Hibernation)
Notes	SA3610: For more information on how power consumption is measured, refer to . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75&ring;C; Humidity: 58.2-61.8%. SA3410: For more information on how power consumption is measured, refer to . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75&ring;C; Humidity: 58.2-61.8%.
Temperature
Operating Temperature	SA3610: 0°C to 35°C (32°F to 95°F) SA3410: 0°C to 35°C (32°F to 95°F)
Storage Temperature	SA3610: -20°C to 60°C (-5°F to 140°F) SA3410: -20°C to 60°C (-5°F to 140°F)
Relative Humidity	SA3610: 5% to 95% RH SA3410: 5% to 95% RH
Certification
SA3610: FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL SA3410: FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty
SA3610: 5 Years SA3410: 5 Years
Notes	SA3610: The warranty period starts from the purchase date as stated on your purchase receipt. SA3410: The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
SA3610: RoHS Compliant SA3410: RoHS Compliant
Packaging Content
SA3610: Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1 SA3410: Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
SA3610: DDR4 ECC RDIMM: / Expansion Units: 3.5' SAS HDD: 3.5' SATA HDD: 2.5' SATA SSD: M.2 SSD & 10GbE Combo Adapter Card: M.2 SSD Adapter Card: 25GbE Network Interface Card: 10GbE Network Interface Card: / / Rail Kit Sliding: Surveillance Device License Pack SA3410: DDR4 ECC RDIMM: / Expansion Units: 3.5' SAS HDD: 3.5' SATA HDD: 2.5' SATA SSD: M.2 SSD & 10GbE Combo Adapter Card: M.2 SSD Adapter Card: 25GbE Network Interface Card: 10GbE Network Interface Card: / / Rail Kit Sliding: Surveillance Device License Pack
Notes	SA3610: Installing memory modules with differing capacities is not recommended. Check the of your Synology product for recommended memory configurations. SA3410: Installing memory modules with differing capacities is not recommended. Check the of your Synology product for recommended memory configurations.
Download Center & Compatibility
SA3610 SA3410

Maximum Single Volume Size*	SA3610: 1 PB (64 GB memory required, for RAID 6 groups only) 200 TB (32 GB memory required) 108 TB SA3410: 1 PB (64 GB memory required, for RAID 6 groups only) 200 TB (32 GB memory required) 108 TB
Maximum Internal Volume Number	SA3610: 256 SA3410: 256
SSD Read / Write Cache	SA3610: Yes SA3410: Yes
SSD TRIM	SA3610: Yes SA3410: Yes
RAID Group	SA3610: Yes SA3410: Yes
Supported RAID Type	SA3610: RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 SA3410: RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	SA3610: Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6 SA3410: Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	SA3610: RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 SA3410: RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	SA3610: RAID F1 JBOD RAID 5 RAID 6 SA3410: RAID F1 JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type	SA3610: RAID F1 RAID 1 RAID 5 RAID 6 RAID 10 SA3410: RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Notes	SA3610: Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. When Peta Volume is enabled, validated services and packages are required. Please refer to for more information on limitations. Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB). SA3410: Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. When Peta Volume is enabled, validated services and packages are required. Please refer to for more information on limitations. Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
File Protocol	SA3610: SMB/AFP/NFS/FTP/WebDAV SA3410: SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections	SA3610: 4,000 SA3410: 4,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	SA3610: 10,000 SA3410: 10,000
Windows Access Control List (ACL) Integration	SA3610: Yes SA3410: Yes
NFS Kerberos Authentication	SA3610: Yes SA3410: Yes
Notes	SA3610: Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed. SA3410: Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Maximum Local User Accounts	SA3610: 16,000 SA3410: 16,000
Maximum Local Groups	SA3610: 512 SA3410: 512
Maximum Shared Folder	SA3610: 512 SA3410: 512
Maximum Shared Folder Sync Tasks	SA3610: 32 SA3410: 32
Maximum Hybrid Share Folders	SA3610: 30 SA3410: 30
Data & Folder Backup	SA3610: Yes SA3410: Yes
Entire System Backup	SA3610: Yes SA3410: Yes
Notes	SA3610: DSM version requirement to support entire system backup: DSM7.2 or later. SA3410: DSM version requirement to support entire system backup: DSM7.2 or later.
Synology High Availability	SA3610: Yes SA3410: Yes
SA3610: Yes SA3410: Yes
Syslog Events per Second	SA3610: 3,000 SA3410: 3,000
Virtualization
VMware vSphere with VAAI	SA3610: Yes SA3410: Yes
Windows Server 2022	SA3610: Yes SA3410: Yes
Citrix Ready	SA3610: Yes SA3410: Yes
OpenStack	SA3610: Yes SA3410: Yes
Networking Protocols	SA3610: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV SA3410: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	SA3610: Google Chrome Firefox Microsoft Edge Safari SA3410: Google Chrome Firefox Microsoft Edge Safari
Supported Language	SA3610: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, &Rcy;&ucy;&scy;&scy;&kcy;&icy;&jcy;, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, &Ccaron;eský, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 SA3410: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, &Rcy;&ucy;&scy;&scy;&kcy;&icy;&jcy;, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, &Ccaron;eský, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes	SA3610: For an updated list of supported browser versions, check the . SA3410: For an updated list of supported browser versions, check the .
Antivirus by McAfee (Trial)
SA3610: Yes SA3410: Yes
SA3610: Yes SA3410: Yes
SA3610: Yes SA3410: Yes
Maximum Number of Concurrent Users	SA3610: 600 SA3410: 500
Notes	SA3610: Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections. SA3410: Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
SA3610: Yes SA3410: Yes
Download Station
SA3610: Yes SA3410: Yes
Maximum Concurrent Download Tasks	SA3610: 80 SA3410: 80
SA3610: Yes SA3410: Yes
Maximum iSCSI Target Number	SA3610: 256 SA3410: 256
Maximum LUN	SA3610: 512 SA3410: 512
LUN Clone/Snapshot, Windows ODX	SA3610: Yes SA3410: Yes
SA3610: Yes SA3410: Yes
Free Email Accounts	SA3610: 5 SA3410: 5
Maximum Number of Concurrent Users	SA3610: 1,600 SA3410: 1,100
Maximum Server Performance	SA3610: 5,040,000 emails per day, approx. 151 GB SA3410: 4,312,000 emails per day, approx. 131 GB
Notes	SA3610: Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only). SA3410: Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
SA3610: Yes SA3410: Yes
DLNA Compliance	SA3610: Yes SA3410: Yes
SA3610: Yes SA3410: Yes
Facial Recognition	SA3610: Yes SA3410: Yes
SA3610: Yes SA3410: Yes
Maximum Snapshots per Shared Folder	SA3610: 1,024 SA3410: 1,024
Maximum of System Snapshots	SA3610: 65,536 SA3410: 65,536
SA3610: Yes SA3410: Yes
Maximum IP cam	SA3610: 128 (including 2 Free License) SA3410: 128 (including 2 Free License)
Total FPS (H.264)	SA3610: 3840 FPS @ 720p (1280x720) 2800 FPS @ 1080p (1920x1080) 1230 FPS @ 3M (2048x1536) 800 FPS @ 5M (2591x1944) 600 FPS @ 4K (3840x2160) SA3410: 3840 FPS @ 720p (1280x720) 2800 FPS @ 1080p (1920x1080) 1200 FPS @ 3M (2048x1536) 700 FPS @ 5M (2591x1944) 500 FPS @ 4K (3840x2160)
Total FPS (H.265)	SA3610: 3840 FPS @ 720p (1280x720) 3840 FPS @ 1080p (1920x1080) 2700 FPS @ 3M (2048x1536) 1500 FPS @ 5M (2591x1944) 1120 FPS @ 4K (3840x2160) SA3410: 3840 FPS @ 720p (1280x720) 3840 FPS @ 1080p (1920x1080) 2400 FPS @ 3M (2048x1536) 1300 FPS @ 5M (2591x1944) 800 FPS @ 4K (3840x2160)
Notes	SA3610: Maximum supported frames per second can be increased on the SA3610 by adding one expansion unit. For detailed figures, please refer to . Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present. SA3410: Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
SA3610: Yes SA3410: Yes
Recommended Number of Concurrent Sync Clients	SA3610: 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) SA3410: 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files	SA3610: 50,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above) SA3410: 50,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)
Notes	SA3610: Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing. SA3410: Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
SA3610: Yes SA3410: Yes
Maximum Users	SA3610: 3,400 SA3410: 3,400
Notes	SA3610: Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM SA3410: Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
SA3610: Yes SA3410: Yes
SA3610: Yes SA3410: Yes
Recommended Virtual Machine Instances	SA3610: 24 SA3410: 16
Recommended Virtual DSM Number	SA3610: 24 (including 1 Free License) SA3410: 16 (including 1 Free License)
Notes	SA3610: The specifications vary depending on system configuration and memory size. SA3410: The specifications vary depending on system configuration and memory size.
SA3610: Yes SA3410: Yes
Maximum Connections	SA3610: 60 SA3410: 60
Download Center & Compatibility
SA3610 SA3410

Hardware Specifications	SA3610	SA3410
CPU	CPU Model	Intel Xeon D-1567	Intel Xeon D-1541
CPU Quantity	1	1
CPU Architecture	64-bit	64-bit
CPU Frequency	12-core 2.1 (base) / 2.7 (turbo) GHz	8-core 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory	System Memory	16 GB DDR4 ECC RDIMM	16 GB DDR4 ECC RDIMM
Memory Module Pre-installed	16 GB (16 GB x 1)	16 GB (16 GB x 1)
Total Memory Slots	4	4
Maximum Memory Capacity	128 GB (32 GB x 4)	128 GB (32 GB x 4)
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. Installing memory modules with differing capacities is not recommended. Check the of your Synology product for recommended memory configurations.
Storage	Drive Bays	12	12
Maximum Drive Bays with Expansion Unit	96 (RX1222sas x 7)	96 (RX1222sas x 7)
Compatible Drive Type*	3.5' SAS HDD 2.5' SAS SSD 3.5' SATA HDD 2.5' SATA SSD	3.5' SAS HDD 2.5' SAS SSD 3.5' SATA HDD 2.5' SATA SSD
Hot Swappable Drive*
Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the . The use of non-validated components may limit certain functionality and result in data loss and system instability. 'Compatible drive type' indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)	4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port	2 (with Link Aggregation / Failover support)	2 (with Link Aggregation / Failover support)
Out-of-Band Management LAN Port	1	1
Max. number of LAN ports	15	15
USB 3.2 Gen 1 Port*	2	2
Expansion Port	1	1
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	2 x Gen3 x8 slots (x8 link)	2 x Gen3 x8 slots (x8 link)
File System	Internal Drives	Btrfs EXT4	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Form Factor (RU)	2U	2U
Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm	88 mm x 482 mm x 724 mm
Weight	14.5 kg	14.5 kg
Rack Installation Support*	4-post 19' rack (Synology Rail Kit - )	4-post 19' rack (Synology Rail Kit - )
Notes	The rail kit is sold separately
Others	System Fan	80 mm x 80 mm x 4 pcs	80 mm x 80 mm x 4 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode	Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level*	49.8 dB(A)	49.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter	550 W	550 W
Redundant Power Supply
AC Input Power Voltage	100V to 240V AC	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase	50/60 Hz, Single Phase
Power Consumption	137.54 W (Access) 58.23 W (HDD Hibernation)	136.15 W (Access) 58.48 W (HDD Hibernation)
British Thermal Unit	469.30 BTU/hr (Access) 198.68 BTU/hr (HDD Hibernation)	464.56 BTU/hr (Access) 199.54 BTU/hr (HDD Hibernation)
Notes	For more information on how power consumption is measured, refer to . Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75&ring;C; Humidity: 58.2-61.8%.
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)	0°C to 35°C (32°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty	5 Years	5 Years
Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment	RoHS Compliant	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
DDR4 ECC RDIMM: / Expansion Units: 3.5' SAS HDD: 3.5' SATA HDD: 2.5' SATA SSD: M.2 SSD & 10GbE Combo Adapter Card: M.2 SSD Adapter Card: 25GbE Network Interface Card: 10GbE Network Interface Card: / / Rail Kit Sliding: Surveillance Device License Pack	DDR4 ECC RDIMM: / Expansion Units: 3.5' SAS HDD: 3.5' SATA HDD: 2.5' SATA SSD: M.2 SSD & 10GbE Combo Adapter Card: M.2 SSD Adapter Card: 25GbE Network Interface Card: 10GbE Network Interface Card: / / Rail Kit Sliding: Surveillance Device License Pack
Notes	Installing memory modules with differing capacities is not recommended. Check the of your Synology product for recommended memory configurations.
Download Center & Compatibility

DSM Specifications	SA3610	SA3410
Maximum Single Volume Size*	1 PB (64 GB memory required, for RAID 6 groups only) 200 TB (32 GB memory required) 108 TB	1 PB (64 GB memory required, for RAID 6 groups only) 200 TB (32 GB memory required) 108 TB
Maximum Internal Volume Number	256	256
SSD Read / Write Cache
SSD TRIM
RAID Group
Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6	RAID F1 JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. When Peta Volume is enabled, validated services and packages are required. Please refer to for more information on limitations. Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).
File Protocol	SMB/AFP/NFS/FTP/WebDAV	SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections	4,000	4,000
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	10,000	10,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Maximum Local User Accounts	16,000	16,000
Maximum Local Groups	512	512
Maximum Shared Folder	512	512
Maximum Shared Folder Sync Tasks	32	32
Maximum Hybrid Share Folders	30	30
Data & Folder Backup
Entire System Backup
Notes	DSM version requirement to support entire system backup: DSM7.2 or later.
Synology High Availability
Syslog Events per Second	3,000	3,000
Virtualization	VMware vSphere with VAAI
Windows Server 2022
Citrix Ready
OpenStack
Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Google Chrome Firefox Microsoft Edge Safari	Google Chrome Firefox Microsoft Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, &Rcy;&ucy;&scy;&scy;&kcy;&icy;&jcy;, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, &Ccaron;eský, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, &Rcy;&ucy;&scy;&scy;&kcy;&icy;&jcy;, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, &Ccaron;eský, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes	For an updated list of supported browser versions, check the .
Add-on Packages
Antivirus by McAfee (Trial)
Maximum Number of Concurrent Users	600	500
Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
Download Station
Maximum Concurrent Download Tasks	80	80
Maximum iSCSI Target Number	256	256
Maximum LUN	512	512
LUN Clone/Snapshot, Windows ODX
Free Email Accounts	5	5
Maximum Number of Concurrent Users	1,600	1,100
Maximum Server Performance	5,040,000 emails per day, approx. 151 GB	4,312,000 emails per day, approx. 131 GB
Notes	Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
DLNA Compliance
Facial Recognition
Maximum Snapshots per Shared Folder	1,024	1,024
Maximum of System Snapshots	65,536	65,536
Maximum IP cam	128 (including 2 Free License)	128 (including 2 Free License)
Total FPS (H.264)	3840 FPS @ 720p (1280x720) 2800 FPS @ 1080p (1920x1080) 1230 FPS @ 3M (2048x1536) 800 FPS @ 5M (2591x1944) 600 FPS @ 4K (3840x2160)	3840 FPS @ 720p (1280x720) 2800 FPS @ 1080p (1920x1080) 1200 FPS @ 3M (2048x1536) 700 FPS @ 5M (2591x1944) 500 FPS @ 4K (3840x2160)
Total FPS (H.265)	3840 FPS @ 720p (1280x720) 3840 FPS @ 1080p (1920x1080) 2700 FPS @ 3M (2048x1536) 1500 FPS @ 5M (2591x1944) 1120 FPS @ 4K (3840x2160)	3840 FPS @ 720p (1280x720) 3840 FPS @ 1080p (1920x1080) 2400 FPS @ 3M (2048x1536) 1300 FPS @ 5M (2591x1944) 800 FPS @ 4K (3840x2160)
Notes	Maximum supported frames per second can be increased on the SA3610 by adding one expansion unit. For detailed figures, please refer to . Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.	Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Recommended Number of Concurrent Sync Clients	2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)	2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)	50,000,000 (applies to files indexed or hosted by . For file access through other standard protocols, refer to the File Services section above)
Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Maximum Users	3,400	3,400
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Recommended Virtual Machine Instances	24	16
Recommended Virtual DSM Number	24 (including 1 Free License)	16 (including 1 Free License)
Notes	The specifications vary depending on system configuration and memory size.
Maximum Connections	60	60
Download Center & Compatibility

Find anything you need

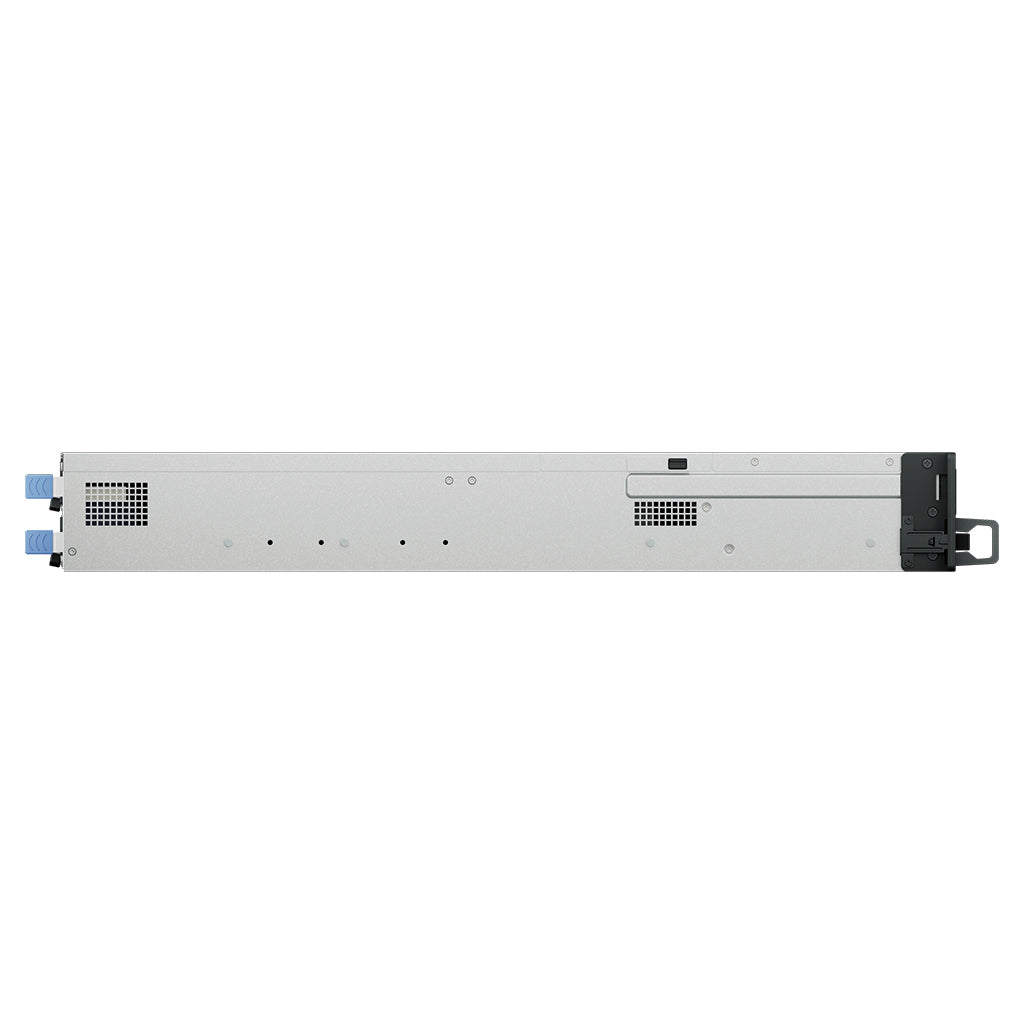

Synology SA3410

Synology SA3410

Description & Specifications

When scalability meets performance

Fast and reliable

Expand and adjust

Host core applications

Flexibly expand storage capacity

Networking capabilities

Reliable and dependable

Versatile data storage

File server

Backup repository

Business application platform

File server

Share and sync files with an all-in-one private cloud solution

Enforce company policies with Windows AD and SMB/NFS

Sync files across business sites

Reduce storage footprint

Backup repository

Bare-metal PC, server, and VM backup

Protect company SaaS accounts

Flexible off-site backup for shares and LUNs

Bare-metal backup for Synology systems

Business application platform

Collaborative tools for team productivity

Test out applications in a contained environment

Centralized monitoring and management

Central Management System (CMS)

Active Insight

Synology has got you covered

Backed by Synology hard drives

High Scalability SA3610 & SA3410

SA3610

SA3410

Notes:
