Description, Specifications for Synology RackStation RS1221+
- Plus Series 8-bay NAS for Offices and IT Pros
- Diskless 0 TB. Expandable further with Expansion
- Supports RAID SHR, 0,1,5,6,10
--
RackStation RS1221+?/?RS1221RP+
A powerful storage solution for businesses and IT enthusiasts with redundancy and service continuity features.
Compact and reliable
The RS1221+/RS1221RP+, at only 30 to 38 centimeters deep, is built for space-sensitive deployments. Boasting over 100K 4K random read IOPS and 2,315 MB/s sequential read1, the RS1221+/RS1221RP+ is equipped to handle heavy workloads in data-intensive environments. The RS1221RP+ additionally features an extra level of protection with redundant power supplies.
Compute
AMD Ryzen V1500B quad-core 2.2 GHz
Throughput
2,300 MB/s seq. read 100K 4K random read IOPS1
Memory
4 GB ECC DDR4 Up to 32 GB
Compact
30cm depth (38cm for RP model)
A compact design for space efficiency
The RS1221+ and its RX418 expansion units are designed to help you save space in compact deployments. At only 30 centimeters, half the length of a typical 2U unit, it fits perfectly snug onto 2-post or shallow rackmount enclosures. The RS1221RP+ with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.2
- Fits into shallow rackmount enclosures
- Easy-to-install on 2-post racks
Built for reliability
Redundant power
Reduce the chance that power disruptions on a single distribution channel or PDU causes data and service availability degradation.
Maximize service availability
When paired with another identical unit, Synology High Availability enables automatic minute-level failover between two clustered servers in the event of a server failure to minimize service downtime
Data integrity and protection
ECC memory and the Btrfs file system bring higher reliability and snapshot capabilities to help prevent data corruption and simplify data protection.
High performance storage for anything
Up to 2,315/1,147 MB/s sequential read and write throughput and over 100K/54K random read/write IOPS ensures ample performance for demanding workloads.1
4KB Random IOPS
Sequential Throughput
With room to grow with you
Easily upgrade the RS1221+/RS1221RP+ to match your usage environment, whether its for performance, faster networking, or higher storage capacity.3
SSD Cache
Boost read/write IOPS over HDD-only arrays by 16X or more with NVMe or SATA SSD Cache4
10GbE ready
Improve I/O with faster SFP+ or RJ-45 networking
Storage expansion
Expand to 12 drive bays with a RX418 expansion unit
Data protection solutions, built-in
Maximize data availability
Hyper Backup
A comprehensive backup and recovery solution for added data protection. Create backup destinations locally, on another Synology device, rsync servers, or cloud-based destinations, such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2 Storage, a dedicated backup destination for Synology devices. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage use.
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.
Protect your entire IT infrastructure
Protect your entire office with Active Backup
The Active Backup suite enables administrators to easily secure their entire IT infrastructure by backing up mission-critical data to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Benefit from deduplication, multiversioning to quickly jump back in time, and additional data efficiency optimizations for reduced bandwidth and storage use.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports mainstream virtualization solutions to enhance work efficiency with an easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments
Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
SATA : 3.5 HDD HAT5300
NVMe : M.2 SSD SNV3000
SATA : 2.5 SSD SAT5200
Powered by Synology DSM
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.
Instantly access your NAS files across multiple devices whenever you want, wherever you are.
Conveniently manage your fleet of Synology NAS from a centralized console.
Complete surveillance solution for recording, monitoring, and management.
Satisfy all team collaboration needs behind the safety of your own private cloud with Synology Office, Calendar, and Chat.
We have you covered
RS1221+/RS1221RP+ is backed by Synologys three-year hardware warranty. An optional two-year extended warranty that extends coverage to five years is available in select regions.

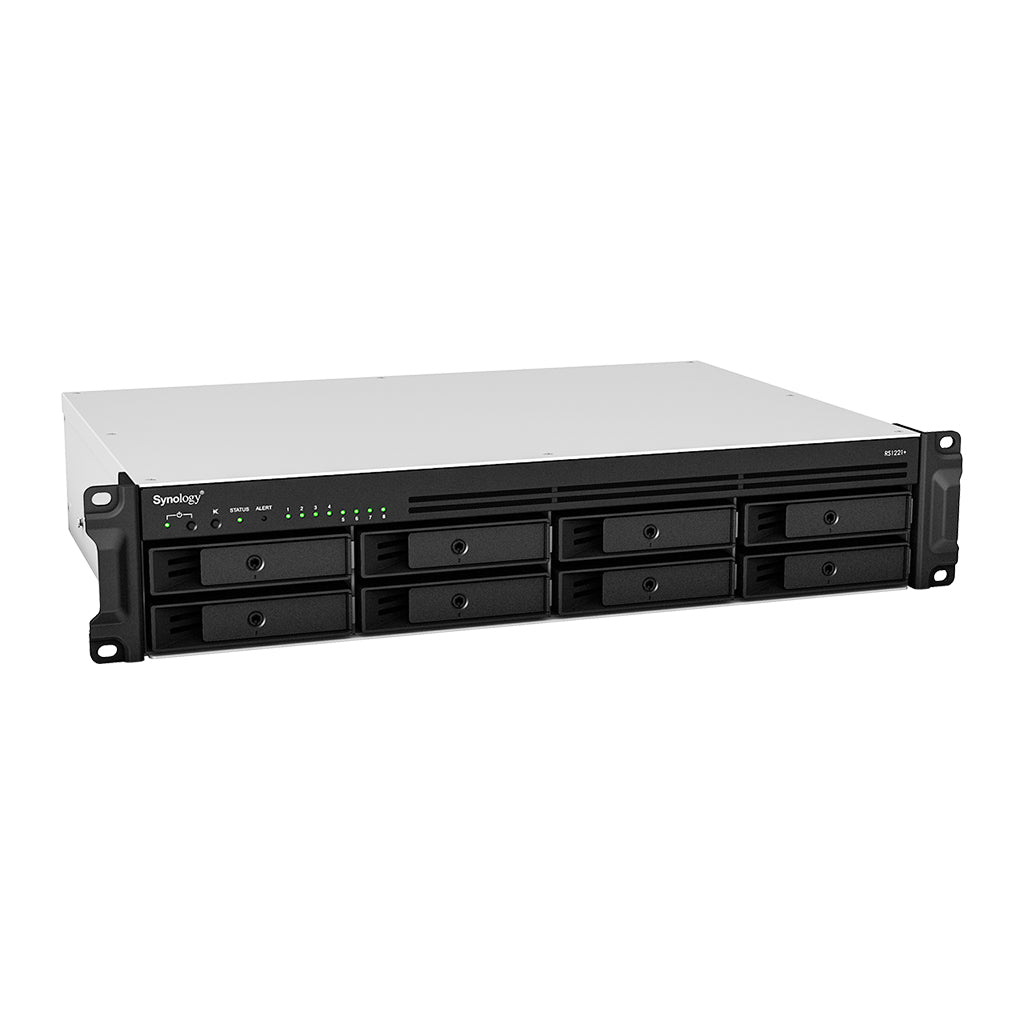

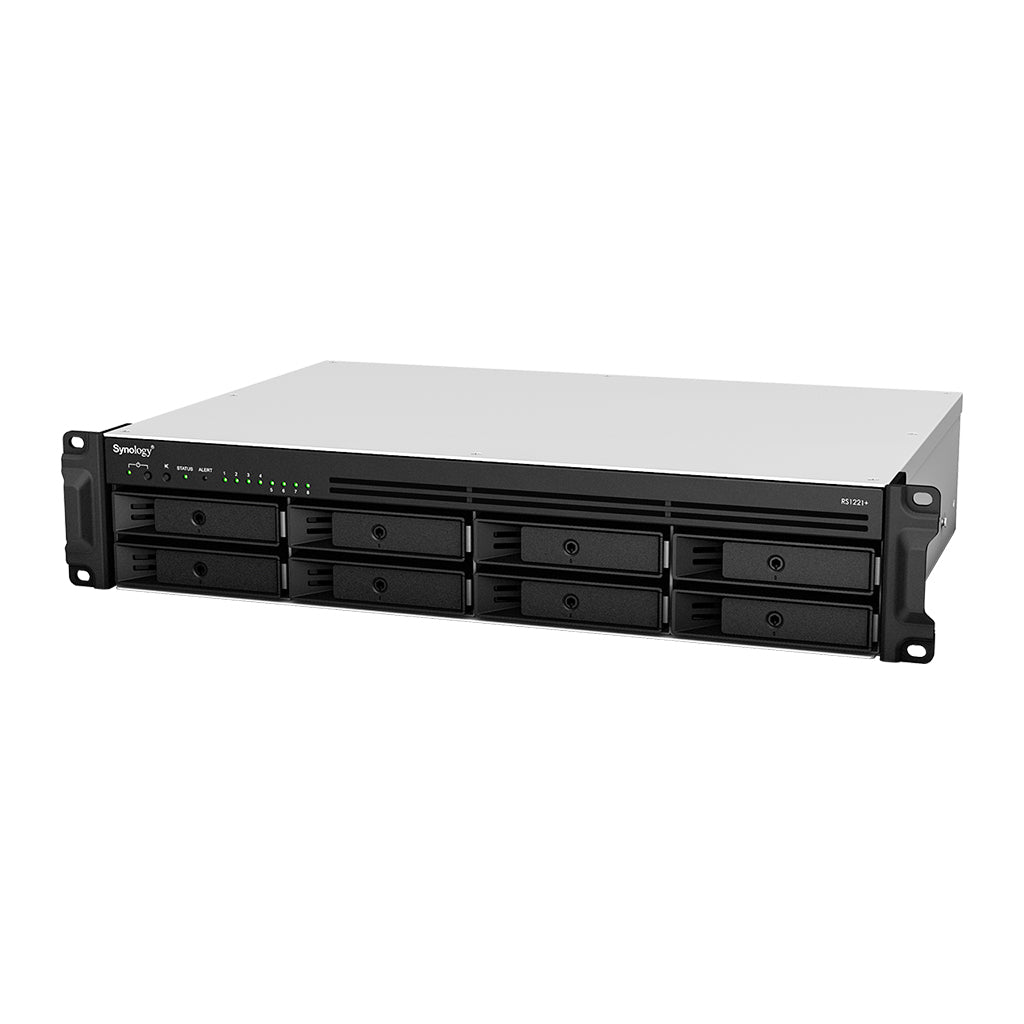

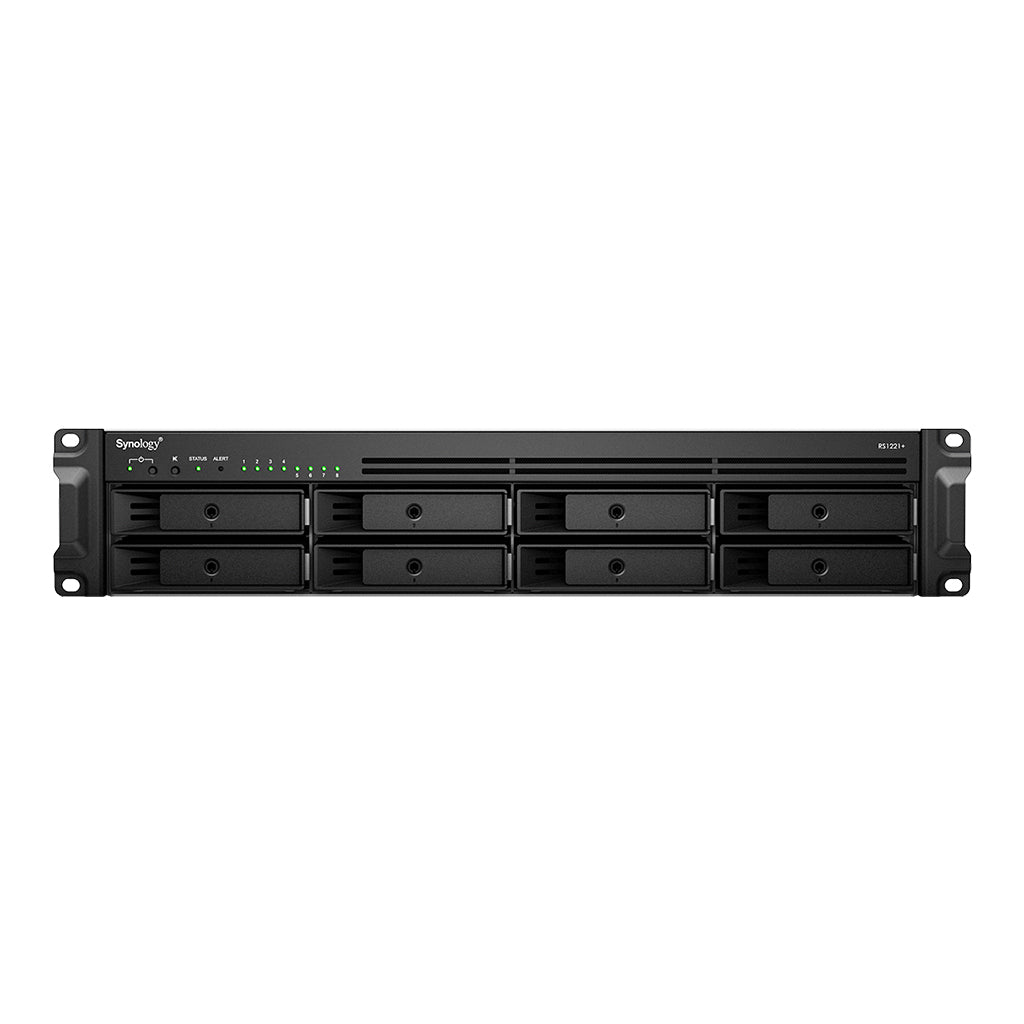

RackStation RS1221+
- 1 Power indicator
- 2 Power button
- 3 Alert Off Button
- 4 Status indicator
- 5 Alert indicator
- 6 Drive status indicator
- 7 Drive tray
- 8 System fan
- 9 PCIe expansion slot
- 10 Reset button
- 11 USB 3.2 Gen 1 port
- 12 1GbE RJ-45 port
- 13 Expansion port
- 14 Console port
- 15 Power port
RackStation RS1221RP+
- 1 Power indicator
- 2 Power button
- 3 Alert Off Button
- 4 Status indicator
- 5 Alert indicator
- 6 Drive status indicator
- 7 Drive tray
- 8 System fan
- 9 PCIe expansion slot
- 10 Reset button
- 11 USB 3.2 Gen 1 port
- 12 1GbE RJ-45 port
- 13 Expansion port
- 14 Console port
- 15 Power port
- 16 PSU Indicators & Alert Off Buttons
Specifications
CPU |
CPU Model | AMD Ryzen V1500B |
---|---|---|
CPU Architecture | 64-bit | |
CPU Frequency | 4-core 2.2 GHz | |
Hardware Encryption Engine (AES-NI) | ||
Memory |
System Memory | 4 GB DDR4 ECC SODIMM |
Memory Module Pre-installed | 4 GB (4 GB x 1) | |
Total Memory Slots | 2 | |
Maximum Memory Capacity | 32 GB (16 GB x 2) | |
Notes |
|
|
Storage |
Drive Bays | 8 |
Maximum Drive Bays with Expansion Unit | 12 (RX418 x 1) | |
Compatible Drive Type* (See all supported drives) |
|
|
Maximum Single Volume Size* | 108 TB | |
Hot Swappable Drive | ||
Notes |
|
|
External Ports |
RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
USB 3.2 Gen 1 Port* | 2 | |
eSATA Port | 1 | |
Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
PCIe |
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
File System |
Internal Drives |
|
External Drives |
|
|
Notes | exFAT Access is purchased separately in Package Center. | |
Appearance |
Form Factor (RU) | 2U |
Size (Height x Width x Depth) | RS1221+ :88 mm x 482 mm x 306.6 mmRS1221RP+ :88 mm x 482 mm x 407.5 mm | |
Weight | RS1221+ :6.9 kgRS1221RP+ :11.7 kg | |
Rack Installation Support* | RS1221+ :
|
|
Notes | The rail kit is sold separately | |
Others |
System Fan | 80 mm x 80 mm x 2 pcs |
Fan Speed Mode |
|
|
Power Recovery | ||
Noise Level* | RS1221+ :25.2 dB(A)RS1221RP+ :40 dB(A) | |
Scheduled Power On / Off | ||
Wake on LAN / WAN | ||
Power Supply Unit / Adapter | RS1221+ :250 WRS1221RP+ :350 W | |
Redundant Power Supply | ||
AC Input Power Voltage | 100 V to 240 V AC | |
Power Frequency | 50/60 Hz, Single Phase | |
Power Consumption* | RS1221+ :49.89 W (Access) 22.64 W (HDD Hibernation) RS1221RP+ :61.94 W (Access) 29.98 W (HDD Hibernation) |
|
British Thermal Unit | RS1221+ :170.23 BTU/hr (Access) 77.25 BTU/hr (HDD Hibernation) RS1221RP+ :211.35 BTU/hr (Access) 102.30 BTU/hr (HDD Hibernation) |
|
Notes |
|
|
Temperature |
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
Relative Humidity | 5% to 95% RH | |
Certification |
|
|
Warranty |
3-year hardware warranty, extendable to 5-year coverage - EW202 | |
Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment |
RoHS Compliant | |
Packaging Content |
RS1221+ :
|
|
Optional Accessories |
RS1221+ :
|
|
Notes | RS1221+ :
|
