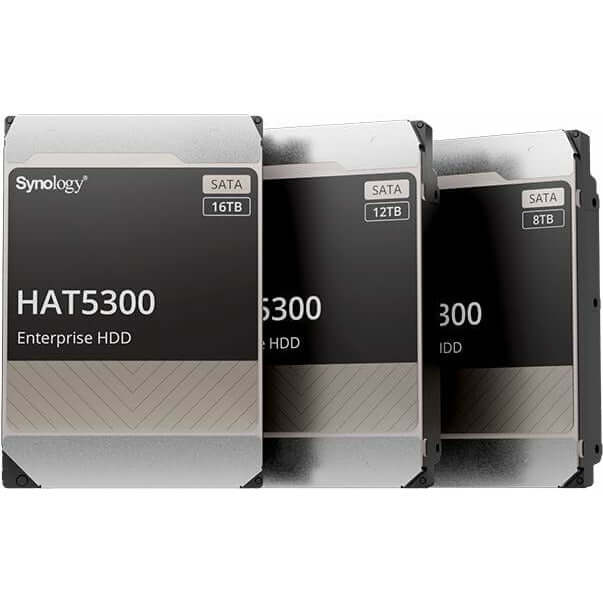

High-performance, reliable hard drives for Synology systems
Synology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware. With over 300,000 hours of in-house validation testing and backed by Synologys 5-year limited warranty1, the HAT5300 series brings unmatched reliability to Synology deployments.
Up to 274 MB/s sustained data transfer
Up to 23% faster sequential read in Synology NAS
Purpose-built for Synology servers running 24/7
Automatic firmware updates with DSM
Through testing and optimizations, HAT5300 series HDD has been tuned to deliver up to 23% higher sustained sequential read performance3 in demanding multi-user environments.
Over 300,000 hours of stress testing with Synology devices4 ensure that HAT5300 drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.
Stress tests : 1000+ cycles
Cumulative testing : 300K+ hours
Automatic firmware updates through DSM mean that HAT5300 drives always benefit from the latest enhancements.
HAT5300 series HDD is backed by a 2.5 million hour MTTF5 rating, workload support of 550 TB per year, and persistent write cache technology to minimize data corruption in the event of sudden power loss.
MTTF rating : 2.5 Million hour
Workload Support : 550TB/year
At Synology, we are committed to product innovation and quality. HAT5300 drives are backed by a 5-year limited warranty that includes technical support and hardware replacement services to maximize your return on investment.
|
Hardware Specifications |
HAT5300-8T |
HAT5300-12T |
HAT5300-16T |
|
|---|---|---|---|---|
| General | Capacity | 8 TB | 12 TB | 16 TB |
| Form Factor | 3.5" | 3.5" | 3.5" | |
| Interface | SATA 6 Gb/s | SATA 6 Gb/s | SATA 6 Gb/s | |
| Sector Size | 512e | 512e | 512e | |
| Performance | Rotational Speed | 7,200 rpm | 7,200 rpm | 7,200 rpm |
| Interface Speed | 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s | 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s | 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s | |
| Buffer Size | 256 MiB | 256 MiB | 512 MiB | |
| Maximum Sustained Data Transfer Speed (Typ.) | 230 MiB/s | 242 MiB/s | 262 MiB/s | |
| Reliability | Mean Time to Failure (MTTF) | 2.5 million hours | 2.5 million hours | 2.5 million hours |
| Workload Rating | 550 TB Transferred per Year | 550 TB Transferred per Year | 550 TB Transferred per Year | |
| Warranty | 5 Years | 5 Years | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |||
| Power Consumption | Supply Voltage | 12 V (± 10%) / 5 V (+10/-7%) | 12 V (± 10%) / 5 V (+10/-7%) | 12 V (± 10%) / 5 V (+10/-7%) |
| Active Idle (Typ.) | 6.38 W | 4.25 W | 4.00 W | |
| Random Read / Write (4KB Q1) (Typ.) | 9.10 W | 7.83 W | 7.63 W | |
| Notes | Power consumption may differ according to configurations and platforms. | |||
| Temperature | Operating | 5°C to 60°C (41°F to 140°F) | 5°C to 60°C (41°F to 140°F) | 5°C to 60°C (41°F to 140°F) |
| Non-operating | -40°C to 70°C (-40°F to 158°F) | -40°C to 70°C (-40°F to 158°F) | -40°C to 70°C (-40°F to 158°F) | |
| Shock | Operating | 686 m/s2 {70 G} (2 ms duration) | 686 m/s2 {70 G} (2 ms duration) | 686 m/s2 {70 G} (2 ms duration) |
| Non-operating | 2,450 m/s2 {250 G} (2 ms duration) | 2,450 m/s2 {250 G} (2 ms duration) | 2,450 m/s2 {250 G} (2 ms duration) | |
| Vibration | Operating | 7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz) | 7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz) | 7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz) |
| Non-operating | 29.4 m/s2 {3.0 G} (5 to 500 Hz) | 29.4 m/s2 {3.0 G} (5 to 500 Hz) | 29.4 m/s2 {3.0 G} (5 to 500 Hz) | |
| Altitude | Operating | -305 m to 3,048 m | -305 m to 3,048 m | -305 m to 3,048 m |
| Non-operating | -305 m to 12,192 m | -305 m to 12,192 m | -305 m to 12,192 m | |
| Relative Humidity | Operating | 5% to 90% R.H. (No condensation) | 5% to 90% R.H. (No condensation) | 5% to 90% R.H. (No condensation) |
| Non-operating | 5% to 95% R.H. (No condensation) | 5% to 95% R.H. (No condensation) | 5% to 95% R.H. (No condensation) | |
| Others | Size (Height x Width x Depth) | 26.1 mm x 101.85 mm x 147 mm | 26.1 mm x 101.85 mm x 147 mm | 26.1 mm x 101.85 mm x 147 mm |
| Weight | 770 g | 720 g | 720 g | |
| Certification |
|
|
|
|
