Achieve outstanding network performance with minimal effort

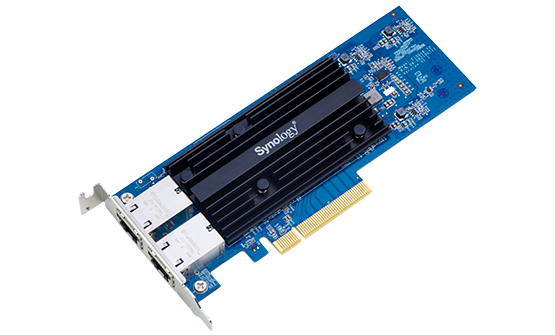

Enjoy a smooth migration to high-speed 10Gbps Ethernet. E10G18-T2 delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks. It supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x with dual RJ-45 connectors, providing a total data rate of 20Gbps using standard CAT6 or better UTP cabling connections. Features such as Link Aggregation, Jumbo Frame, TSO, and TCP/UDP/IP Checksum offloading satisfy most workloads requiring high performance, making E10G18-T2 an ideal and economical solution for 10Gbps networking adoption.
5-year warranty
Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.
|
Hardware Specifications
|
||
|---|---|---|
|
General
|
||
|
General
|
Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low Profile and Full Height | |
| Size (Height x Width x Depth) | 170.6 mm x 68.9 mm x 13.6 mm | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
|
Network
|
||
|
Network
|
IEEE Specification Compliance |
|
| Data Transfer Rates | 10 Gbps | |
| Network Operation Mode | Full Duplex | |
| Supported Features |
|
|
|
Compatibility
|
||
|
Applied Models
|
||
|
Applied Models
|
|
|
| Notes | DSM version requirement: 6.2.1-23824 or later version |
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our for professional advice.
