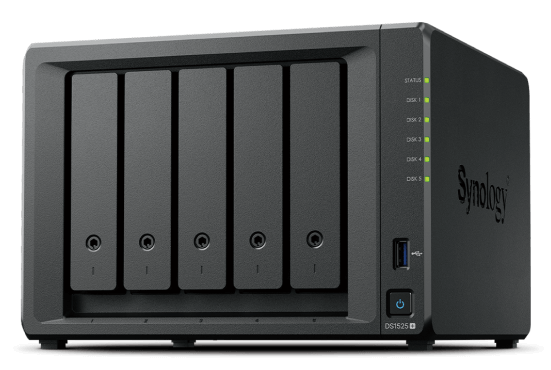

Description, Specifications for Synology DiskStation DS1525+
The Synology DiskStation DS1525+ is a versatile all-purpose data hub designed for small and medium-sized businesses. With five drive bays, built-in 2.5GbE ports, optional 10GbE, and M.2 NVMe cache slots, it delivers outstanding speed and flexibility. It can scale up to 300 TB of raw storage using expansion units, making it ideal for private cloud setups, multi-site synchronization, comprehensive backups, surveillance, and application testing. Whether you need fast file access, endpoint backup, or a smart surveillance platform, the DS1525+ is built to adapt to your growing needs.
Key Features
- 5 drive bays, expandable up to 15 with two DX525 expansion units
- Built-in dual 2.5GbE ports with optional 10GbE upgrade
- Up to 1,181 MB/s read and 1,180 MB/s write sequential performance
- 2 M.2 NVMe slots for SSD caching
- Supports Docker containers, virtual machines, and Virtual DSM
- Comprehensive data backup for PCs, servers, VMs, SaaS, and more
- Surveillance support for over 8,700 IP camera models
- Central management and monitoring via Synology CMS and Active Insight
Technical Specifications
- CPU: AMD Ryzen V1500B, quad-core, 2.2 GHz, 64-bit
- Memory: 8 GB DDR4 ECC SODIMM (expandable to 32 GB)
- Drive Bays: 5 x 3.5" SATA HDD or 2.5" SATA SSD, expandable to 15 bays
- M.2 Slots: 2 x M.2 2280 NVMe for SSD cache
- LAN Ports: 2 x 2.5GbE RJ-45
- USB Ports: 2 x USB 3.2 Gen 1
- PCIe Slot: 1 x Gen3 x2 network upgrade slot
- Expansion Ports: 2 x USB Type-C for DX525 units
- System Fans: 2 x 92 mm
- Power Supply: 120 W adapter
- Power Consumption: 44.56 W (access), 13.63 W (HDD hibernation)
- Noise Level: 22.60 dB(A)
- Operating Temperature: 0°C to 40°C
- Dimensions: 166 mm x 230 mm x 223 mm
- Weight: 2.67 kg
- Warranty: 3 years, extendable to 5 years
Package Contents
- Main Unit x 1
- Accessory Pack x 1
- AC Power Adapter x 1
- AC Power Cord x 1
- RJ-45 LAN Cable x 2
Optional Accessories
- DDR4 ECC SODIMM: D4ES03-8G, D4ES03-16G
- Expansion Units: DX525
- Enterprise Series 3.5" SATA HDD: HAT5300 Series
- Plus Series 3.5" SATA HDD: HAT3300 Series
- Enterprise Series 2.5" SATA SSD: SAT5200 Series
- Enterprise Series M.2 2280 NVMe SSD: SNV3400 Series
- 10GbE Network Upgrade Module: E10G22-T1-Mini
