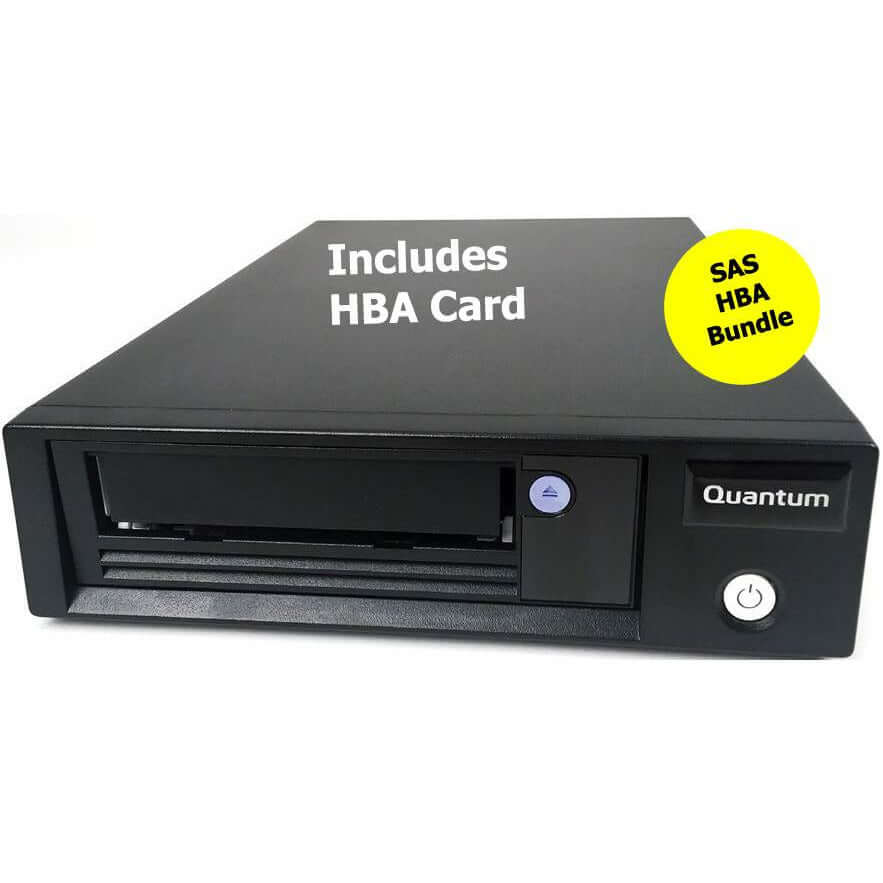

Description, Specifications for Quantum LTO-7 External SAS Bundle Drive
- LTO-7 Ultrium Tape drive
- SAS Interface
- External Desktop/Tabletop
- Includes DATASTOR Shield Single Server backup software with deduplication
- Includes HBA SAS Card
--
Security. Reliability. Performance.
As your long-term data storage grows, so does your need for a dependable and efficient way to keep it protected. Based on the world's leading tape technology, Quantum's LTO tape drives work seamlessly with Scalar tape libraries and automatically match the tape drive speed to that of the host, optimizing performance and increasing reliability. Plus, Quantum's LTO tape drives are easy to deploy and upgrade, making them perfect for small, mid-sized and corporate storage environments.
No One Can Ignore Data Protection
Backing up critical resources is crucial for every organization, no matter what the size of the budget or the IT staff. And its not just about doing backup. Data also has to be kept safe from ransomware and other malicious programs that can contaminate files stored on most of the systems that use spinning disk.
Site-loss protection is also critical for everyone, but that is something that is complex for smaller sites to support, especially if they have adopted a disk-based backup methodology.
Quantum LTO Drives Are the Answer
Quantums LTO tape drives deliver fast, reliable data protection at an affordable price. They offer backup speeds up to 2.7 TB per hour and can store up to 30 TB of data on a single cartridge. Quantum's LTO cartridges provide easily transportable backup storage for DR protection, and their AES 256-bit encryption makes sure that no one else can read your data. Their WORM-cartridge option provides an even higher level of security.
If youre looking for the simplest, easiest, and most affordable data protection of all, Quantum LTO drives come with LTFS. Thats the system that lets you drag and drop any files from your disk environment directly to LTO mediaand read it back againwithout having to buy or install any backup software.
Featured Benefits
Quantum's LTO tape drives deliver reliable data protection with tremendous capacity and performance at an affordable price. Quantum "Backup Ready" kit solutions allow you to go from box-to-backup in minutes with the highly reliable Quantum LTO tape drive, cable for external models, a cleaning cartridge and durable Quantum media.
Fast Backup and Restore
With performance up to 750 MB/sec (2.7 TB/hr) *.
*2.5:1 compression LTO-8, LTO-7 and LTO-6, 2:1 other LTO.
Drag and Drop Files in Open Format
Directly drag and drop files to LTO media using LTFS, no backup software needed.
Encryption Support
Secure protection with AES 256-bit hardware-based encryption standard.
High Capacity
Protect up to 30 TB* of data on each cartridge.
*2.5:1 compression LTO-8, LTO-7 and LTO-6, 2:1 other LTO.
Compliance Security
WORM (Write Once, Read Many) functionality with use of WORM cartridges.
Technical Specifications
DRIVE CAPACITY AND PERFORMANCE
Configurations:Internal bare, internal kit, tabletop kit, and 1U rack mount
Interface Connector Type: 6 Gb/sec SAS
SFF8482 with integrated power (internal)
SFF8088 (tabletop and rack)
Burst Transfer Rate (MB/sec): SAS (maximum)
600
Data Buffer Size:
LTO-8, LTO-7: 1 GB
LTO-6: 512 MB
LTO-5: 256 MB
BACKUP SOFTWARE
Included Software:DATASTOR Shield Single-Server Backup
Deduplication Rate:20:1 (typical)
Software Compatibility:Windows only
Backup Methods:Disk-to-disk-to-tape, disk-to-tape, archive-to-tape in native format
Upgradeable:Yes to multiple servers, SQL, Exchange, SharePoint, Bare Metal, Cloud, and other functionality
TAPE/FORMAT COMPATIBILITY
Media Read/Write
Media Read Only
LTO-8 Drive
LTO-8 (L8), LTO-8 WORM, LTO-7 (L7), LTO-7 WORM, LTO-7 (M8)
N/A
LTO-7 Drive
LTO-7 (L7), LTO-7 WORM, LTO-6 (L6), LTO-6 WORM
LTO-5 (L5), LTO-5 WORM
LTO-6 Drive
LTO-6 (L6), LTO-6 WORM, LTO-5 (L5), LTO-5 WORM
LTO-4 (L4), LTO-4 WORM
LTO-5 Drive
LTO-5 (L5), LTO-5 WORM, LTO-4 (L4), LTO-4 WORM
LTO-3 (L3), LTO-3 WORM
RELIABILITY
MTBF (hours):250,000 @ 100% duty cycle
MSBF:100,000 cycles
Load/Unload Life:80,000 cycles
Non-Recoverable Error Rate:
1 in 1 x 1019 bits (LTO-8, LTO-7 non-media error, clean drive)
1 in 1 1017 bits (LTO-5, LTO-6 non-media error, clean drive)
ENVIRONMENTAL
OPERATING
Temperature:50 F to 100 F (10 C to 38 C) @ 5 CFM
Humidity:
LTO-8, LTO-7: 20% to 80% (non-condensing)
LTO-6, LTO-5: 10% to 80% (non-condensing)
Altitude (maximum):
LTO-8, LTO-7: 10,000 ft (3,048 m)
LTO-6, LTO-5: 13,000 ft (4,000 m)
NON-OPERATING
Temperature:
LTO-8, LTO-7: -40 F to 140 F (-40 C to 60 C) excluding media
LTO-6, LTO-5: -40 F to 149 F (-40 C to 66 C) excluding media
Humidity:
LTO-8, LTO-7: 10% to 90% (non-condensing)
LTO-6, LTO-5: 10% to 95% (non-condensing)
Voltage (V):+5, +12
POWER CONSUMPTION (HALF-HEIGHT)
LTO-8
Idle: 11.0 Watts, Typical: 30 Watts, Peak: 42.0 Watts
LTO-7
Idle: 21.1 Watts, Typical: 32 Watts, Peak: 64.5 Watts
LTO-6
Idle: 13.2 Watts, Typical: 24.7 Watts, Peak: 69 Watts
LTO-5
Idle: 13.3 Watts, Typical: 23.7 Watts, Peak: 69 Watts
TAPE FORMAT
Format:LTO Ultrium 8, LTO Ultrium 7, LTO Ultrium 6, LTO Ultrium 5
Recording Density:
LTO-8: 20,579 KB/mm
LTO-7: 19,107 KB/mm
LTO-6, LTO-5: 15,143 KB/mm
Encoding Method:
LTO-8, LTO-7: 32 Channel 32/33 RLL
LTO-6, LTO-5: 16 Channel 32/33 RLL NPML
Data Compression:
LTO-8, LTO-7, LTO-6: 2.5:1
LTO-5: 2:1
COMPATIBILITY
Operating Systems:Microsoft Windows, Red Hat Linux, SUSE Linux, Mac OS
Software/Hardware:For the most up-to-date tested solutions, visitwww.quantum.com
TAPE
Cartridge Dimensions (L W H):4 in 4.15 in .85 in (102 mm 105.4 mm 21.5 mm)
Archive Storage:30 years
Durability:20,000 load/unload cycles
WARRANTY
Tape:Limited lifetime
Tape Drive:3 years limited with Rapid Exchange
MODEL NUMBERS AND DESCRIPTIONS
TC-L82AN-BR: LTO-8 HH, Internal, 6 Gb/sec SAS, 5.25 in, black, bare
TC-L82AN-EY: LTO-8 HH, Internal, 6 Gb/sec SAS, 5.25 in, black
TC-L82AN-EZ: LTO-8 HH, Internal, SAS HBA Bundle, 6 Gb/sec SAS, 5.25 in, black
TC-L82BN-AR: LTO-8 HH, Tabletop, 6 Gb/sec SAS, black
TC-L82BN-EZ: LTO-8 HH, Tabletop, SAS HBA Bundle, 6 Gb/sec SAS, black
TC-L83CN-AR: LTO-8 HH, Single, 1U Rack Mount, 6 Gb/sec SAS, black
TC-L82GN-BR: LTO-8 HH, Internal Drive Option for 1U Rack Mount, 6 Gb/sec SAS, black, bare
TC-L72AN-BR-C:LTO-7 HH, Internal, 6 Gb/sec SAS, 5.25 in, black, bare
TC-L72AN-EY-C:LTO-7 HH, Internal, 6 Gb/sec SAS, 5.25 in, black
TC-L72AN-EZ-C:LTO-7 HH, Internal, SAS HBA Bundle, 6 Gb/sec SAS, 5.25 in, black
TC-L72BN-AR-C:LTO-7 HH, Tabletop, 6 Gb/sec SAS, black
TC-L72BN-EZ-C:LTO-7 HH, Tabletop, SAS HBA Bundle, 6 Gb/sec SAS, black
TC-L73CN-AR-C:LTO-7 HH, Single, 1U Rack Mount, 6 Gb/sec SAS, black
TC-L72GN-BR-C :LTO-7 HH, Internal Drive Option for 1U Rack Mount, 6 Gb/sec SAS, black, bare
TC-L62AN-BR-C: LTO-6 HH, Internal, 6 Gb/sec SAS, 5.25 in, black, bare
TC-L62AN-EY-C: LTO-6 HH, Internal, 6 Gb/sec SAS, 5.25 in, black
TC-L62AN-EZ-C: LTO-6 HH, Internal, SAS HBA Bundle, 6 Gb/sec SAS, 5.25 in, black
TC-L62BN-AR-C: LTO-6 HH, Tabletop, 6 Gb/sec SAS, black
TC-L62BN-EZ-C: LTO-6 HH, Tabletop, SAS HBA Bundle, 6 Gb/sec SAS, black
TC-L62BN-EM-C: LTO-6 HH, Tabletop, SAS HBA and Media (5 pcs) Bundle, 6 Gb/sec SAS, black
TC-L63CN-AR-C: LTO-6 HH, Single, 1U Rack Mount, 6 Gb/sec SAS, black
TC-L62GN-BR-C: LTO-6 HH, Internal Drive Option for 1U Rack Mount, 6 Gb/sec SAS, black, bare
TC-L52AN-BR-C:LTO-5 HH, Internal, 6 Gb/sec SAS, 5.25 in, black, bare
TC-L52AN-EY-C:LTO-5 HH, Internal, 6 Gb/sec SAS, 5.25 in, black
TC-L52AN-EZ-C:LTO-5 HH, Internal, SAS HBA Bundle, 6 Gb/sec SAS, 5.25 in, black
TC-L52BN-AR-C:LTO-5 HH, Tabletop, 6 Gb/sec SAS, black
TC-L52BN-EZ-C:LTO-5 HH, Tabletop, SAS HBA Bundle, 6 Gb/sec SAS, black
TC-L52BN-EM-C:LTO-5 HH, Tabletop, SAS HBA and Media (5 pcs) Bundle, 6 Gb/sec SAS, black
TC-L53CN-AR-C:LTO-5 HH, Single, 1U Rack Mount, 6 Gb/sec SAS, black
TTC-L52GN-BR-C:LTO-5 HH, Internal Drive Option for 1U Rack Mount, 6 Gb/sec SAS, black, bare
