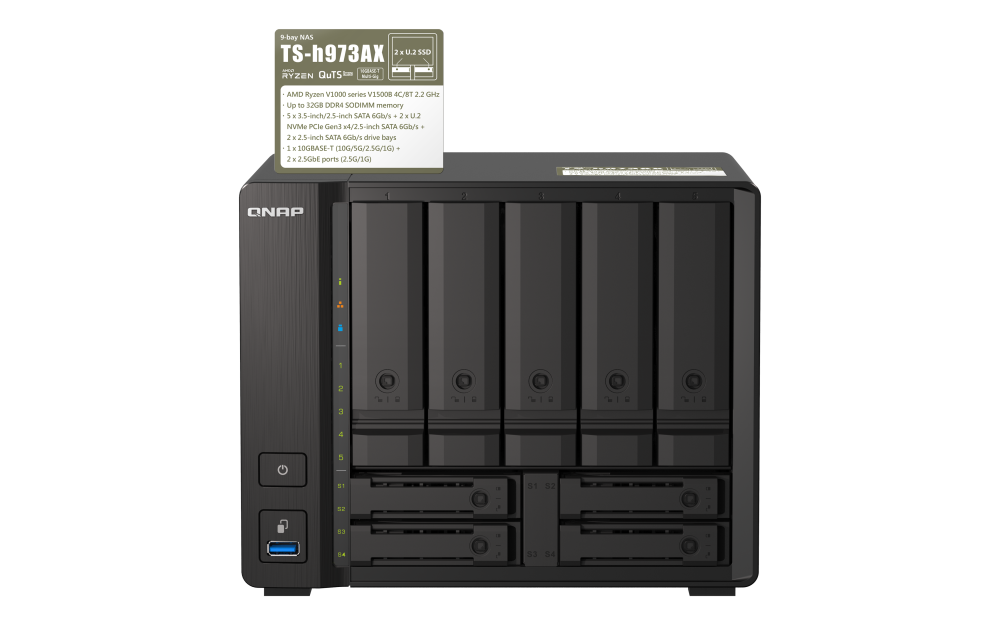

TS-h973AX Enhance business productivity using the quad-core 9-bay QuTS hero NAS that supports U.2 NVMe SSD and 10GbE/2.5GbE connectivity

Featuring an AMD Ryzen V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots (Slot 1 & 2 support both U.2 NVMe and SATA SSDs ), and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.

To run memory-intensive applications such as Virtualization Station, Q'center, Qsirch, QVR Center, Qsync, or Boxafe, please purchase TS-h973AX-32G model or upgrade the memory of TS-h973AX-8G to at least 16GB to ensure smooth system operation.

• Optimized SSD performance and lifespan

  Install high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or SATA 6Gb/s SSDs in the dedicated SSD slots for cache acceleration and improved random I/O.

• 10GbE/2.5GbE connectivity

  One 10GBASE-T Multi-Gig and two 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.

• SaaS backup and recovery

  Experience a business-class backup center, supporting backup/restore of cloud data and VMs (including Google Workspace, Microsoft 365, VMware and Hyper-V).

• Virtualization applications

  Host multiple virtual machines and containers to run a wide range of applications on the TS-h973AX.

• Cloud storage gateway

  Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

• Flexible storage expansion

  Flexibly scale your total storage capacity to match your business growth by connecting USB expansion enclosures (TR series JBOD).

Reivew: Very Good - Vergleich.org (Germany) (2025/02/01)

"The 9 Bay Quad-Core QuTS hero NAS enclosure from QNAP supports U.2 NVMe SSD and is in the mid-range of our comparison in terms of price. We were impressed by the numerous rear inputs and the extremely high computing power."

Rec.dk Recommended - Recordere.dk (Denmark) (2021.05.12)

"If you want a storage device works greatly and with 10 Gbps LAN connectivity, then QNAP comes up with a sensible offer here!"

Reivew: Very Good - Vergleich.org (Germany) (2025/02/01)

"The 9 Bay Quad-Core QuTS hero NAS enclosure from QNAP supports U.2 NVMe SSD and is in the mid-range of our comparison in terms of price. We were impressed by the numerous rear inputs and the extremely high computing power."

Rec.dk Recommended - Recordere.dk (Denmark) (2021.05.12)

"If you want a storage device works greatly and with 10 Gbps LAN connectivity, then QNAP comes up with a sensible offer here!"

Available Models

TS-h973AX-8G

AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor, 8 GB SODIMM DDR4 (1 x 8 GB)

TS-h973AX-32G

AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor, 32 GB SODIMM DDR4 (2 x 16 GB)

Absolute performance with AMD Ryzen and up to 64 GB RAM

Powered by an AMD Ryzen Embedded V1000 series V1500B 4-core/8-thread, 2.2 GHz processor with up to 64 GB DDR4 RAM (ECC memory is supported)*, the TS-h973AX delivers aggressive yet power-smart performance for compute-demanding applications. AES-NI encryption support boosts encryption performance while also maintaining the security of your NAS data. SSDs can be flexibly installed for cache acceleration to maximize network and storage performance for data-intensive applications.

* Using ECC memory requires the removal of pre-installed memory, as you cannot use non-ECC memory with ECC memory.

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-h973AX-32G, QuTS hero h4.5.0, 5 x Seagate 1TB ST1000NM0033 HDD RAID 5, 2 x Samsung 850
Pro 512GB SSD, 2 x Kioxia U.2 SSD, compression = On, deduplication = Off
Client PC: Windows 10 Pro, Intel Core i7-6700 3.4 GHz, 64GB RAM, LAN-10G2T-X550

Virtualization Certifications Supported by TS-h973AX

Check QNAP NAS with Support for Virtualization application

Discover why TS-h973AX is the best NAS for SMBs

Dual U.2 NVMe PCIe Gen 3 x4 SSD slots for optimal I/O and low latency

The TS-h973AX has four 2.5-inch SSD slots - with slots 1 & 2 supporting both high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or economical SATA 6Gb/s SSDs. For tackling latency-sensitive applications, you can take advantage of U.2 NVMe PCIe Gen 3 x4 SSDs that supply up to 32Gb/s bandwidth to attain optimized performance and efficiency. You can also use QNAPs QDA adapter to replace U.2 NVMe SSDs with cost-efficient M.2 NVMe SSDs to maintain high-level performance while saving more costs.

Note: U.2 SSDs cannot be installed in the SATA drive bays (including the 3.5-inch bays and SSD Slots 3 & 4).

Coupled with QNAPs SSD-aware features, the TS-h973AX maximizes performance with high cost-effectiveness.

Leverage the M.2 PCIe NVMe SSD to U.2 Adapter

Install one or more QDA adapter in the TS-h973AX (Slot 1 and Slot 2) to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 PCIe NVMe SSD instead of the U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA adapter is hot swappable.

QDA-UMP: Accommodates an M.2 PCIe 3.0 x4 NVMe SSD
QDA-U2MP*: Accommodates two M.2 PCIe 3.0 x4 NVMe SSDs
QDA-UMP4: Accommodates an M.2 PCIe 4.0 x4 NVMe SSD (Compatible with PCIe 3.0)

* Software requirements for using QDA-U2MP:
1. NAS OS: QTS 4.5.4.1787 build 20210910 or QuTS hero h4.5.4.1800 build 20210923 (or later)
2. BIOSQ071AR10 (Click here to download)

Streamline large file transfers and video editing with 10GbE and 2.5GbE

The TS-h973AX has one 10GBASE-T Multi-Gig (10G/5G/2.5G/1G/100M) port and two 2.5GbE RJ45 (2.5G/1G/100M) ports, providing out-of-the-box support for high-speed networking and supporting Port Trunking and Failover to reinforce your network infrastructure. QNAP also provide many other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches, 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to build a budget-friendly high-speed network environment for productive team collaboration.

Accept no substitutes: QNAP is the best choice for AMD Ryzen NAS

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

• Data integrity is key

  QuTS heros self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

• Data reduction improves storage efficiency and performance

  Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.

• Multi-level cache technology

  Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.

• RAID Z enables robust data protection

  Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.

• QSAL (QNAP SSD Antiwear Leveling) enhances data protection

  RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

• App Center ecosystem extends NAS functionality

  Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h973AX.

Inline data deduplication, compression, and compaction drives big data storage efficiency

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication*, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h973AX optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

*Note: Inline data deduplication requires at least 16 GB memory. The TS-h973AX-32G model features 32 GB memory that allows you to attain complete dedup function.

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

The TS-h973AX also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.

• Snapshots multiply backup protection

  Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

• HBS simplifies 3-2-1 backup plans

  HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h973AX to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

All-in-one virtual machine and container hosting solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

• Virtualization Station

  Run multiple Windows, Linux, UNIX, and Android virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

• Container Station

  Experience LXC and Docker lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import and export containers, and create abundant microservices.

License-free VMware and Hyper-V backup appliance

With Hyper Data Protector, the TS-h973AX becomes an agentless backup tool for unlimited VMware vSphere and Microsoft Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

More productivity applications

• Ubuntu Linux Station

  Run Ubuntu applications (including apps from the Ubuntu Software Center) directly on the TS-h973AX and remotely access the Ubuntu desktop from a web browser.

• Security Counselor

  A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

• Boxafe

  Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google Workspace and Microsoft Office 365 to the TS-h973AX.

• Qsirch

  QNAPs powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

• QuMagie

  An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS Live Photo display, and powerful search tool for ultimate photo management and sharing solution.

• HybridMount

  Perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access.

Flexible and economical storage expansion

The storage capacity of the TS-h973AX can be expanded using USB-based expansion enclosures. Two QNAP TR RAID (4-bay TR-004, 2-bay TR-002) can be easily attached and managed using the Storage & Snapshots Manager app.

Subscribe to QVR Elite surveillance solution for 24/7 security

QVR Elite is QNAPs subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TS-h973AX and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows/Mac or mobile devices, taking full control over monitored areas becomes more convenient and easier.

Switch operating systems to upgrade your current storage

The TS-h973AX can also switch to using QTS - QNAPs standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h973AX to upgrade your storage infrastructure and take advantage of Qtier auto-tiering from QTS.

1. QTS and QuTS hero use different file systems. You must remove all the drives from the TS-h973AX before switching from QuTS hero to QTS.
2. It is recommended to upgrade the memory to 16GB or more when using the TS-x73A series NAS with the QuTS hero operating system, especially if installing multiple QPKG applications, to ensure better system stability and performance.

Extend hardware warranty up to 5 years

The TS-h973AX is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
