Description & Specifications
The Port-Starved Professional's Solution
Modern laptops give you incredible power but cripple you with limitations. Connecting a mouse means removing your external drive. Charging your phone forces you to disconnect your display adapter. The Thunderbolt 3 mini Dock ends this constant juggling act by transforming your single Thunderbolt port into five essential connections. Set up dual 4K displays for serious work, plug in a wired network for reliable internet, and connect all your peripherals simultaneously. Finally, your laptop works as hard as you do.
From Cramped to Commanding in Seconds
Stop squinting at spreadsheets on a 13" screen. The Mini Dock's dual 4K display support turns any workspace into a productivity powerhouse. Edit video on one screen while monitoring timeline playback on another. Compare documents side-by-side without endless window switching. See the complete picture of your work instead of hunting through tabs.
With pristine 60Hz refresh rates and multi-channel audio support, everything looks sharp and sounds professional whether you're presenting to clients or streaming content.
Connections Are The Key To Success
Through its USB 3 and USB 2 ports, the OWC Thunderbolt mini Dock opens up a world of convenience and functionality wherever you work. Control your workspace with the ease of a full-sized keyboard or mouse. Back up work to an external drive. Import files from a flash drive, card reader, or optical drive. Send files to a printer. Charge up small mobile devices. With extra connections, it’s easy to keep up with your potential.
Stream, Share, And Connect Faster, More Reliably
Truly a must have for mobile professionals, the OWC Thunderbolt mini Dock offers a Gigabit Ethernet port for a faster, more reliable internet connection. Enjoy a speedy server connection, uninterrupted downloads, and reliable file transfers while saying goodbye to aggravatingly low-quality Wi-Fi connections.
Be At Your Best Anywhere
Even with its huge workflow benefits, the OWC Thunderbolt mini Dock is small enough to fit discreetly on your desktop or inside a gear bag for mobile use. The lightweight, bus-powered aluminum housing and its 7.2-inch tethered Thunderbolt 3 cable eliminate the typical dock’s separate connection cable and power adapter. Nothing to lose or forget, no agonizing over which device to disconnect from your port-limited machine, no extra bulk...the OWC Thunderbolt mini Dock truly lets you work at your best anywhere.
Escape Single-Screen Prison
Transform cramped laptop screens into a three-display command center and do some serious multitasking with two 4K displays at 60Hz with multi-channel audio.
Ditch Unreliable WiFi
Gigabit Ethernet delivers rock-solid internet that won't quit during video calls, large file transfers, or critical deadlines.
Essential Connections
Two USB ports eliminate cable swapping so you can use a keyboard, mouse, external drive, and charge your phone simultaneously.1,2
Stream and Transfer at Full Speed
HDCP 2.2 compatibility streams 4K content flawlessly while USB 3 transfers files at 5Gb/s speeds.
Truly Grab-and-Go Portable
Weighs just 4.9 ounces with permanently attached cable. Slip it into any pocket without cables or power adapters to lose.
Bus-Powered Freedom
No wall outlet required. Power it with your laptop to set up a complete workstation anywhere.
Universal Compatibility
Thunderbolt certified for flawless performance with both macOS and Windows machines.
Disconnect In One Click
Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.
-

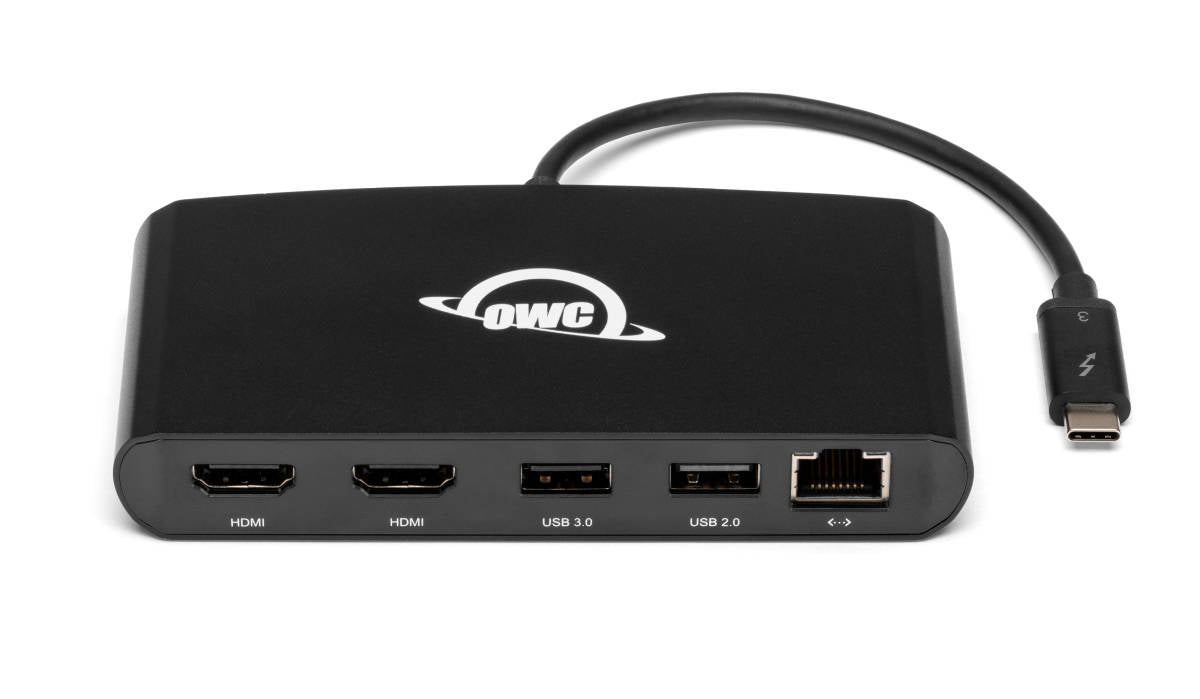

Device Ports
- (1) Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
- (1) USB 3.0 Port
- (1) USB 2.0 Port
- (2) HDMI Ports
- (1) Gigabit Ethernet (GbE) RJ45 Port
Captive Cable
- (1) Thunderbolt 3 (USB-C)
UASP Support
- UASP (USB Attached SCSI Protocol) is supported
-
Display Support
- Up to two 4K displays @ 60Hz,
- or one 4K display @ 60Hz,
- or one 4K display @ 60Hz and one 4K display @ 30Hz,
- or one 4K display @ 30Hz
Display Support by Port
- HDMI 2.0: Up to 4K @ 60Hz
-
Ethernet Speeds (RJ45)
- 1Gb/s "Gigabit" (1000BASE-T)
- 100Mb/s (100BASE-T)
- 10Mb/s (10BASE-T)
Jumbo Frame Support
- Yes
Data Rate
- Up to 40 Gb/s
Chipset / Controller
- Thunderbolt: Intel JHL6540
- USB:ASMedia ASM-1042A
- Ethernet: Intel WGI210AT
-
External Power Adapter
- No
Power Supply
- Bus-powered
-
Captive Cable
- (1) Thunderbolt 3 (USB-C)
Security Slot
- No
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 1.9 cm (0.7 in)
- Length: 6.5 cm (2.6 in)
- Width: 12.4 cm (4.9 in)
- Captive Cable Length: 20.0 cm (7.9 in)
Weight
- 150.0 g (0.33 lbs)
-
Certifications
- FCC
- CE
- RCMI
- BSMI
RoHS Compliant
- Yes
Reach Certification
- Yes
UPC
- 810586035101
-
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Host Interface Requirements
- Thunderbolt (USB-C) port1
Mac OS Compatibility
- macOS 10.12 Sierra
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
- macOS 26.x Tahoe
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows Server 2016
- Windows 11
Driver Required
- No
- (1) OWC Thunderbolt mini Dock with Integrated Cable
- (1) Quick Start Guide for OWC Thunderbolt mini Dock
- (1) User Guide for OWC Thunderbolt mini Dock
- (1) OWC Dock Ejector for Mac and Windows (software download)
- (1) User Guide for OWC Dock Ejector
- 2 Year OWC Limited Warranty
1. USB 3 port supports bus-powered drives with .9A (900mA) or less power requirements as well as drives connected to a power adapter.
2. USB 3 port provides .9A (900mA) of power. This will charge devices requiring 1.0A at slower rate than factory power adapter. Larger devices like tablets requiring 2.1A will not charge. There is no power supplied to USB 3 (or USB 2) port while host computer is turned off or in “sleep” mode.
