Description & Specifications
Ready for You Right Out of the Box
Mercury Elite Pro Dual with Thunderbolt 2 technology features two Thunderbolt 2 ports, one USB 3.1 Gen 1 port, and all of the cables you need for use with almost any system. Ready to perform in RAID 0, it's also easily configured in RAID 1, span, and independent modes to match your workflow needs.
Make More Connections
With dual Thunderbolt 2 ports, Mercury Elite Pro Dual with Thunderbolt 2 technology supports Thunderbolt daisy-chains. Expand your workstation with up to five additional Thunderbolt devices, including high-speed storage, expansion chassis for specialist workflows, even a high-definition display.
Pro Tips: Daisy-chaining with Thunderbolt Devices
With the ability to run up to six devices per port, Thunderbolt ports amplify your laptop or desktop with peripheral power. Learn the basics of daisy-chaining Thunderbolt devices for maximum performance in this handy infographic. View Infographic
Quality You Can Trust

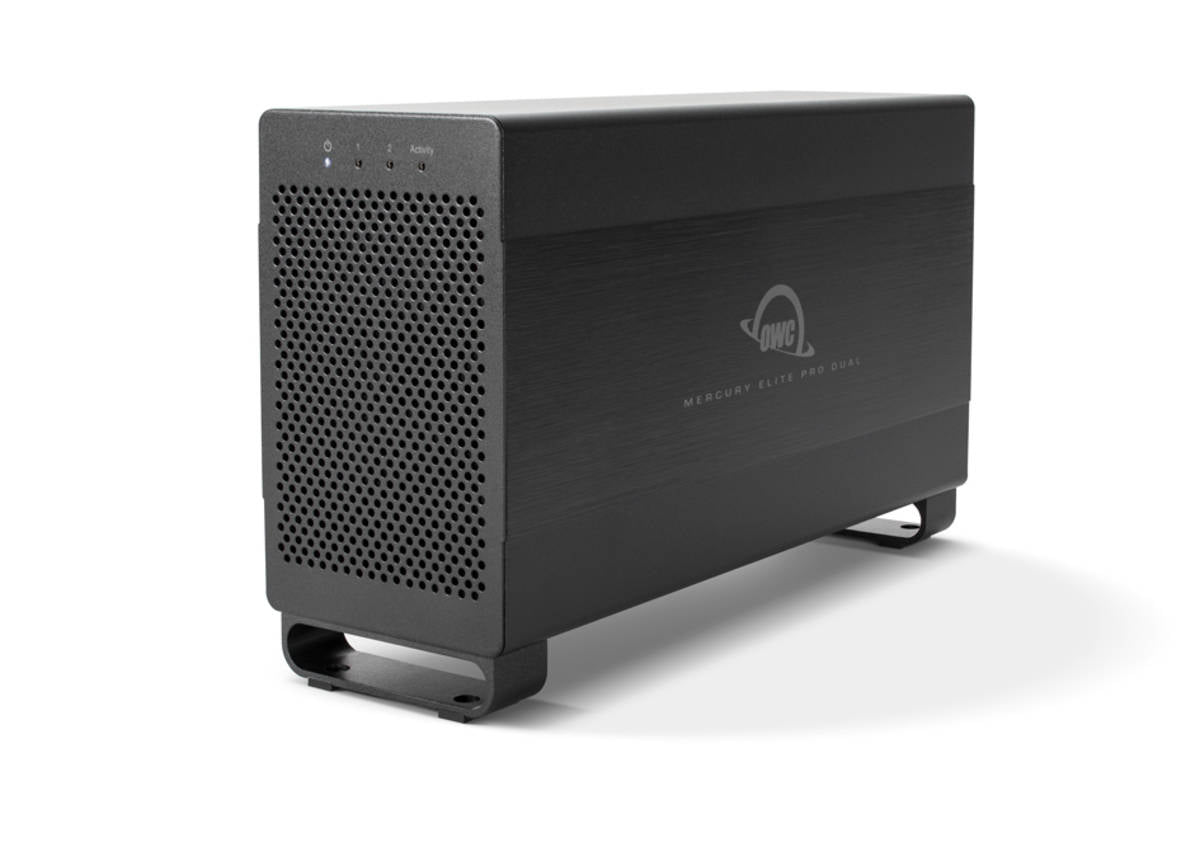

The Mercury Elite Pro Dual with Thunderbolt 2 technology features a heat-dissipating, brushed-aluminum design with a whisper-quiet, high-performance fan. In addition, smart power conserves energy and extends the life of the drives inside. The Elite Pro Dual automatically spins down during periods of inactivity, and powers on and off with your workstation. Extraordinarily durable and efficient, the Mercury Elite Pro Dual with Thunderbolt 2 technology is built to seamlessly integrate with any work environment from large-scale, high demand production studios to your home office.
-
Drive Bays
- 2 bays supporting: 2.5-inch SATA HDDs, 2.5-inch SATA SSDs, 3.5-inch SATA HDDs, 3.5-inch SATA SSDs
Total Capacity
- 2.0TB
Total Solution Cache Size
- 128 MB
Drive Mechanism
- (2) 1TB Western Digital WD Blue 7,200RPM Hard Disk Drive with 64 MB cache
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Plug and Play
- Yes
Boot Support
- Boot Camp is not supported.
Rotational Speed
- 7,200RPM
Storage Interface
- SATA
-
RAID Capable
- Yes
Default RAID Level
- RAID 0
RAID Levels Supported
- RAID 0
- RAID 1
- SPAN
- JBOD
RAID Features
- Hardware RAID
Device Ports
- (1) Host Port - Thunderbolt 2 up to 20Gb/s (2500MB/s) - Thunderbolt 1 backwards compatible
- (1) Host Port - USB 3.2 Gen 1 (Type-B) up to 5Gb/s (600MB/s)
- (1) Thunderbolt 2 Port
-
Benchmark Speed, Read (Max)
- Up to 381MB/s
Benchmark Speed, Write (Max)
- Up to 384MB/s
Chipset / Controller
- Thunderbolt
Contact Start Stops
- 300,000
-
External Power Adapter
- Yes
Power Supply
- External power supply
-
Fans
- (1) cooling fan
Security Slot
- Yes
Power Button
- Yes
Power/Activity LED
- Yes
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 13.5 cm (5.3 in)
- Length: 22.9 cm (9.0 in)
- Width: 7.1 cm (2.8 in)
Weight
- 1.4 kg (3.10 lbs)
-
Ambient Temperature
- Operating: 41°F to 107.6°F (5°C to 42°C)
- Non-Operating: -40°F to 149°F (-40°C to 65°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: 65 G max at 2 ms
- Non-Operating: 175 G max at 2 ms
UPC
- 812437023978
- (1) OWC Mercury Elite Pro Dual External Storage Solution
- (1) 0.6M (24") USB 3.2 Cable (Standard-A to Standard-B)
- (1) 1.0M (39") Thunderbolt Cable
- (1) External Power Supply and Power Cable
- (1) Quick Start Guide for OWC Mercury Elite Pro Dual with Thunderbolt 2 + USB 3.2 (5Gb/s)
- (1) Assembly Manual & User Guide for OWC Mercury Elite Pro Dual with Thunderbolt 2 + USB 3.2 (5Gb/s)
- 3 Year OWC Limited Warranty
- Actual performance may vary depending on host computer, environment, and use conditions.
- 3.5 inch to 2.5 inch SATA drive adapter required. Adapter not included.
- Compressible data benchmarks based on 20TB build using ST10000VN004. Incompressible data benchmarks based on 12TB build using TOSMD04ACA600.
