Description & Specifications

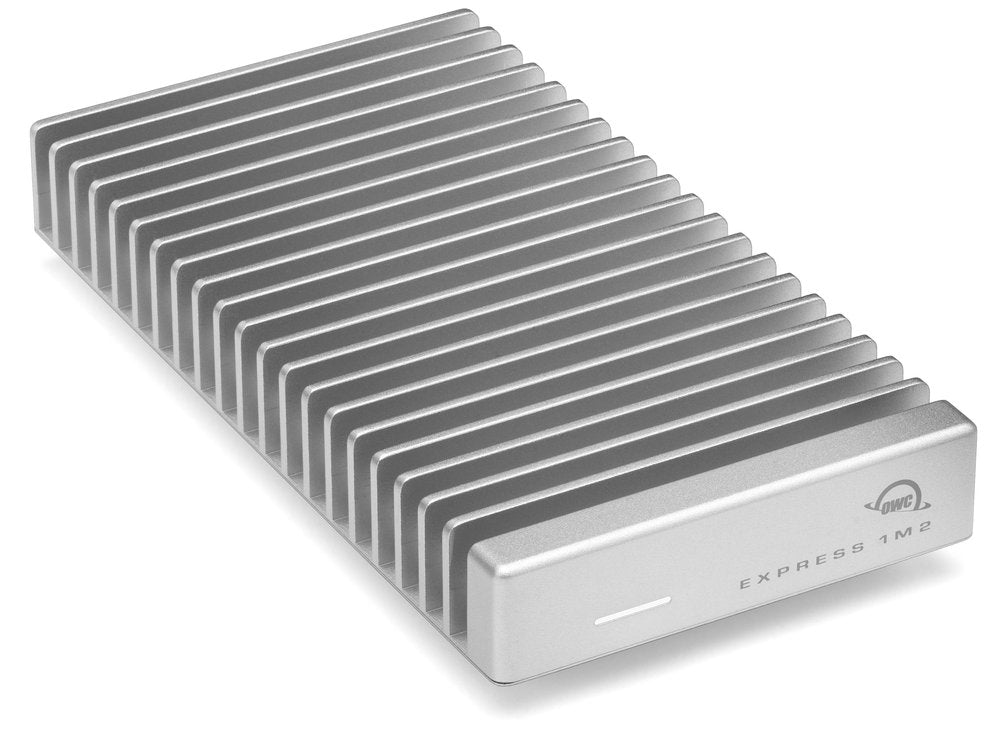

1.0TB OWC Express 1M2
USB4 (40GB/s) Bus-Powered Portable NVMe SSD External Storage Solution
Mfr P/N: US4EXP1MT01 OWC SKU: OWCUS4EXP1MT01
Ultra-fast, compatible, and reliable portable USB4 NVMe SSD
- Ultra-fast: over 3,800MB/s1
- Ultra-compatible: use with USB4, Thunderbolt, and USB-C computers and devices
- Ultra-reliable & innovative: patent pending heat-dissipating design offers rugged protection of your SSD while silently keeping drive cool for consistent top speed
- Powerful choices: Build your own drive or select OWC Aura SSD powered solution
- Portable: bus-powered and palm-sized for convenient use anywhere
- Complete: includes USB-C (40Gb/s) cable
Includes
- (1) OWC Express 1M2 External Storage Solution
- (1) 0.3M (12") USB-C (40Gb/s) Cable
- (1) Getting Started QR Insert Card
- (1) Support Manual for OWC Express 1M2
- 3 Year OWC Limited Warranty
Specs
Drive Bays
- 1 bay supporting: M.2 SSDs
- Supports double-sided and single-sided M.2 2230, M.2 2242, M.2 2280 "M Key" drives
- NVMe M.2 SSDs with a heatsink will not fit and are not supported. Supports PCIe 3.0 NVMe SSDs (up to 3000MB/s), PCIe 4.0 NVMe SSDs (up to 3800MB/s), and PCIe 5.0 NVMe SSDs (up to 3800MB/s).
Total Capacity
- 1000GB Useable Capacity
- Total Capacity: 1028GB
- 28GB Allocated to real-time data redundancy and error correction
Drive Mechanism
- (1) 1.0TB OWC Aura Ultra IV PCIe 4.0 NVMe M.2 2280 Solid-State Drive
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Plug and Play
- Yes
Boot Support
- Mac only
Drive Format
- APFS for Mac and iPad systems
- Windows and Android users please consult OWC Drive Setup for Windows, Chrome, and Android Platforms for formatting instructions
Storage Interface
- M.2
Data Transfer Rate (Maximum)
- USB4 : Up to 40Gb/s (or 5000MB/s)
Benchmark Speed, Read (Max)
- Up to 3836MB/s
Benchmark Speed, Write (Max)
- Up to 2897MB/s
Benchmark Speed, Write (Sustained)
- 2785MB/s (First 11% / 0.22TB)
- 1720MB/s (Next 69% / 1.35TB)
- 819MB/s (Final 19% / 0.38TB)
Chipset / Controller
- USB: ASM2464PD
Host Interface Requirements
- USB4, Thunderbolt, or USB 10Gb/s1 port
Mac OS Compatibility
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
- macOS 26.x Tahoe
PC OS Compatibility
- Windows 10 32-bit Edition
- Windows 10 64-bit Edition
- Windows Server 2016
- Windows 11
Linux OS Compatibility
- Yes
Mobile OS Compatibility
- iPadOS 13
- iPadOS 14
- iPadOS 15
- iPadOS 16
- iPadOS 17
- iPadOS 18
- iPadOS 26
- Android 13.x
- Android 14.x
- Android 15.x
Other OS Compatibility
- ChromeOS version 102 and later
Driver Required
- No
External Power Adapter
- No
Power Supply
- Bus-powered
Security Slot
- No
Power/Activity LED(s)
- Yes
Housing Color
- Silver
Housing Material
- Aluminum
Dimensions
- Height: 2.3 cm (0.9 in)
- Length: 13.2 cm (5.2 in)
- Width: 7.0 cm (2.8 in)
Weight
- 260.7 g (0.57 lbs)
Certifications
- BSMI
- CE
- FCC
- RCM
- VCCI
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Benchmarks
Truth in Numbers: Another OWC Difference
There are many attributes that define “The OWC Difference.” By listing real-world performance tests of OWC solutions, we’re confident you’ll be completely satisfied with your technology investment.
macOS Test Results
Blackmagic Disk Speed Test - Apple silicon
USB4
Benchmark for 1TB NVMe M.2 SSD (OWCSP4U8T4PT01)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 8K - Apple silicon
USB4
Benchmark for 1TB NVMe M.2 SSD (OWCSP4U8T4PT01)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 4K - Apple silicon
USB4
Benchmark for 1TB NVMe M.2 SSD (OWCSP4U8T4PT01)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
Windows Test Results
CrystalDiskMark - Windows
USB4
Benchmark for 1TB NVMe M.2 SSD (OWCSP4U8T4PT01)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
CrystalDiskMark - Windows
USB4
Benchmark for 1TB NVMe M.2 SSD (OWCSP4U8T4PT01)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
AJA System Test - 8K - Windows
USB4
Benchmark for 1TB NVMe M.2 SSD (OWCSP4U8T4PT01)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
AJA System Test - 4K - Windows
USB4
Benchmark for 1TB NVMe M.2 SSD (OWCSP4U8T4PT01)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
