Description & Specifications

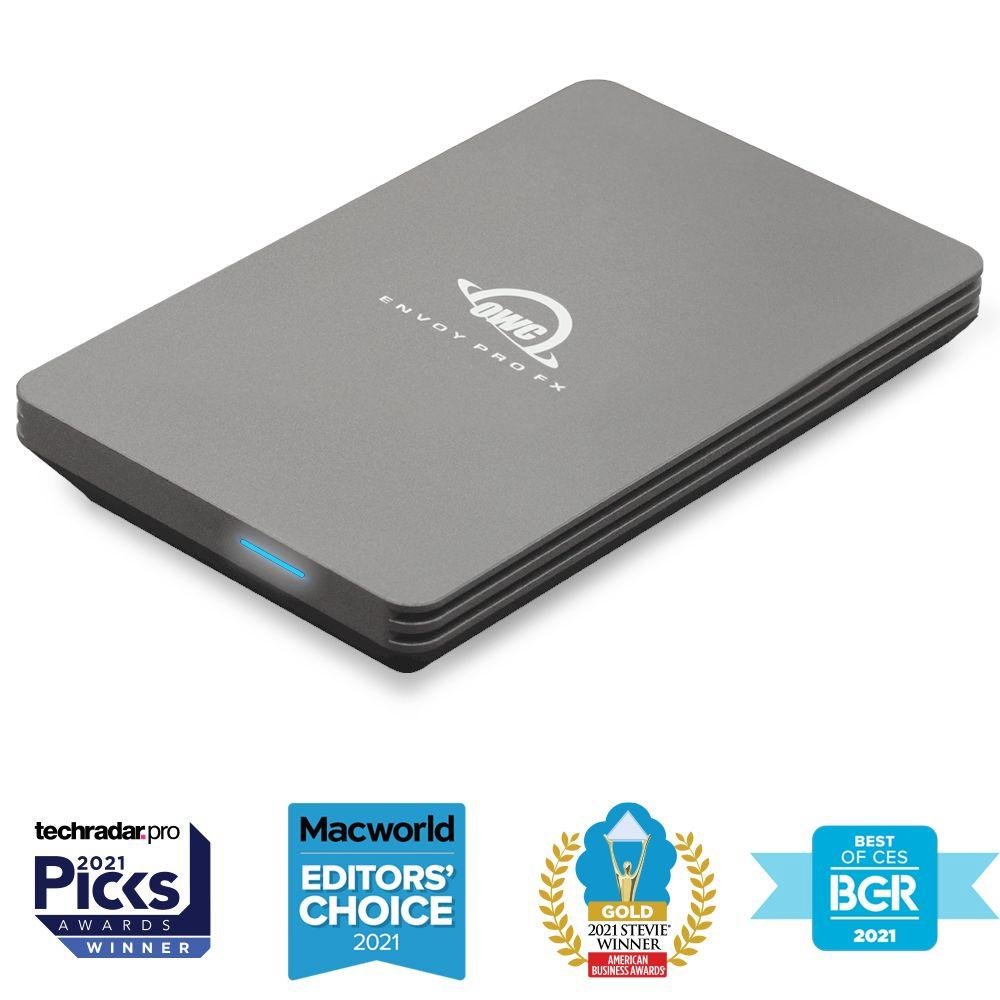

2.0TB OWC Envoy Pro FX
Thunderbolt (USB-C) + USB 3.2 (10Gb/s) Bus-Powered Portable NVMe SSD External Storage Solution
Mfr P/N: TB3ENVPFX02 OWC SKU: OWCTB3ENVPFX02
The Fastest Most Compatible Drive Ever Made with Speeds up to 2800MB/s
- Flexible compatibility: Plug and play with yesterday’s, today’s, and tomorrow’s Macs; Windows and Linux PCs; and iPad Pro, Chromebook, and Surface devices.
- Xtremely fast: supports the max performance capability of any Thunderbolt and USB interface up to 2972MB/s1
- Versatile: perfect for audio, video, photography, graphics, gaming, and general data storage/backup uses
- OWC Aura SSD powered: advanced storage technology with TRIM support combined with Thunderbolt delivers the fastest and most reliable performance available in a portable drive
- Built like a tank: dust/drop/waterproof certified2
- Portable: bus-powered and smaller that most compact size smartphones
- Silently cool: fanless, heat dissipating aluminum housing for distraction-free operation
- Secure: non-skid rubber feet keep drive in place
- Informative: LED for at glance confirmation of power and activity status
- Connected: included Thunderbolt / USB cable plugs into to any machine anywhere
Includes
- (1) OWC Envoy Pro FX External Storage Solution
- (1) 0.3M (12") Thunderbolt Cable with Tethered USB-C to USB-A Adapter
- (1) OWC Envoy Pro FX Getting Started QR Insert Card
- 3 Year OWC Limited Warranty
Specs
IP Rating
- IP67 (Dust-tight, protected against the effects of temporary immersion in water)
Drop Resistance
- Military grade drop resistant (MIL-STD-801H)
Drive Bays
- 1 bay
Total Capacity
- 1920GB Useable Capacity
- Total Capacity: 2048GB
- 128GB Allocated to real-time data redundancy and error correction
Drive Mechanism
- (1) 2.0TB OWC Aura Pro IV PCIe 4.0 NVMe M.2 2280 Solid-State Drive
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Plug and Play
- Yes
Boot Support
- Mac only. Boot Camp is not supported.
Drive Format
- APFS for Mac and iPad systems
- Windows, Chrome, and Android users please consult OWC Drive Setup for Windows, Chrome, and Android Platforms for formatting instructions
Device Ports
- (1) Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s) + USB 3.2 Gen 2 (USB-C) up to 10Gb/s (1250MB/s) - USB 2.0/USB 3.0 backwards compatible
UASP Support
- UASP (USB Attached SCSI Protocol) is supported
Data Transfer Rate (Maximum)
- Thunderbolt 3 : Up to 40Gb/s (or 5000MB/s)
- USB 3.2 Gen 2 : Up to 10Gb/s (or 1250MB/s)
Chipset / Controller
- Thunderbolt: Intel Titan Ridge
- USB: Realtek RTL9210
Host Interface Requirements
- Thunderbolt (USB-C) or USB (USB-C or USB-A1) port
Mac OS Compatibility
- Mac OS X 10.7 Lion
- Mac OS X 10.8 Mountain Lion
- OS X 10.9 Mavericks
- OS X 10.10 Yosemite
- OS X 10.11 El Capitan
- macOS 10.12 Sierra
- macOS 10.13 High Sierra
- macOS 10.14 Mojave
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
- macOS 14.x Sonoma
- macOS 15.x Sequoia
- macOS 26.x Tahoe
PC OS Compatibility
- Windows 10 64-bit Edition
- Windows Server 2016
- Windows Server 2022
- Windows 11
Linux OS Compatibility
- Yes
Mobile OS Compatibility
- iPadOS 13
- iPadOS 14
- iPadOS 15
- iPadOS 16
- iPadOS 17
- iPadOS 18
- iPadOS 26
Other OS Compatibility
- Chrome OS
Driver Required
- No
Other Requirements
- For Thunderbolt 3 or later on the Mac, OS version 10.13 or later is required.
- For USB connections on a Mac, OS version 10.7.5 or later is required.
- For Chrome OS (USB), version 85 or later is required.
- For Linux, this device was tested on Ubuntu version 20.04.1 LTS. Earlier versions of Ubuntu or other Linux distributions may not support this device.
External Power Adapter
- No
Power Supply
- Bus-powered
Security Slot
- No
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 2.0 cm (0.8 in)
- Length: 11.0 cm (4.3 in)
- Width: 6.5 cm (2.6 in)
Weight
- 243.0 g (0.54 lbs)
Certifications
- BSMI
- CE
- FCC
- RCM
- VCCI
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Noise
- 0.0dB
Benchmarks
Truth in Numbers: Another OWC Difference
There are many attributes that define “The OWC Difference.” By listing real-world performance tests of OWC solutions, we’re confident you’ll be completely satisfied with your technology investment.
macOS Test Results
Blackmagic Disk Speed Test
Thunderbolt 3
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
Blackmagic Disk Speed Test
USB 3.1 Gen 1
iMac Pro (Late 2017, iMacPro1,1) with 3.2GHz processor and 32GB RAM
Blackmagic Disk Speed Test
USB 3.1 Gen 2
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor, 64GB RAM, and Mercury Elite Pro Dual
AJA System Test
Thunderbolt 3
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
AJA System Test
USB 3.1 Gen 1
iMac Pro (Late 2017, iMacPro1,1) with 3.2GHz processor and 32GB RAM
AJA System Test
USB 3.1 Gen 2
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
Windows Test Results
CrystalDiskMark - Windows
Thunderbolt 3
Gigabyte (GA-Z170X-UD5 TH) with 2.70GHz i5-6400 processor and 16GB RAM
CrystalDiskMark - Windows
USB 3.1 Gen 1
Gigabyte (GA-Z170X-UD5 TH) with 2.70GHz i5-6400 processor and 16GB RAM
CrystalDiskMark - Windows
USB 3.1 Gen 2
Gigabyte (GA-Z170X-UD5 TH) with 2.70GHz i5-6400 processor and 16GB RAM and Mercury Elite Pro Dual
AJA System Test
Thunderbolt 3
Gigabyte (GA-Z170X-UD5 TH) with 2.70GHz i5-6400 processor and 16GB RAM
AJA System Test
USB 3.1 Gen 1
Gigabyte (GA-Z170X-UD5 TH) with 2.70GHz i5-6400 processor and 16GB RAM
AJA System Test
USB 3.1 Gen 2
Gigabyte (GA-Z170X-UD5 TH) with 2.70GHz i5-6400 processor and 16GB RAM and Mercury Elite Pro Dual
