EonStor GSe Family
Shared Media Storage for SMB
The EonStor GSe (GSe) is a shared storage solution especially designed for SMBs to support high definition video collaboration. For such applications, Infortrend integrates DaVinci Resolve project server database on the GSe, and provides the EonView, an automated agent software that supports Windows and macOS workstations, enabling video editors to easily deploy storage and network settings without the assistance of IT personnel. This allows multiple users to collaborate on videos and regularly back up project contents, providing an easy-to-use video workflow management mechanism.
GSe's hardware design features various form factors and flexible host boards to choose from, and stable, reliable modular design with high expandability. GSe supports SAS, SATA, and SSD drives, integrating SAN and NAS service as well as EonCloud Gateway features to deploy a powerful hybrid cloud environment. In addition to the built-in four 10GbE /1GbE channels, GSe also provides flexible 25GbE /10GbE Ethernet interface and multiple network protocols such as CIFS/SMB and NFS, which can be easily integrated with your existing work environment. GSe is the best storage solution for your multimedia collaboration workflow.
Entry Level Near-line Solution
The EonStor GSe 1000 is entry level enterprise solutions especially designed for SMBs and ROBOs. It provides complete data storage, file sharing, and cloud integration, allowing IT personnel to efficiently manage all kinds of light SAN and NAS workloads, all at an affordable price. The EonStor GSe 1000 comes with exceptional expandability of more than 10PB storage capacity and two sets of modular host board slots, which can easily meet the needs of future data growth and architecture transformation. As such, the GSe 1000 is the ideal choice for the budget-conscious applications.
Cost-effective Shared Storage Solution
The EonStor GSe 3000 Gen2 and 2000/2000T are shared storage solutions especially designed for SMBs or media workstations to collaborate on 4K and above ultra-high definition media footages. GSe 3000 Gen2 and 2000T support for all flash or hybrid configurations to provide the performance required for near-line storage and high definition media editing applications. Up to two sets of modular host boards are also offered to fulfill the requirements of numerous applications or infrastructure transformation to allow more deployment flexibility. The systems come with an expandability of more than 10PB, meeting the needs of future data growth. As such, GSe 3000 Gen2 and 2000T are your cost-effective shard storage solutions. If performance is the main concern, GSe 3000 Gen2 will be the best choice, otherwise the GSe 2000/2000T is ideal as it can meet all general storage needs.
High Performance Shared Storage Solution
The EonStor GSe 4000 Gen2 is a high performance enterprise storage solution with powerful performance, flexibility, and high scalability to handle large amounts of file transfers even under high workloads. It is especially suitable for heavy workloads or 4K and above ultra-high definition video editing, such as video rendering and multi-stream playback, and can effectively assist enterprises or video studios to improve overall productivity
EonOnean Easy-to-use Interface for Storage Management
With the constant evolution of storage platforms, the EonStor GSe adopts the all new EonOne management software to assist customers in improving storage and service efficiency for increased productivity. Infortrend offers two kinds of user privilege for different management purposes. One user privilege is for M&E User Administrator, who is in charge of users account and storage quota management, and the other user privilege is for System Administrator who can do advanced storage settings and maintenance.
EonView
EonView is a client-based utility for Windows and macOS workstations to simplify the complexities of storage system deployment and network settings for easy file sharing.
Performance
Infortrend offers a three-tier solution which can support up to 5,000/3,000 MB/s read/write throughput that supports 26 4K video streams. The following table shows the details.
| Solutions | CIFS Read/Write MB/s | 4K 4096 x 2160 ProRes 4444 @24 fps |
ProRes 422 1920 x 1080 @30 fps |
Raw Capacity | |
|---|---|---|---|---|---|
| Tier 1 | GSe 2016T 16-HDD | 1,600/1,400 | 13 | 64 | 160TB |
| Tier 2 | GSe 3000 Gen2 32-HDD | 3,750/2,300 | 18 | 87 | 320TB |
| Tier 3 | GSe 4000 Gen2 48-HDD | 5,000/3,000 | 26 | 120 | 480TB |
Scalability
To meet the ever-growing storage demands on high resolution video footages, GSe supports up to 896 drives and more than 10PB capacity through expansion enclosures, which is ideal for storageintensive applications.
SAN, NAS and Cloud in ONE Unified Storage
With the growth of data, more and more enterprises face the need to transform their storage infrastructure. Besides providing TB or PB level local storage capacity for critical applications, the EonStor GSe can also assist users to expand their data storage to cloud by adjusting system setups according to actual requirements, all in one storage system.
Hybrid Storage Arrays
From data growth, management of numerous hardware devices, to annual budget cuts, IT personnel need to face ever-changing challenges every day. The EonStor GSe can be set up as a hybrid flash storage according to their needs, and combined with either SSD Cache or Automated Storage Tiering, it can utilize the high performance of SSDs and the large capacity of HDDs, while automatically moving frequently accessed data to SSDs to achieve simplified management and proper use of resources.
Complete Cloud Integration Solution
Integration of enterprise data and cloud is the trend of the future, and the EonStor GSe can assist customers to move file or block level data to public or private clouds according to their needs. Besides low cost access to infrequently used data, it can also backup data to the cloud to establish a remote backup architecture, creating a data center with high availability.
Rich Host Interface in GSe Family
As there is a wide range of enterprise applications, the required communication interface for each application may differ. Infortrend provides rich communication interfaces in SAN environments, including 8Gb/s FC, 16Gb/s FC, 32Gb/s FC, 1Gb/s iSCSI, 10Gb/s iSCSI, 40Gb/s iSCSI and 12Gb/s SAS to allow complete compatibility with all applications. Furthermore, 1GbE, 10GbE, 25GbE and 40GbE ports are also offered in network environments to provide fast and reliable data sharing and data transfer quality.
Modular Design
From power supplies, fans, controller, to host boards, all Infortrend products adopt modular designs to lower maintenance complexity and provide fast, precise technical support and RMA services.

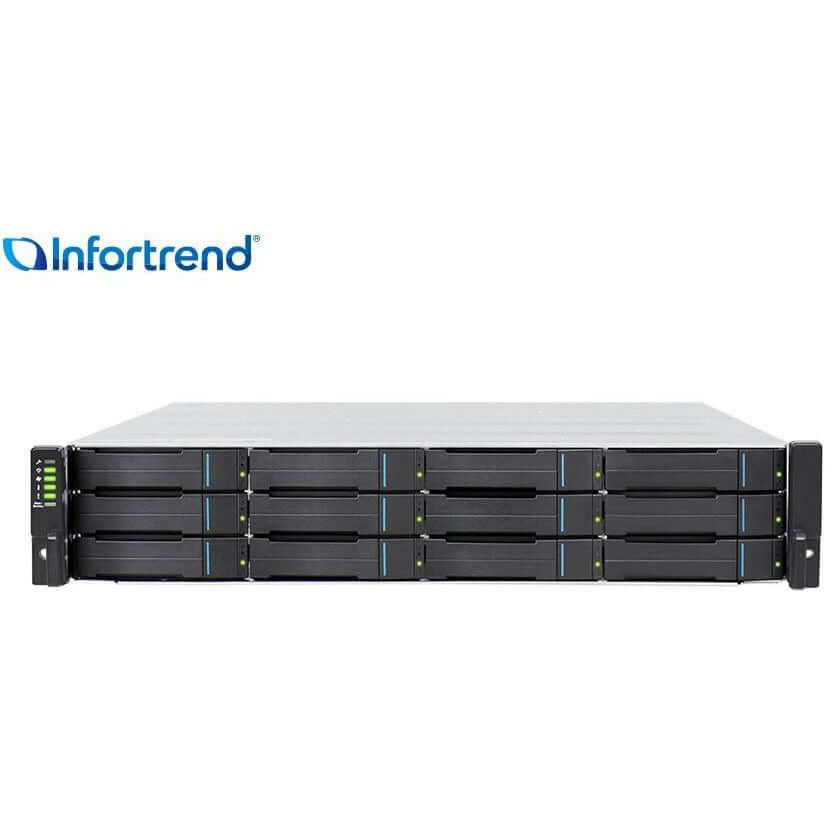

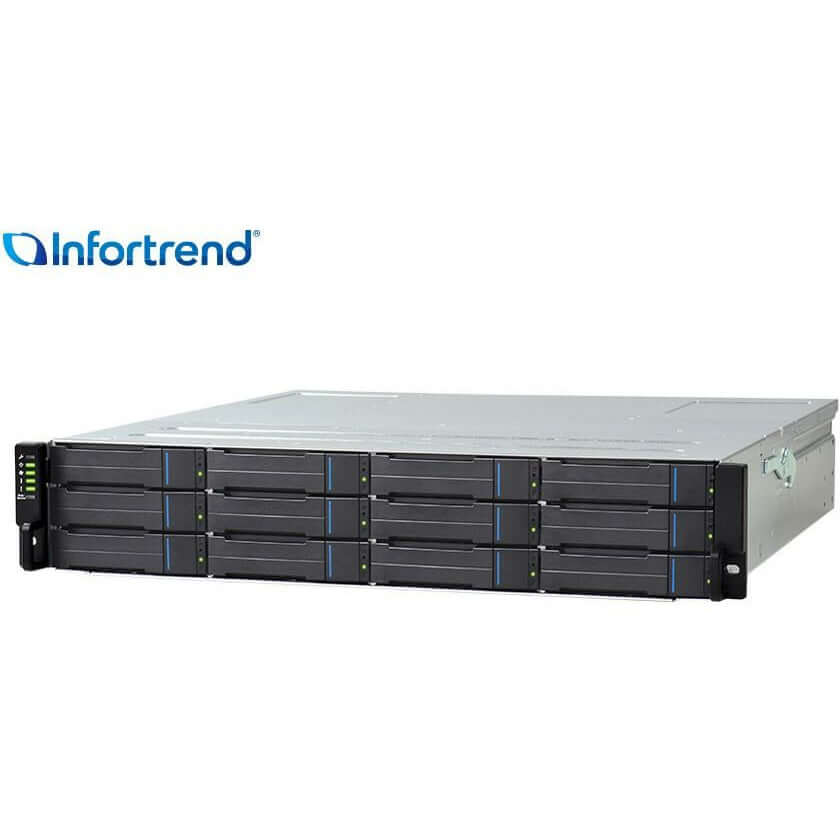

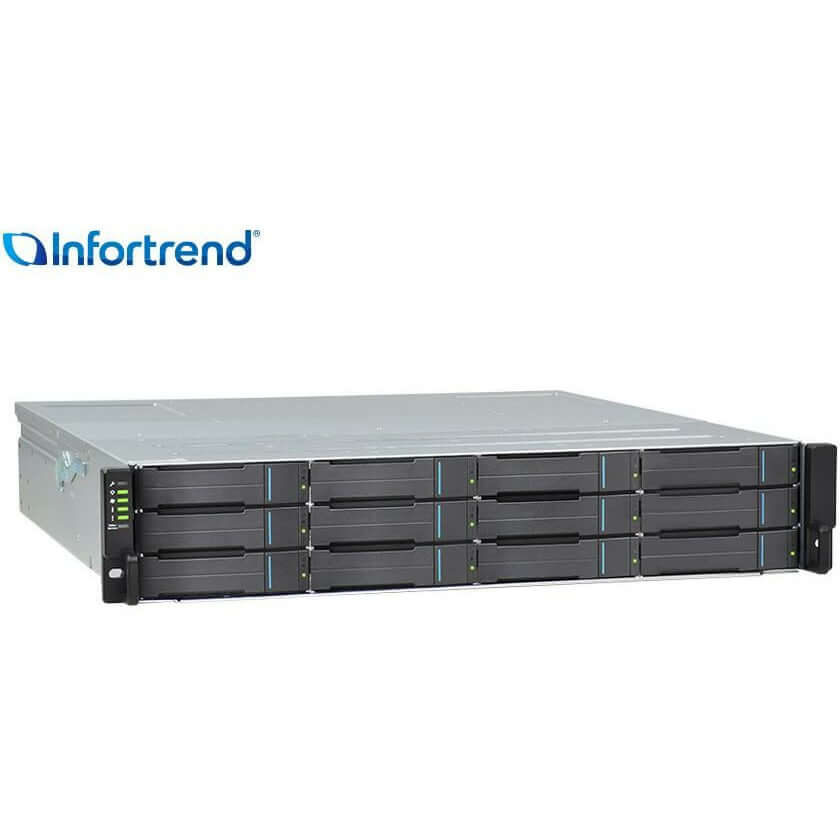

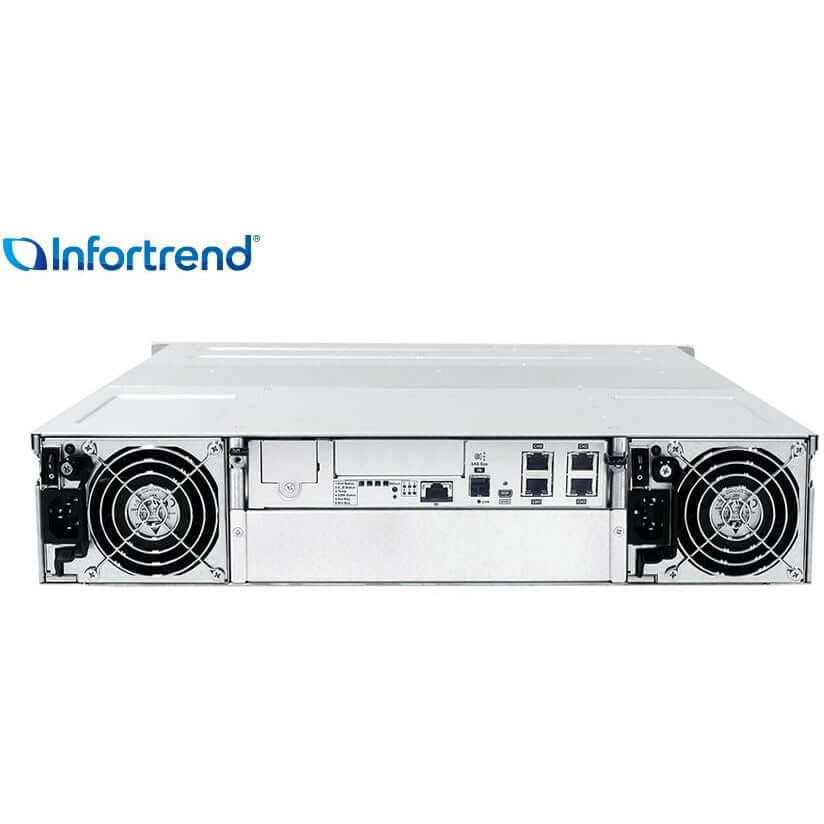

EonStor GSe 1000
Affordable Gen2 unified storage that supports SAN, NAS, and cloud gateway
EonStor GSe 1000 with 6GB/s drive interface can handle file level protocols including CIFS/SMB, NFS, AFP and FTP; block level protocols such as Fibre Channel, iSCSI, and SAS; and object protocols, which let the users access files directly via browsers through the files unique URL and extend or backup data to cloud. It can also be used as a backup drive in D2D2C, turning the cloud into an easily accessible and useful element in todays data protection.
The new GSe 1000 Gen2 with support for SAS 12Gb/s drive side chip is an upgrade from Gen1's SAS 6Gb/s to remove bottlenecks and offer a faster performance
Model
- GSe 1012 Gen2
- GSe 1016 Gen2
Form Factor
- 2U 12-bay
- 3U 16-bay
Controller
Single controller
Host Ports
- Onboard host ports
- 4 x 1Gb/s iSCSI ports
- More host options:
- 4 x 8Gb/s Fibre Channel ports
- 2 x 16Gb/s Fibre Channel ports
- 4 x 16Gb/s Fibre Channel ports (No Remote Replication support)
- 4 x 1Gb/s iSCSI ports
- 2 or 4 x 10Gb/s iSCSI port (SFP+)
- 2 x 10Gb/s iSCSI ports (RJ-45)
- 2 x 40Gb/s iSCSI ports (QSFP+)
- 2 x 12Gb/s SAS ports
Cache Memory
Default DDR3 8GB, up to 16GB
Cache Backup Techniques
Super Capacitor + Flash module (Optional)
Maximum Number of Drives
Via expansion enclosure: 448
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSDs
- 2.5" SATA SSDs
- 2.5" 10,000 RPM SAS drives
- 3.5" 7,200 RPM Nearline SAS drives
- 3.5" 7,200 RPM SATA drives
Protocol Support
- File Level Protocol
- CIFS / SMB
- AFP
- NFS
- FTP
- FXP
- WebDAV
- Block Level Protocol
- FC
- FCoE
- iSCSI
- InfiniBand
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
JB 3012SA, JB 3016SA, JB 3024SBA, JB 3025SBA, JB 3060G, JB 3060GL
RAID Functionality
- Global, designated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- RAID migration
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Protection and Data Service
Default software features include:
- SSD cache
- SED (Self-encrypting drives)
- Thin-provisioning
- File-level remote replication (Rsync)
- Snapshot: 64 per volume/ 128 per system
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
Optional software features require additional license:
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per system
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Relication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Relication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules/ CacheSafe technology/ Device mapper support
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control - Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List - Support Windows Active Directory Authentication
- Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer - LDAP on Linux
OS Support
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
- Power supplies: Redundant/hot-swappable 460W x 2
- AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
- Frequency: 50-60 Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB, EAC
- Electromagnetic Compatibility: CE, BSMI, FCC, KC
Dimensions
- GSe 1012 : 447mm (W) x 88mm (H) x 500mm (D)
- GSe 1016 : 447mm (W) x 130mm (H) x 500mm (D)
(Without chassis ears / protrusions)
Weight (Without HDDs)
- GSe 1012
12.08kg/ 26.63lbs - GSe 1016
14.81kg/ 32.65lbs
Package Dimensions
- GSe 1012 : 780mm (W) x 379mm (H) x 588mm (D)
- GSe 1016 : 780mm (W) x 423mm (H) x 588mm (D)
EonStor GSe 2000
Great-valued unified NAS/SAN/Cloud gateway storage solution
EonStor GSe 2000 Series with 12GB/s drive interface can handle file level protocols including CIFS/SMB, NFS, AFP, and FTP; block level protocols such as Fibre Channel, iSCSI, and SAS; and object level protocols, which let the users access files directly via browsers through the files unique URL and extend or backup data to cloud. It can also be used as a backup drive in D2D2C, turning the cloud into an easily accessible and useful element in todays data protection.
Model
- GSe 2012
- GSe 2016
Form Factor
- 2U 12-bay
- 3U 16-bay
Controller
Single controller
Host Ports
- Onboard host ports
- 4 x 1Gb/s iSCSI ports
- More host options:
- 8 x 8Gb/s Fibre Channel ports
- 4 x 16Gb/s Fibre Channel ports
- 8 x 16Gb/s Fibre Channel ports (No Remote Replication support)
- 8 x 10Gb/s FCoE ports
- 8 x 1Gb/s iSCSI ports
- 4 or 8 x 10Gb/s iSCSI ports (SFP+)
- 4 x 10Gb/s iSCSI ports (RJ-45)
- 4 x 25Gb/s iSCSI ports (SFP28)
- 4 x 40Gb/s iSCSI ports (QSFP+)
- 4 x 56Gb/s InfiniBand ports - for Linux only, block level only
- 4 x 12Gb/s SAS ports
Cache Memory
Default DDR4 8GB, up to 16GB, 32GB or 64GB
Cache Backup Techniques
Super Capacitor + Flash module (Optional)
Maximum Number of Drives
Via expansion enclosure: 448 and 896 (with expansion board)
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSDs
- 2.5" SATA SSDs
- 2.5" 10,000 RPM SAS drives
- 3.5" 7,200 RPM Nearline SAS drives
- 3.5" 7,200 RPM SATA drives
Protocol Support
- File Level Protocol
- CIFS / SMB
- AFP
- NFS
- FTP
- FXP
- WebDAV
- Block Level Protocol
- FC
- FCoE
- iSCSI
- InfiniBand
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
JB 3012SA, JB 3016SA, JB 3024SBA, JB 3025SBA, JB 3060G, JB 3060GL
RAID Functionality
- Global, designated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- RAID migration
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Protection and Data Service
Default software features include:
- SSD cache
- SED (Self-encrypting drives)
- Thin-provisioning
- File-level remote replication (Rsync)
- Snapshot: 64 per volume/ 128 per system
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
Optional software features require additional license:
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per system
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Relication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Relication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules/ CacheSafe technology/ Device mapper support
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control - Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List - Support Windows Active Directory Authentication
- Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer - LDAP on Linux
OS Support
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
- NFS protocol running on VMWare environment is currently not supported
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
- Power supplies: Redundant/hot-swappable 460W x 2
- AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
- Frequency: 50-60 Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB, EAC
- Electromagnetic Compatibility: CE, BSMI, FCC, KC
Dimensions
- GSe 2012 : 447mm (W) x 88mm (H) x 500mm (D)
- GSe 2016 : 447mm (W) x 130mm (H) x 500mm (D)
(Without chassis ears / protrusions)
Weight (Without HDDs)
- GSe 2012
12.08kg/ 26.63lbs - GSe 2016
14.81kg/ 32.65lbs
Package Dimensions
- GSe 2012 : 780mm (W) x 379mm (H) x 588mm (D)
- GSe 2016 : 780mm (W) x 423mm (H) x 588mm (D)
EonStor GSe 3000 Gen2
Shared media storage with comprehensive SAN/NAS/Cloud gateway | Infortrend
GSe 3000 Gen2 is an upgraded SAN, NAS, and cloud gateway storage for M&E post-production. It offers high performance at affordable price, and able to playback 18 streams of 4K video simultaneously. With up to twelve 10Gb ports for client direct connection, it reduces deployment efforts and saves network switch costs. Remarkably, GSe 3000 provides an easy-to-use management GUI, smart workstation utility, and collaborative editing environment for DaVinci Resolve and Adobe Premiere.
Model
- GSe 3016 Gen2
- GSe 3024 Gen2
Form Factor
- 3U 16-bay
- 4U 24-bay
Controller
Single controller
Host ports
- Onboard ports
- 4 x 10GbE ports (SFP+)
- More host options:
- 8 x 16Gb/s Fibre Channel ports
- 4 x 32Gb/s Fibre Channel ports
- 8 x 10GbE ports (SFP+)
- 4 x 10GbE ports (RJ-45)
- 4 x 25GbE ports (SFP28)
- 4 x 12Gb/s SAS ports
Cache Memory
Default DDR4 8GB, up to 16GB, 32GB, 64GB or 128GB
Cache Backup Techniques
Super Capacitor + Flash module
Maximum Number of Drives
Via expansion enclosure: 448 and 896 (with expansion board)
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSDs
- 2.5" SATA SSDs
- 2.5" 10,000 RPM SAS HDD
- 2.5" 15,000 RPM SAS HDD
- 3.5" 7,200 RPM Nearline SAS HDD
- 3.5" 7,200 RPM SATA HDD
Protocol Support
- File Level Protocol
- CIFS / SMB (Version 2.0/3.0)
- NFS (Version 2/3/4)
- AFP (Version 2.2.2)
- FTP / FXP (vsftp 2.3.4)
- WebDAV (httpd package 2.4.6)
- Block Level Protocol
- FC
- iSCSI
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
JB 3016A, JB 3060, JB 3060L
RAID Functionality
RAID 0, 1, 3, 5, 6, 10 (1+0), 30, 50, 60
Data Protection and Data Service
Default software features include:
- SED (Self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per volume/ 128 per pool
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
- File-level remote replication (Rsync)
Optional software features require additional license:
- SSD cache
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per pool
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
- Redundant, hot-swappable hardware modules
- Device mapper support
- Antivirus
- Trunk group support
- CacheSafe technology
- UPS
- WORM(For file level only)
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder access control - Quota management
- Integration with Microsoft Active Directory (AD) and LDAP
- Folder encryption with AES
OS Support
- Microsoft Windows Server 2016/2012R2/2012/2008R2/2008
- Windows 7 SP1/ Windows 8.1
- Red Hat Enterpise Linux
- Microsoft Windows Hyper-V
- SUSE Linux Enterprise
- Sun Solaris
- Mac OS X
- VMware
- Citrix XenServer
- OpenStack Cinder
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
GSe 3000/4000 Gen2
- Power supplies: 530W x2 (80 PLUS Bronze)
- AC voltage: 100VAC @10A to 240VAC @5A
- Frequency: 47-63 Hz
GSe 3060L/4060L Gen2
- Power supplies:1200W x 2 (80 PLUS Platinum)
- AC voltage: 100-127VAC@12.47A, 200-240VAC@7.08A
- Frequency: 47-63Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
447mm (W) x 175mm (H) x 500mm (D)
Package Dimensions
780mm (W) x 465mm (H) x 588mm (D)
EonStor GSe 4000 Gen2
Shared media storage with high-performance SAN/NAS/Cloud gateway
GSe 4000 Gen2 is an ultra-high-performance SAN/NAS/Cloud gateway unified storage for M&E post-production groups. It offers 1200 TB capacity, up to twelve 10Gb ports for client direct connection, and able to simultaneously playback 26 streams of 4K video. GSe increases user video editing experience with an intuitive management GUI, smart workstation utility, and collaborative editing environment for DaVinci Resolve and Adobe Premiere.
Model
- GSe 4016 Gen2
- GSe 4024 Gen2
Form Factor
- 3U 16-bay
- 4U 24-bay
Controller
Single controller
Host ports
- Onboard ports
- 4 x 10GbE ports (SFP+)
- More host options:
- 8 x 16Gb/s Fibre Channel ports
- 4 x 32Gb/s Fibre Channel ports
- 8 x 10GbE ports (SFP+)
- 4 x 10GbE ports (RJ-45)
- 4 x 25GbE ports (SFP28)
- 4 x 12Gb/s SAS ports
Cache Memory
Default DDR4 8GB, up to 16GB, 32GB, 64GB or 128GB
Cache Backup Techniques
Super Capacitor + Flash module
Maximum Number of Drives
Via expansion enclosure: 448 and 896 (with expansion board)
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSDs
- 2.5" SATA SSDs
- 2.5" 10,000 RPM SAS HDD
- 2.5" 15,000 RPM SAS HDD
- 3.5" 7,200 RPM Nearline SAS HDD
- 3.5" 7,200 RPM SATA HDD
Protocol Support
- File Level Protocol
- CIFS / SMB (Version 2.0/3.0)
- NFS (Version 2/3/4)
- AFP (Version 2.2.2)
- FTP / FXP (vsftp 2.3.4)
- WebDAV (httpd package 2.4.6)
- Block Level Protocol
- FC
- iSCSI
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
JB 3016A, JB 3060, JB 3060L
RAID Functionality
RAID 0, 1, 3, 5, 6, 10 (1+0), 30, 50, 60
Data Protection and Data Service
Default software features include:
- SED (Self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per volume/ 128 per pool
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
- File-level remote replication (Rsync)
Optional software features require additional license:
- SSD cache
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per pool
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
- Redundant, hot-swappable hardware modules
- Device mapper support
- Antivirus
- Trunk group support
- CacheSafe technology
- UPS
- WORM(For file level only)
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder access control - Quota management
- Integration with Microsoft Active Directory (AD) and LDAP
- Folder encryption with AES
OS Support
- Microsoft Windows Server 2016/2012R2/2012/2008R2/2008
- Windows 7 SP1/ Windows 8.1
- Red Hat Enterpise Linux
- Microsoft Windows Hyper-V
- SUSE Linux Enterprise
- Sun Solaris
- Mac OS X
- VMware
- Citrix XenServer
- OpenStack Cinder
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
GSe 3000/4000 Gen2
- Power supplies: 530W x2 (80 PLUS Bronze)
- AC voltage: 100VAC @10A to 240VAC @5A
- Frequency: 47-63 Hz
GSe 3060L/4060L Gen2
- Power supplies:1200W x 2 (80 PLUS Platinum)
- AC voltage: 100-127VAC@12.47A, 200-240VAC@7.08A
- Frequency: 47-63Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
447mm (W) x 175mm (H) x 500mm (D)
Package Dimensions
780mm (W) x 465mm (H) x 588mm (D)
FREE Delivery in UAE
Including Dubai, Abu Dhabi and SharjahNAS Experts
QNAP , Synology Top Sub Distributor and Service Partners in UAETOP Integrator
Second time Winner of GEC Awards in Data Storage Category UAEHonest and Credible
4.8+ Star Google rating. Thousands of satisfied customers in UAE
