Description, Specifications for Infortrend EonStor GSc Family
EonStor GSc Family
Hybrid Cloud Storage Appliances Designed to Streamline Enterprise Cloud Deployment and Access
EonStor GSc family of hybrid cloud storage appliances are designed for businesses to streamline cloud deployment and access by moving and managing data between local and cloud in a transparent manner. Integrated with cloud storage gateway, GSc offers differentiated features in cloud cache, cloud backup, and cloud tiering. GSc family inherited company's GS line of superior unified storage performance and available in 3 series.
Easy Cloud Integration with the Existing IT Environment and Applications
GSc provides enterprise IT applications with general file or block-level as well as the local and cloud data through the common protocols (e.g., NFS/CIFS/iSCSI/Fibre). Therefore, companies do not need to re-engineer existing IT systems or applications in order to connect to the cloud, greatly reduced the difficulty of cloud integration.
Faster Cloud Data Access
Since the cloud data is accessed through the Internet, the access speed is slow and latency is high, resulting in bad user experience. GSc can designate the local storage to act as cloud cache by placing frequently accessed data on the local side, allowing most of data access to be as fast as local.
Flexible Cache Policy Improves the Efficiency of Data Access
With more than 9 different types of cache policies, IT managers can set up the cache according to their needs. The default cache policy keeps the download data in the local cache, and if local space is insufficient the system will then delete less frequently accessed files. The high priority policy allows the data to be continuously retained in the local cache folder, such as frequently used work files. Uncacheable for write policy allows users to store data directly to the cloud instead of storing it in local cache, such as data backup files. The settings of these cache policies allow users to optimize use of local cache space and improve the efficiency of data access.
Secure and Protect Enterprise Data
Preventing data breach has always been the biggest concern for enterprises to put any data on the cloud. GSc supports data encryption with user keeping the encryption key, and ensures no public cloud data can be decrypted by anyone else. In addition, all transmissions to and from the cloud are SSL/TLS encrypted to ensure additional data security.
Cost-Saving on Cloud Storage and Network Bandwidth
The cost of cloud storage is based on the size of the data space in the cloud and the amount of bandwidth used. GSc with built-in data compression and deduplication features can effectively reduce the amount of cloud data space used, resulting in cost-savings for both network bandwidth and cloud storage.
Scalable Data Support
One major benefit of cloud storage is its flexible expandability. EonCloud Gateway supports PB level cloud storage capacity and billions of cloud files, completely meeting the massive data needs on the cloud of enterprises.
Access Control List (ACL) Synchronization via Cloud to Multiple Local Storages
When enterprise share files via the cloud to multiple local storages, maintaining access control of files have always been a challenging issue since cloud doesnt really have a file system that supports ACL and making IT management difficult. GSc provides an access control list synchronization mechanism under a multiple storage environment via cloud, thus resolving this challenging issue.
Cloud File Sharing
GSc provides high compatibility with existing IT environment by allowing Enterprises to access cloud data using the common protocols such as CIFS/NFS. Enterprises can adjust storage resources between local and cloud dynamically to achieve optimal balance between cost and benefit.
EonOnean Easy-to-Use Interface for Storage Management
With the constant evolution of storage platforms, the EonStor GSc adopted the all new EonOne management software to assist customers improve storage and service efficiency to increase productivity. Its intuitive interface and work flow design allows for centralized management of multiple systems, monitoring of performance and capacity usage, and completion of all related system configurations.
App Store on Docker
A Software Platform Allows User to Run and Manage Applications
The App Store features templates for various Docker container imagesartificial intelligence (AI), Internet of things (IoT), video surveillance, and much more. A template specifies a Docker container image along with preset parameters of the execution environment. By using a template, you can quickly deploy and run a Docker container with little fuss.
Hybrid Storage Arrays
From data growth, management of numerous hardware devices, to annual budget cuts, IT personnel need to face ever-changing challenges every day. The EonStor GSc can be set up as a hybrid cloud storage according to their needs, and combined with either SSD Cache or Automated Storage Tiering, it can utilize the high performance of SSDs and the large capacity of HDDs, while automatically moving frequently accessed data to SSDs to achieve simplified management and proper use of resources.
Rich Host Interface in GSc Family
As there is a wide range of enterprise applications, the required communication interface for each application may differ. Infortrend provides rich communication interfaces in SAN environments, including 8Gb/s FC, 16Gb/s FC, 32Gb/s FC, 1Gb/s iSCSI, 10Gb/s iSCSI, 40Gb/s iSCSI and 12Gb/s SAS to allow complete compatibility with all applications. Furthermore, 1GbE, 10GbE, 25GbE and 40GbE ports are also offered in network environments to provide fast and reliable data sharing and data transfer quality.
Multiple Form Factors to Choose From
Infortrend provides multiple specifications for storage systems and expansion enclosures such as 2U 12-bay, 2U 24-bay, 2U 25-bay, 3U 16-bay, 4U 24-bay, 4U 60-bay, etc. even in the same series, so that enterprises can choose whats perfect for them according to their current or future needs.
Modular Design
From power supplies, fans, controllers, to host boards, all Infortrend products adopt modular designs to lower maintenance complexity and provide fast, precise technical support and RMA services, so that your storage system is free from any down time to maintain non-stop services and increase productivity and competitiveness.
EonStor GSc 2000
Comprehensive hybrid cloud storage appliance with exceptional cost performance
EonStor GSc 2000 Series speeds up enterprise cloud deployment and access by integrating local storage and cloud into one unified storage. By maintaining compatibility with existing IT environment, GSc simplifies cloud setup and offers cloud data access to both file and block-level using common protocols, thus greatly reduced the difficulty to reconfigure.
Model
- GSc 2012
- GSc 2024B
- GSc 2016
- GSc 2024
Form Factor

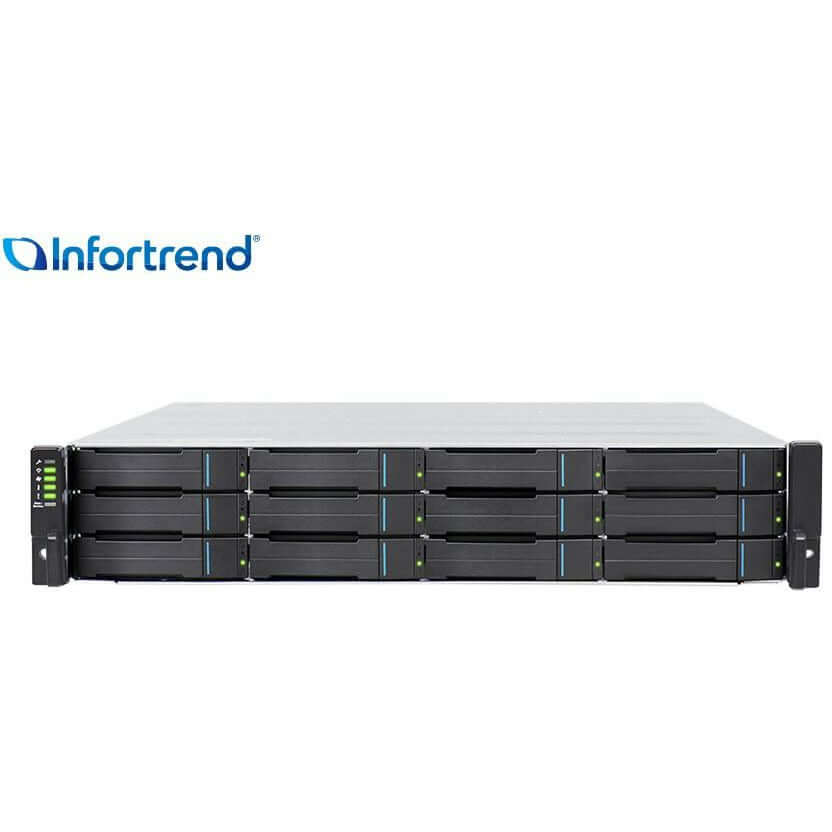

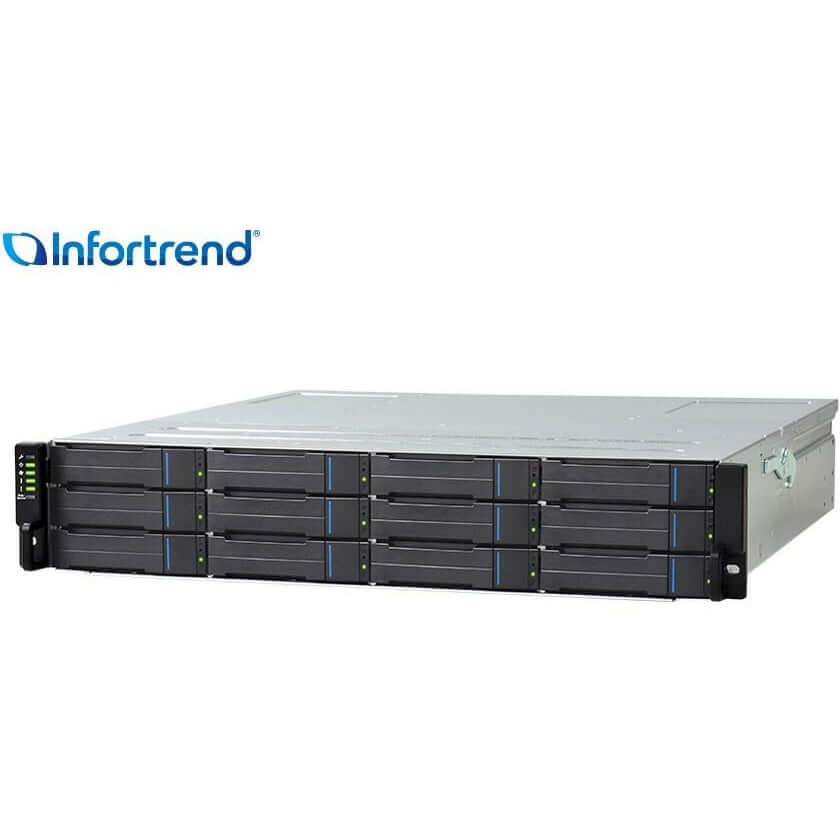

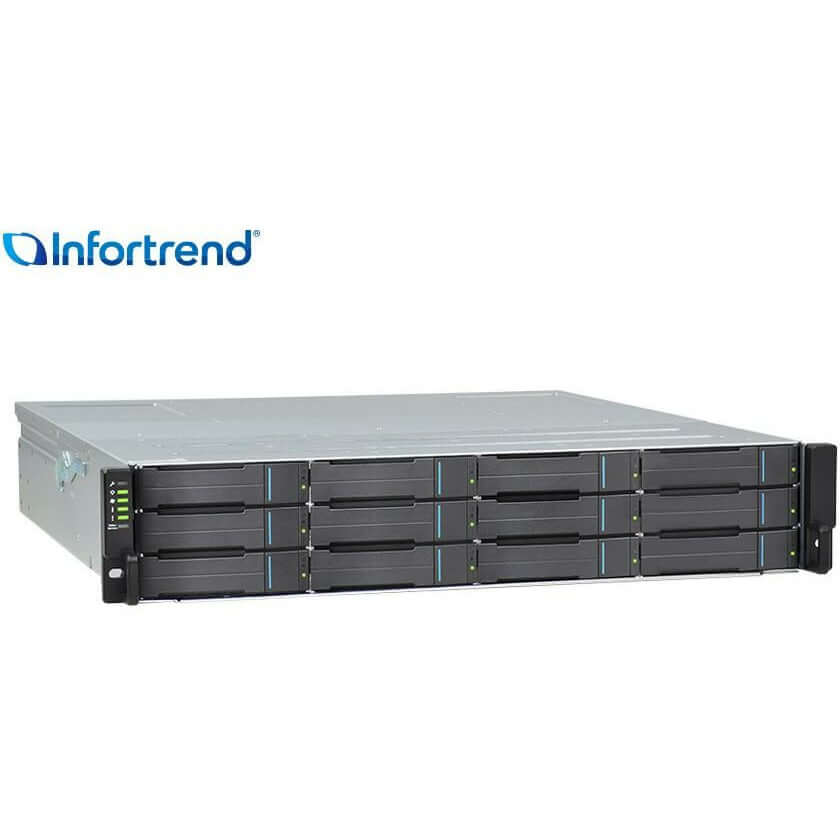

- 2U 12-bay GSc 2012
- 2U 24-bay GSc 2024B
- 3U 16-bay GSc 2016
- 4U 24-bay GSc 2024
Controller
Dual redundant controllers

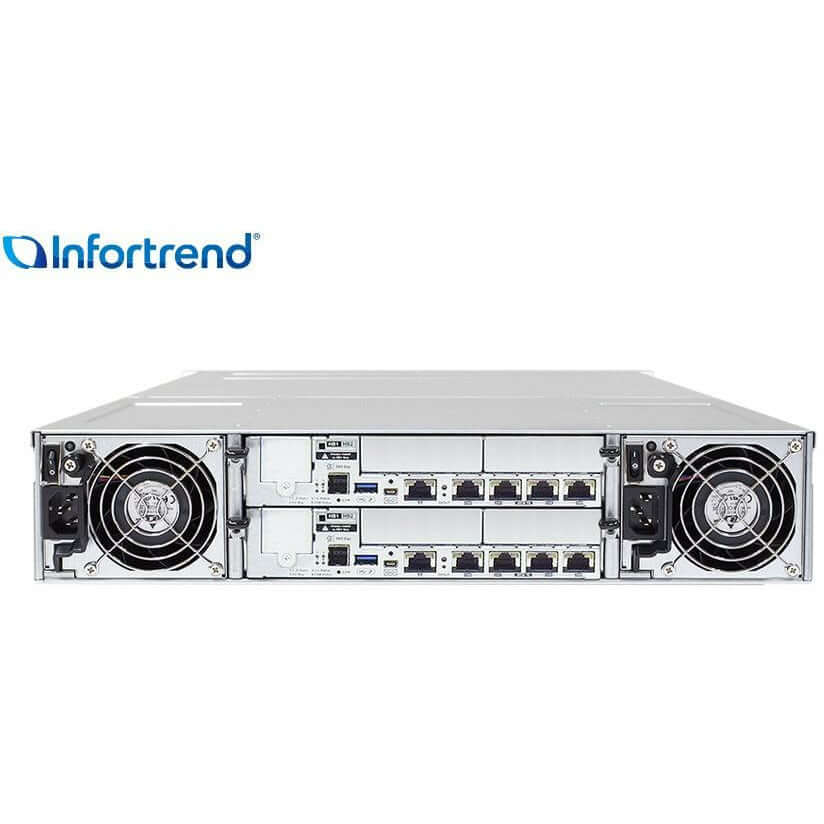

Host Ports
- Onboard host ports
- 8 x 1Gb/s iSCSI ports (4 per controller)
- More host options:
- 16 x 8Gb/s Fibre Channel ports (8 per controller)
- 8 x 16Gb/s Fibre Channel ports (4 per controller)
- 16 x 16Gb/s Fibre Channel ports (8 per controller, No Remote Replication support)
- 16 x 10Gb/s FCoE ports (8 per controller)
- 16 x 1Gb/s iSCSI ports (8 per controller)
- 8 or 16 x 10Gb/s iSCSI ports (SFP+) (4 or 8 per controller)
- 8 x 10Gb/s iSCSI ports (RJ-45) (4 per controller)
- 8 x 25Gb/s iSCSI ports (SFP28) (4 per controller)
- 8 x 40Gb/s iSCSI ports (QSFP+) (4 per controller)
- 8 x 56Gb/s InfiniBand ports (4 per controller) - for Linux only, block level only
- 8 x 12Gb/s SAS ports (4 per controller)
Cache Memory
Default DDR4 16GB, up to 32GB, 64GB or 128GB
Cache Backup Techniques
Super Capacitor + Flash module
Maximum Number of Drives
Via expansion enclosure: 448 and 896 (with expansion board)
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSDs
- 2.5" SATA SSDs
- 2.5" 10,000 RPM SAS drives
- 2.5" 15,000 RPM SAS drives
- 3.5" 7,200 RPM Nearline SAS drives
- 3.5" 7,200 RPM SATA drives
- MUX board required when using SATA drives for dual controllers
Protocol Support
- File Level Protocol
- CIFS / SMB
- AFP
- NFS
- FTP
- FXP
- WebDAV
- Block Level Protocol
- FC
- FCoE
- iSCSI
- InfiniBand
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
Please refer to datasheet
RAID Functionality
- Global, designated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- RAID migration
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Protection and Data Service
Default software features include:
- SED (Self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per volume/ 128 per system
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
- File-level remote replication (Rsync)
Optional software features require additional license:
- SSD cache
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per system
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules/ CacheSafe technology/ Device mapper support
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control - Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List - Support Windows Active Directory Authentication
- Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer - LDAP on Linux
OS Support
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
- NFS protocol running on VMWare environment is currently not supported
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
- Power supplies: Redundant/hot-swappable 460W x 2
- AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
- Frequency: 50-60 Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
- GSc 2012 : 447mm (W) x 88mm (H) x 500mm (D)
- GSc 2024B : 447mm (W) x 88mm (H) x 500mm (D)
- GSc 2016 : 447mm (W) x 130mm (H) x 500mm (D)
- GSc 2024 : 447mm (W) x 175mm (H) x 500mm (D)
(Without chassis ears / protrusions)
Weight (Without HDDs)
- GSc 2012
14.5kg/ 31.97lbs - GSc 2024B
14.64kg/ 32.28lbs - GSc 2016
17.44kg/ 38.45lbs - GSc 2024
19.18kg/ 42.28lbs
Package Dimensions
- GSc 2012 : 780mm (W) x 379mm (H) x 588mm (D)
- GSc 2024B : 780mm (W) x 338mm (H) x 588mm (D)
- GSc 2016 : 780mm (W) x 423mm (H) x 588mm (D)
- GSc 2024 : 780mm (W) x 465mm (H) x 588mm (D)
EonStor GSc 3000
Comprehensive hybrid cloud storage appliance with high availability
EonStor GSc 3000 Series enhances the speed and performance of enterprise cloud access with high availability local storage and cloud cache feature. Enterprises with data already on the cloud can speed-up cloud access by designating the local storage as cache. Cloud backup feature also enables local data to take periodic snapshots to the cloud for remote backup.
Model
- GSc 3012
- GSc 3024B
- GSc 3025B
- GSc 3016
- GSc 3024
- GSc 3060
Form Factor
- 2U 12-bay
- 2U 24-bay
- 2U 25-bay
- 3U 16-bay
- 4U 24-bay
- 4U 60-bay
Controller
Dual redundant controllers
Host Ports
- Onboard host ports
- 4 x 1Gb/s iSCSI ports (2 per controller)
- 4 x 10Gb/s iSCSI ports (2 per controller)
- More host options:
- 16 x 8Gb/s Fibre Channel ports (8 per controller)
- 8 x 16Gb/s Fibre Channel ports (4 per controller)
- 16 x 16Gb/s Fibre Channel ports (8 per controller, No Remote Replication support)
- 16 x 10Gb/s FCoE ports (8 per controller)
- 16 x 1Gb/s iSCSI ports (8 per controller)
- 8 or 16 x 10Gb/s iSCSI ports (SFP+) (4 or 8 per controller)
- 8 x 10Gb/s iSCSI ports (RJ-45) (4 per controller)
- 8 x 25Gb/s iSCSI ports (SFP28) (4 per controller)
- 8 x 40Gb/s iSCSI ports (QSFP+) (4 per controller)
- 8 x 56Gb/s InfiniBand ports (4 per controller) - for Linux only, block level only
- 8 x 12Gb/s SAS ports (4 per controller)
Cache Memory
Default DDR4 32GB, up to 64GB, 128GB or 256GB
Cache Backup Techniques
Super Capacitor + Flash module
Maximum Number of Drives
Via expansion enclosure: 448 and 896 (with expansion board)
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSDs
- 2.5" SATA SSDs
- 2.5" 10,000 RPM SAS drives
- 2.5" 15,000 RPM SAS drives
- 3.5" 7,200 RPM Nearline SAS drives
- 3.5" 7,200 RPM SATA drives
- MUX board required when using SATA drives for dual controllers
Protocol Support
- File Level Protocol
- CIFS / SMB
- AFP
- NFS
- FTP
- FXP
- WebDAV
- Block Level Protocol
- FC
- FCoE
- iSCSI
- InfiniBand
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
Please refer to datasheet
RAID Functionality
- Global, designated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- RAID migration
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Protection and Data Service
Default software features include:
- SED (Self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per volume/ 128 per system
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
- File-level remote replication (Rsync)
Optional software features require additional license:
- SSD cache
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per system
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules/ CacheSafe technology/ Device mapper support
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control - Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List - Support Windows Active Directory Authentication
- Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer - LDAP on Linux
OS Support
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
- NFS protocol running on VMWare environment is currently not supported
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
GSc 3000 (Excluded GSc 3060L)
- Power supplies: Redundant/hot-swappable 530W x 2
- AC voltage: 100VAC @ 10A to 240VAC @ 5A with PFC (auto-switching)
- Frequency: 47-63 Hz
GSc 3060L
- Power supplies:Redundant/hot-swappable 1200W x 2
- AC voltage: 100-127VAC/12.47A, 200-240VAC/7.08A with PFC (auto-switching)
- Frequency: 47-63Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
- GSc 3012 : 447mm (W) x 88mm (H) x 500mm (D)
- GSc 3024B : 447mm (W) x 88mm (H) x 500mm (D)
- GSc 3025B : 447mm (W) x 88mm (H) x 500mm (D)
- GSc 3016 : 447mm (W) x 130mm (H) x 500mm (D)
- GSc 3024 : 447mm (W) x 175mm (H) x 500mm (D)
- GSc 3060 : 448mm (W) x 176mm (H) x 840mm (D)
(Without chassis ears / protrusions)
Weight (Without HDDs)
- GSc 3012
14.5kg/ 31.97lbs - GSc 3024B
14.64kg/ 32.28lbs - GSc 3016
17.44kg/ 38.45lbs - GSc 3024
19.18kg/ 42.28lbs
Package Dimensions
- GSc 3012 : 780mm (W) x 379mm (H) x 588mm (D)
- GSc 3024B : 780mm (W) x 338mm (H) x 588mm (D)
- GSc 3025B : 780mm (W) x 340mm (H) x 588mm (D)
- GSc 3016 : 780mm (W) x 423mm (H) x 588mm (D)
- GSc 3024 : 780mm (W) x 465mm (H) x 588mm (D)
- GSc 3060 : 620mm (W) x 460mm (H) x 1140mm (D)
EonStor GSc 5000
High Performance Massive Data Solution for Advanced Cloud Workloads
EonStor GSc 5000 series is the high performance massive data solutions designed for advanced cloud workload such as Big Data, IOT, AI, gene data analysis, video analytics, etc., with massive data (over 100TB) that needs to be uploaded to the cloud for computation purpose or target specific performance requirements.
Model
- GSc 5200
- GSc 5100
Form Factor
4U (No internal bay. Expansion enclosure required.)
Controller
Dual redundant controllers
CPU Type
- GS 5200 :
- 4 x Intel Xeon E5 8-core
- GS 5100 :
- 2 x Intel Xeon E5 8-core
Host Ports
- GSc 5200 Host options :
- 64 x 8Gb/s Fibre Channel ports (32 per controller)
- 32 x 16Gb/s Fibre Channel ports (16 per controller)
- 64 x 16Gb/s Fibre Channel ports (32 per controller, No Remote Replication support)
- 64 x 10Gb/s FCoE ports (32 per controller)
- 64 x 1Gb/s iSCSI ports (32 per controller)
- 64 x 10Gb/s iSCSI ports (SFP+) (32 per controller)
- 32 x 10Gb/s iSCSI ports (RJ-45) (16 per controller)
- 32 x 40Gb/s iSCSI ports (QSFP+) (16 per controller)
- 32 x 56Gb/s Infiniband ports (16 per controller) - for Linux only, block level only
- 32 x 12Gb/s SAS ports (16 per controller)
- GSc 5100 Host options :
- 16 x 8Gb/s Fibre Channel ports (8 per controller)
- 8 x 16Gb/s Fibre Channel ports (4 per controller)
- 16 x 16Gb/s Fibre Channel ports (8 per controller, No Remote Replication support)
- 16 x 10Gb/s FCoE ports (8 per controller)
- 16 x 1Gb/s iSCSI ports (8 per controller)
- 16 x 10Gb/s iSCSI ports (SFP+) (8 per controller)
- 8 x 10Gb/s iSCSI ports (RJ-45) (4 per controller)
- 8 x 40Gb/s iSCSI ports (QSFP+) (4 per controller)
- 8 x 56Gb/s Infiniband ports (4 per controller) - for Linux only, block level only
- 8 x 12Gb/s SAS ports (4 per controller)
Cache Memory
- GSc 5200 : Default DDR4 128GB, up to 256GB, 512GB or 1024GB
- GSc 5100 : Default DDR4 128GB, up to 256GB or 512GB
Cache Backup Techniques
BBU + Flash module
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Supported Drives
- 2.5" SAS SSDs
- 2.5" SATA SSDs
- 2.5" 10,000 RPM SAS drives
- 2.5" 15,000 RPM SAS drives
- 3.5" 7,200 RPM Nearline SAS drives
Protocol Support
- File Level Protocol
- CIFS / SMB
- AFP
- NFS
- FTP
- FXP
- WebDAV
- Block Level Protocol
- FC
- FCoE
- iSCSI
- InfiniBand
- SAS (Exp. Board)
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Maximum Number of Drives
- Via expansion enclosure: 1792 (with expansion board)
Corresponding Expansion Enclosure
Please refer to datasheet
RAID Functionality
- Global, designated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- RAID migration
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Protection and Data Service
Default software features include:
- SED (Self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per volume/ 128 per system
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
- File-level remote replication (Rsync)
Optional software features require additional license:
- SSD cache
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per system
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules/ CacheSafe technology/ Device mapper support
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control - Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List - Support Windows Active Directory Authentication
- Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer - LDAP on Linux
OS Support
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
- NFS protocol running on VMWare environment is currently not supported
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
PSU
- Power supplies: Redundant/hot-swappable 1200W x 2
- AC voltage: 100-127VAC/12.47A, 200-240VAC/7.08A with PFC (auto-switching)
- Frequency: 47-63Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
- GSc 5100 : 447mm(W)x175mm(H)x577mm (D)
- GSc 5200 : 447mm(W)x175mm(H)x577mm (D)
(Without chassis ears / protrusions)
Weight (Without HDDs)
- GSc 5200
29.23kg/64.44lbs
Package Dimensions
591mm (W) x 295mm (H) x 800mm (D)
