Description, Specifications for Infortrend EonStor GSa Family

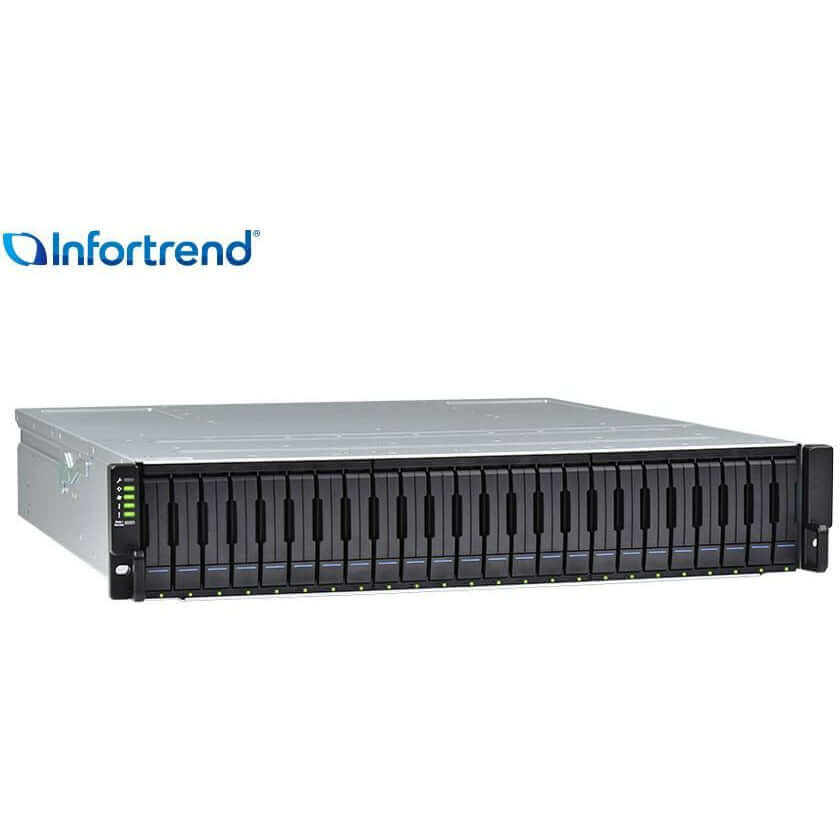

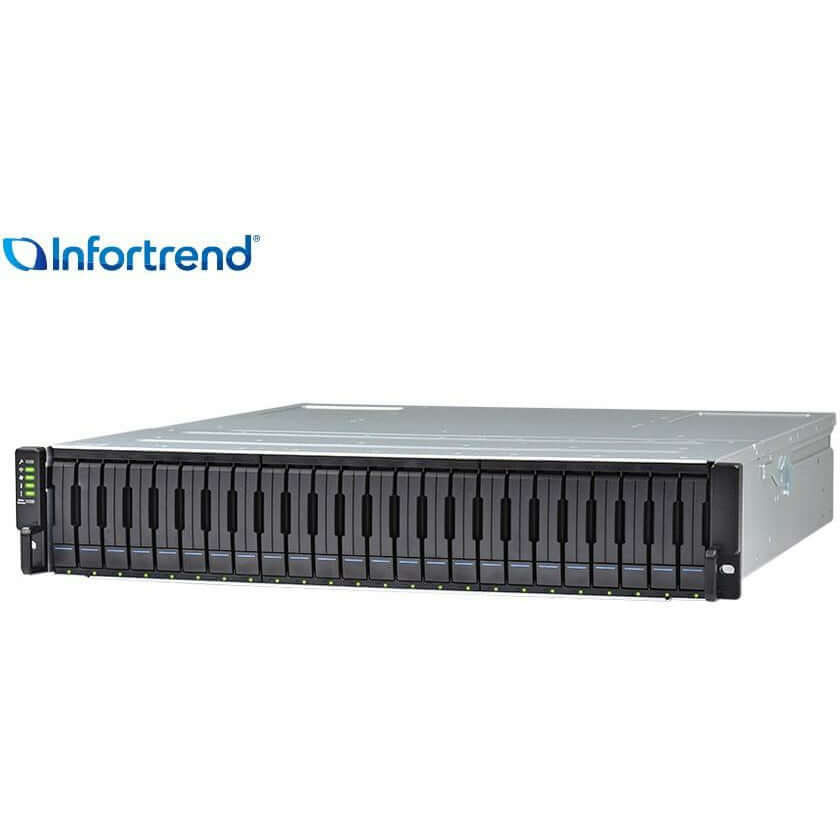

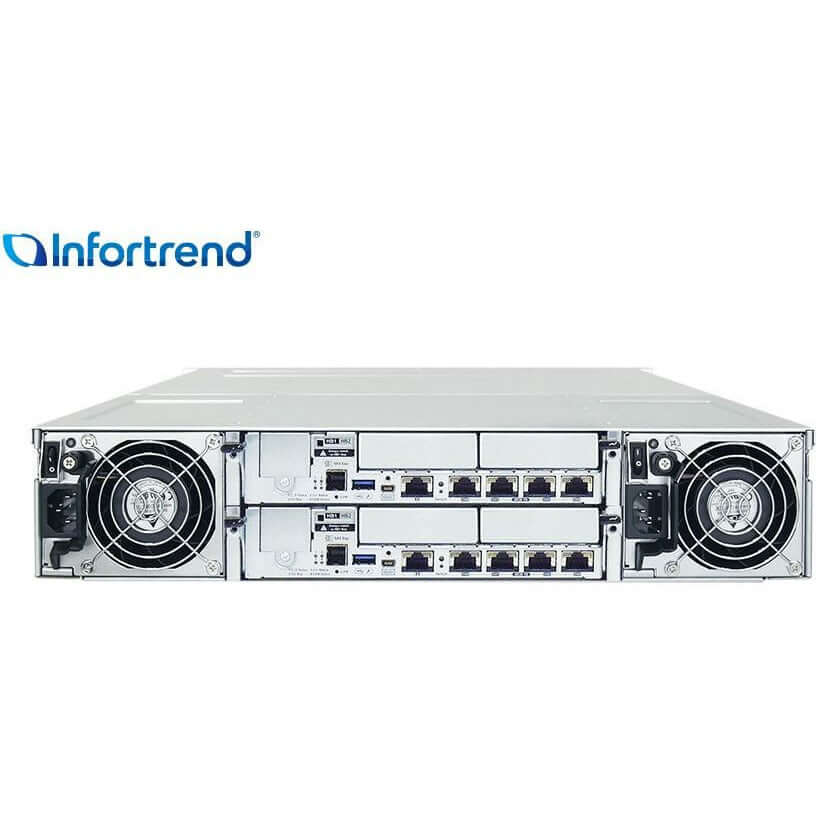

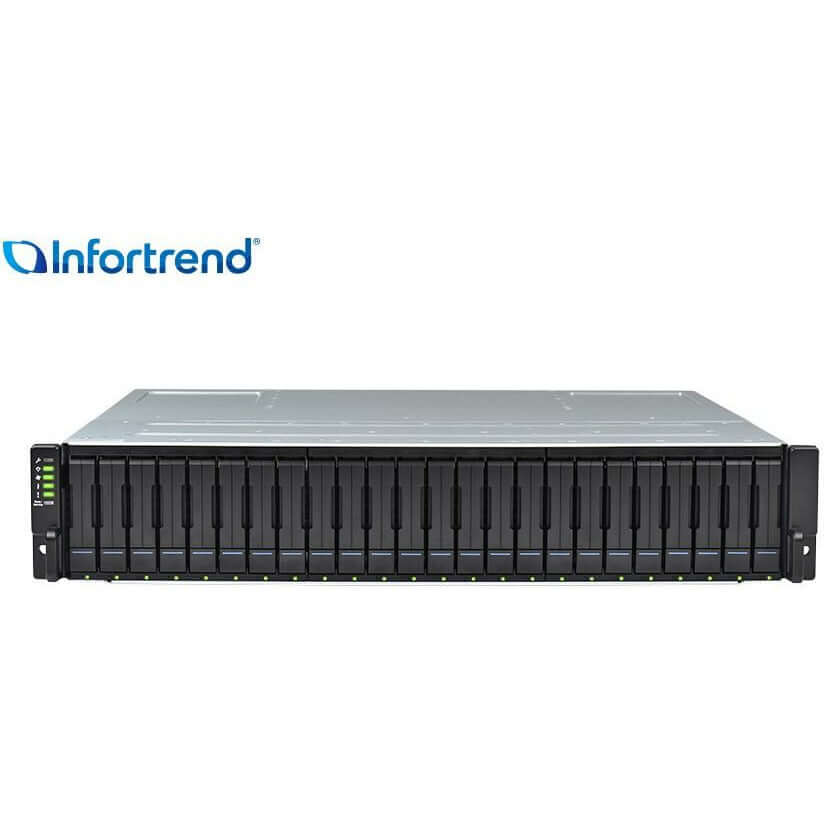

EonStor GSa Family
Wide-ranging All Flash Array Choices for Modernized Data Center
Infortrend GSa all flash unified storage is designed to deliver optimal SSD performance with low latency, extend SSD lifespan, and wider product selections in terms of performance, connectivity, and form factor choices to meet the demanding requirements in a modern data center. GSa can handle large amounts of I/O, high amount of file transfer under high workloads, and can reach more than 700K IOPS for random reads with a response time of less than 0.5 milliseconds.
Enterprise All Flash Array Storage
GSa 2000 is a great-value cost/performance solution providing power of flash storage and great compatibility with nearly any organization. GSa 3000 Gen2 and GSa 4000 Gen2 series are next-generation optimized solutions offering high acceleration for enterprise applications, such as database, virtualization, VDI, Microsoft Exchange, and M&E-related applications. GSa 5000 series offers the highest performance all-flash technology designed for extreme I/O workloads.
Powerful Unified Storage Performance and Reliability
GSa is a unified storage system that supports both block and file-level applications, and incorporates Infortrends unique block-device design and highly reliable RAID technology to deliver powerful performance and reliability.
Optimized SSD Performance with Low Latency
GSa family provides optimal SSD performance with low latency and extensive SSD lifespan, and can handle more than 700K IOPS for random reads with a response time of less than 0.5 milliseconds. It is ideal for demanding enterprise workloads such as database, virtualization, VDI, Microsoft Exchange, and media/entertainmentrelated applications.
High Availability with Redundancy
GSa line of all-flash arrays are designed with no single point of failure technology (redundant controller hardware) for redundancy and include our enhanced firmware with Intelligent Drive Recovery (IDR) and SSD lifespan monitoring features to ensure data availability. It also supports SAS to SATA bridge board for compatibility with cost-effective SATA SSDs.
EonOnean Easy-to-use Interface for Storage Management
EonOne offers easy-to-use and web-based management interface that can be operated remotely via web browser, reducing the storage management complexity. Its intuitive interface design allows centralized management of multiple systems, monitoring of performance and capacity usage, and completion of all systemrelated configurations.
App Store on Docker
A Software Platform Allows User to Run and Manage Applications
The App Store features templates for various Docker container imagesartificial intelligence (AI), Internet of things (IoT), video surveillance, and much more. A template specifies a Docker container image along with preset parameters of the execution environment. By using a template, you can quickly deploy and run a Docker container with little fuss.
Rich Selections of Host Interfaces
GSa offers versatile host interfaces: 8Gb/s FC, 16Gb/s FC, 32Gb/s FC, 1Gb/s iSCSI, 10Gb/s iSCSI, 40Gb/s iSCSI and 12Gb/s SAS. Enterprises can choose according to their needs. Furthermore, 1GbE, 10GbE, 25GbE and 40GbE ports are also offered for fast and reliable data sharing and transfer in network environments.
Cloud Ready for Future-proof Expansion
Anticipating the exponential growth of enterprise data, GSa offers optional cloud gateway that connects to cloud services such as Amazon S3, Microsoft Azure, OpenStack Swift, Google Cloud, Wasabi Cloud, Alibaba Cloud, Baidu Cloud and Tencent Cloud for future-proof support of capacity expansion or remotebackup to the cloud.
Cache Backup Module (CBM) to Prevent Data Loss
When unexpected power failures occur, Infortrend CBM will kick-in and use the backup power to store cache data to flash module and prevent potential data loss. Once external power is back on, the data in the flash module will then be restored to drives. CBM can effectively reduce data loss.
Modular Design to Lower Maintenance Complexity
GSa family offers the modular design of the power supplies, fans, controllers, host boards, and other storage components to lower maintenance complexity. If any module fails, Enterprises can simply replace with a functional one. Coupled with quick technical support and RMA services, your storage system is well-protected from any down time, resulting in better productivity and reliability.
EonStor GSa 2000
All Flash Arrays - Leading Edge SSD Performance and Reliability
The GSa 2000 2U 24-bay delivers leading edge all-flash performance and provides no single point of failure technology (redundant controller hardware) with Intelligent Drive Recovery (IDR) and SSD lifespan monitoring features to ensure data availability. It also supports SAS to SATA bridge board for compatibility with cost-effective SATA SSDs.
Model
- GSa 2024
Form Factor
2U 24-bay
Controller
Dual redundant controllers
Host Ports
- Onboard ports
- 8 x 1Gb/s iSCSI ports (4 per controller)
- More host options:
- 16 x 8Gb/s Fibre Channel ports (8 per controller)
- 8 x 16Gb/s Fibre Channel ports (4 per controller)
- 16 x 16Gb/s Fibre Channel ports (8 per controller, No remote replication support)
- 16 x 10Gb/s FCoE ports (8 per controller)
- 16 x 1Gb/s iSCSI ports (8 per controller)
- 8 or 16 x 10Gb/s iSCSI ports (SFP+) (4 or 8 per controller)
- 8 x 10Gb/s iSCSI ports (RJ-45) (4 per controller)
- 8 x 25Gb/s iSCSI ports (SFP28) (4 per controller)
- 8 x 40Gb/s iSCSI ports(QSFP+) (4 per controller)
- 8 x 56Gb/s InfiniBand (4 per controller)for Linux and block-level data only
- 8 x 12Gb/s SAS (4 per controller)
Cache Memory
Default DDR4 16GB, up to 32GB, 64GB or 128GB
Cache Backup Techniques
Super Capacitor + Flash module
Maximum Number of Drives
- Per system: 24
- Via expansion enclosure: 384 and 744 (with expansion board)
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Disk Support
- 2.5" SATA SSD
- 2.5" SAS SSD
Protocol Support
- File Level Protocol
- CIFS / SMB
- AFP
- NFS
- FTP
- FXP
- WebDAV
- Block Level Protocol
- FC
- FCoE
- iSCSI
- InfiniBand
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
Please refer to datasheet
RAID Functionality
- Global, designated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- RAID migration
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Protection and Data Service
Default software features include:
- Thin-provisioning
- File-level remote replication (Rsync)
- Snapshot: 64 per volume/ 128 per system
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
Optional software features require additional license:
- Advanced snapshot: 256 per pool / 4096 per system
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Relication pairs per system: 256
- Advanced block-level remote replicationReplication pairs per source volume: 8 ; Relication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules/ CacheSafe technology/ Device mapper support
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control - Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List - Support Windows Active Directory Authentication
- Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer - LDAP on Linux
OS Support
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
- NFS protocol running on VMWare environment is currently not supported
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
- Power supplies: Redundant/hot-swappable 460W x 2
- AC voltage: 100VAC @ 8A to 240VAC @ 4A with PFC (auto-switching)
- Frequency: 50-60 Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
448mm (W) x 88mm (H) x 500mm (D)
**Without chassis ears / protrusions
Weight
17.85kg/39.35lbs(with SDDs)
Package Dimensions
780mm (W) x 340mm (H) x 580mm (D)
EonStor GSa 3000 Gen2
Next-Gen All Flash Array NAS/SAN/Cloud Storage
EonStor GSa 3000 Gen2 is a 2U 25-bay unified all-flash array storage integrating NAS, SAN, object storage and cloud gateway into a single system. Equipped with Intels advanced CPU, GSa 3000 Gen2 delivers optimized SSD performance of 900K IOPS for random reads and very low response time. It offers rich data services, dual host board, versatile host connectivity for simplified management and deployment in various data environments.
Model
- GSa 3025 Gen2
Form Factor
2U 25-bay
Controller
Dual-redundant/Single upgradable to redundant
Host Ports
- Onboard host ports
- 8 x 10GbE ports (SFP+)
- More host options:
- 8 x 16Gb/s Fibre Channel ports
- 4 x 32Gb/s Fibre Channel ports
- 4 x 10GbE ports (SFP+)
- 4 x 10GbE ports (RJ-45)
- 4 x 25GbE ports (SFP28)
- 4 x 12Gb/s SAS ports
Cache Memory
Default DDR4 16GB, up to 32GB, 64GB, 128GB or 256GB
Cache Backup Techniques
Super Capacitor + Flash module
Maximum Number of Drives
- Per system: 25
- With expansion board: 896
Drive Connectivity
12Gb/s SAS
Supported Drives
Bundled SSD
Protocol Support
- File Level Protocol
- CIFS / SMB (Version 2.0/3.0)
- NFS (Version 2/3/4)
- AFP (Version 2.2.2)
- FTP / FXP (vsftp 2.3.4)
- WebDAV (httpd package 2.4.6)
- Block Level Protocol
- FC
- iSCSI
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
JB 3025BA
RAID Functionality
RAID 0, 1, 3, 5, 6, 10 (1+0), 30, 50, 60
Data Protection and Data Service
Default software features include:
- SED (Self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per volume/ 128 per pool
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
- File-level remote replication (Rsync)
Optional software features require additional license:
- SSD cache
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per pool
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
Availability and Reliability
- Redundant, hot-swappable hardware modules
- Device mapper support
- Antivirus
- Trunk group support
- CacheSafe technology
- UPS
- WORM(For file level only)
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder access control - Quota management
- Integration with Microsoft Active Directory (AD) and LDAP
- Folder encryption with AES
OS Support
- Microsoft Windows Server 2016/2012R2/2012/2008R2/2008
- Windows 7 SP1/ Windows 8.1
- Red Hat Enterpise Linux
- Microsoft Windows Hyper-V
- SUSE Linux Enterprise
- Sun Solaris
- Mac OS X
- VMware
- Citrix XenServer
- OpenStack Cinder
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
- Power supplies: Two 530W (80 PLUS Bronze)
- AC voltage: 100VAC @ 10A to 240VAC @ 5A
- Frequency: 47-63 Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
447mm (W) x 88mm (H) x 500mm (D)
**Without chassis ears / protrusions
Package Dimensions
780mm (W) x 340mm (H) x 588mm (D)
EonStor GSa 4000 Gen2
All Flash Unified Storage with Lightning Speed SSD Performance
EonStor GSa 4000 Gen2 is a high availability all-flash array unified storage that integrates NAS, SAN, Object storage with cloud gateway. With the latest Intel CPU platform, GSa 4000 Gen2 delivers lightning speed SSD performance of 900K IOPS and 10,000/5,000 MB/s Read/Write speed with the lowest response time. It comes in 2U 25-bay high density form factor enabling users to optimize data center footprint and energy efficiency.
Model
- GSa 4025 Gen2
Form Factor
2U 25-bay
Controller
Dual-redundant/Single upgradable to redundant
Host Ports
- Onboard host ports
- 8 x 10GbE ports (SFP+)
- More host options:
- 8 x 16Gb/s Fibre Channel ports
- 4 x 32Gb/s Fibre Channel ports
- 4 x 10GbE ports (SFP+)
- 4 x 10GbE ports (RJ-45)
- 4 x 25GbE ports (SFP28)
- 4 x 12Gb/s SAS ports
Cache Memory
Default DDR4 16GB, up to 32GB, 64GB, 128GB or 256GB
Cache Backup Techniques
Super Capacitor + Flash module
Maximum Number of Drives
- Per system: 25
- With expansion board: 896
Drive Connectivity
12Gb/s SAS
Supported Drives
Bundled SSD
Protocol Support
- File Level Protocol
- CIFS / SMB (Version 2.0/3.0)
- NFS (Version 2/3/4)
- AFP (Version 2.2.2)
- FTP / FXP (vsftp 2.3.4)
- WebDAV (httpd package 2.4.6)
- Block Level Protocol
- FC
- iSCSI
- SAS
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Corresponding Expansion Enclosure
JB 3025BA
RAID Functionality
RAID 0, 1, 3, 5, 6, 10 (1+0), 30, 50, 60
Data Protection and Data Service
Default software features include:
- SED (Self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per volume/ 128 per pool
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
- File-level remote replication (Rsync)
Optional software features require additional license:
- SSD cache
- Automated tiering (2/ 4 tiers)
- Advanced snapshot: 256 per volume/ 4096 per pool
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Replication pairs per system: 256
- Advanced block-level remote replication: Replication pairs per source volume: 8 ; Replication pairs per system: 64
Availability and Reliability
- Redundant, hot-swappable hardware modules
- Device mapper support
- Antivirus
- Trunk group support
- CacheSafe technology
- UPS
- WORM(For file level only)
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder access control - Quota management
- Integration with Microsoft Active Directory (AD) and LDAP
- Folder encryption with AES
OS Support
- Microsoft Windows Server 2016/2012R2/2012/2008R2/2008
- Windows 7 SP1/ Windows 8.1
- Red Hat Enterpise Linux
- Microsoft Windows Hyper-V
- SUSE Linux Enterprise
- Sun Solaris
- Mac OS X
- VMware
- Citrix XenServer
- OpenStack Cinder
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
Power
- Power supplies: Two 530W (80 PLUS Bronze)
- AC voltage: 100VAC @ 10A to 240VAC @ 5A
- Frequency: 47-63 Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
447mm (W) x 88mm (H) x 500mm (D)
**Without chassis ears / protrusions
Package Dimensions
780mm (W) x 340mm (H) x 588mm (D)
EonStor GSa 5000
All Flash Arrays - Extreme Performance and High Density Storage
This GSa 5000 4U offers the highest performance all-flash technology designed for extreme I/O workloads and offers wide range of performance, connectivity, and scalability options.
Model
- GSa 5200
- GSa 5100
Form Factor
4U (No internal bay. Expansion enclosure required.)
Controller
Dual redundant controllers
Host Board
- GSa 5200 Host options :
- 64 x 8Gb/s Fibre Channel ports (32 per controller)
- 32 x 16Gb/s Fibre Channel ports (16 per controller)
- 64 x 16Gb/s Fibre Channel ports (32 per controller, No Remote Replication support)
- 64 x 10Gb/s FCoE ports (32 per controller)
- 64 x 1Gb/s iSCSI ports (32 per controller)
- 64 x 10Gb/s iSCSI ports (SFP+) (32 per controller)
- 32 x 10Gb/s iSCSI ports (RJ-45) (16 per controller)
- 32 x 40Gb/s iSCSI ports (QSFP+) (16 per controller)
- 32 x 56Gb/s Infiniband ports (16 per controller) - for Linux only, block level only
- 32 x 12Gb/s SAS ports (16 per controller)
- GSa 5100 Host options :
- 16 x 8Gb/s Fibre Channel ports (8 per controller)
- 8 x 16Gb/s Fibre Channel ports (4 per controller)
- 16 x 16Gb/s Fibre Channel ports (8 per controller, No Remote Replication support)
- 16 x 10Gb/s FCoE ports (8 per controller)
- 16 x 1Gb/s iSCSI ports (8 per controller)
- 16 x 10Gb/s iSCSI ports (SFP+) (8 per controller)
- 8 x 10Gb/s iSCSI ports (RJ-45) (4 per controller)
- 8 x 40Gb/s iSCSI ports (QSFP+) (4 per controller)
- 8 x 56Gb/s Infiniband ports (4 per controller) - for Linux only, block level only
- 8 x 12Gb/s SAS ports (4 per controller)
Cache Memory
- GSa 5200 : Default DDR4 64GB, up to 128GB, 256GB, 512GB or 1024GB
- GSa 5100 : Default DDR4 32GB, up to 64GB, 128GB, 256GB or 512GB
Cache Backup Techniques
BBU + Flash module
Drive Connectivity
12Gb/s SAS
Drive Advanced Features
S.M.A.R.T. support/ Automatic bad-sector reassignment/ Dedicated bandwidth to each connected drive
Disk Support
- 2.5" SATA SSD
- 2.5" SAS SSD
Protocol Support
- File Level Protocol
- CIFS / SMB
- AFP
- NFS
- FTP
- FXP
- WebDAV
- Block Level Protocol
- FC
- FCoE
- iSCSI
- InfiniBand
- SAS (Exp. Board)
- Object Protocol
- RESTful API
Cloud Gateway
EonCloud supports integration with the following cloud providers :
- Amazon S3
- Microsoft Azure
- Alibaba Cloud
- Google Cloud
- Baidu Cloud
- Tencent Cloud
- OpenStack
- etc.
Maximum Number of Drives
Via expansion enclosure: 750 (with expansion board)
Corresponding Expansion Enclosure
Please refer to datasheet
RAID Functionality
- Global, designated or enclosure hot-spare
- RAID levels supported : RAID 0, 1, 3, 5, 6, 10, 30, 50, 60
- Online expansion by:
- Adding new drives
- Copying and replacing drives with drives of larger capacity
- RAID migration
- Configurable stripe size and write policy per system
- Intelligent drive handling
- In degraded mode: skips irreparable blocks to continue rebuild
- In normal operation: data-block verification and repair
Data Protection and Data Service
Default software features include:
- Thin-provisioning
- File-level remote replication (Rsync)
- Snapshot: 64 per volume/ 128 per system
- Block-level local replication: Replication pairs per source volume: 4; Replication pairs per system: 16
Optional software features require additional license:
- Advanced snapshot: 256 per pool / 4096 per system
- Advanced block-level local replication: Replication pairs per source volume: 8 ; Relication pairs per system: 256
- Advanced block-level remote replicationReplication pairs per source volume: 8 ; Relication pairs per system: 64
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Availability and Reliability
Redundant, hot-swappable hardware modules/ CacheSafe technology/ Device mapper support
Notification
Various event notification methods including email and SNMP trap.
Management
- Web-based EonOne management software
- Automated cache flush and caching mode operation per enclosure status
- Module status LED indicators: component presence detection & thermal sensors via I2C bus
- Storage Resource Management to analyze history records of resource usage
- Automate repeatable management tasks by flexible workflow
Network Configuration
- IPv6 support
- Fixed or dynamic IP address
- Dual Gigabit Ethernet with Jumbo Frame
- Port trunking/ NIC teaming/ Link aggregation (IEEE 802.3ad)
- DHCP client
- MPIO, MC/S support
Access Right Management
- User account management
- Group management
- Folder management
- Folder and subfolder access control - Folder quota
- Comprehensive access control action items
- All Controls, Read, Read and Run, Write, Modify, List - Support Windows Active Directory Authentication
- Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer - LDAP on Linux
OS Support
Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016 (including Hyper-V), Windows 7 SP1 / Windows 8.1, RedHat Enterprise Linux, CentOS, SUSE Linux Enterprise, Sun Solaris, Mac OS X, VMware, Citrix XenServer
- NFS protocol running on VMWare environment is currently not supported
Service and Support
Standard service
- 3-year limited hardware/software warranty and 8x5 phone, web, and email support
?Upgrade/Extension service (optional and service may vary by region)
- replacement part dispatch on the next business day (up to 5 years)
PSU
- Power supplies: Redundant/hot-swappable 1200W x 2
- AC voltage: 100-127VAC/12.47A, 200-240VAC/7.08A with PFC (auto-switching)
- Frequency: 47-63Hz
Environmental
- Temperature:
- Operating: 0 to 40°C without BBU or CBM / 0 to 35°C with BBU or CBM
- Non-operating: -40 to 60°
- Altitude: Sea level to 3048m(10000ft) operating / sea level to 12,192m (40,000ft) non-operating
- Relative humidity: 5 to 95% non-condensing, operating and non-operating
Regulatory
- Safety: UL, BSMI, CB
- Electromagnetic Compatibility: CE, BSMI, FCC
Dimensions
447mm (W) x 175mm (H) x 577mm (D)
(Without chassis ears / protrusions)
Package Dimensions
591mm (W) x 295mm (H) x 800mm (D)
FREE Delivery in UAE
Including Dubai, Abu Dhabi and SharjahNAS Experts
QNAP , Synology Top Sub Distributor and Service Partners in UAETOP Integrator
Second time Winner of GEC Awards in Data Storage Category UAEHonest and Credible
4.8+ Star Google rating. Thousands of satisfied customers in UAE
