Description & Specifications

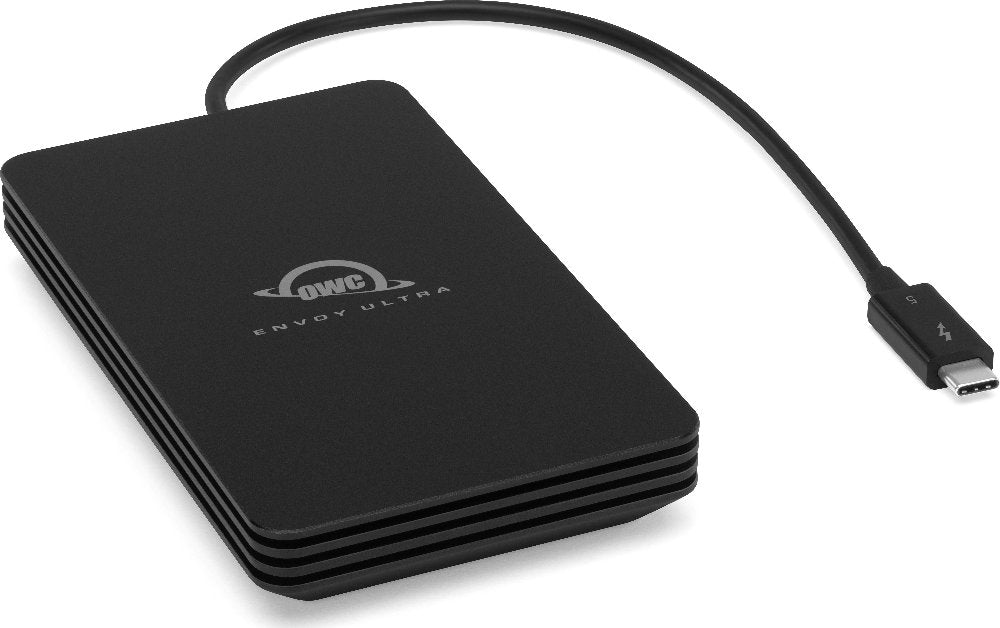

2.0TB OWC Envoy Ultra
Thunderbolt 5 (80Gb/s) Bus-Powered Portable NVMe SSD External Storage Solution
Mfr P/N: TB5ENVU02 OWC SKU: OWCTB5ENVU02
The First and Fastest Thunderbolt 5 Portable SSD
- Ultra-Fast: Over 6000MB/s1,2...up to 2x faster than Thunderbolt 4 and USB4
- Ultra Maximizer: Gets the most speed possible from Thunderbolt 3, Thunderbolt 4, and USB4 machines
- Ultra Ready: Easily handle daily data needs to pro level creative projects while delivering internal storage-class performance
- Ultra Compatible: Works with Macs, PCs, iPad Pros, Chromebooks, and Surface devices3
- Built Like a Tank: Crushproof, dustproof and waterproof IP67 rated4
- Ultra Convenient: Bus-powered with built-in Thunderbolt cable5
- Ultra Silent: Fanless, heat dissipating aluminum design
Includes
- (1) OWC Envoy Ultra External Storage Solution
- (1) OWC Envoy Ultra Getting Started QR Insert Card
- (1) Support Manual for OWC Envoy Ultra (digital)
- 5 Year OWC Limited Warranty
Specs
IP Rating
- IP67 (Dust-tight, protected against the effects of temporary immersion in water)
Drive Bays
- 1 bay
Total Capacity
- 1920GB Useable Capacity
- Total Capacity: 2048GB
- 128GB Allocated to real-time data redundancy and error correction
Drive Mechanism
- (1) 2.0TB OWC Aura Pro IV PCIe 4.0 NVMe M.2 2280 Solid-State Drive
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Plug and Play
- Yes
Boot Support
- Mac only. Boot Camp is not supported.
Drive Format
- APFS for Mac and iPad systems
- Windows, Chrome, and Android users please consult OWC Drive Setup for Windows, Chrome, and Android Platforms for formatting instructions
Captive Cable
- (1) Thunderbolt 5 (USB-C)
Data Transfer Rate (Maximum)
- Thunderbolt 5 : Up to 80Gb/s
- USB4 : Up to 40Gb/s (or 5000MB/s)
Chipset / Controller
- Thunderbolt: JHL9480
Host Interface Requirements
- Thunderbolt 5 port
- Thunderbolt 4 port
- Thunderbolt 3 port (Mac Only)
- USB4 port
Mac OS Compatibility
- macOS 14.x Sonoma
- macOS 15.x Sequoia
- macOS 26.x Tahoe
PC OS Compatibility
- Windows 11
Linux OS Compatibility
- Yes
Mobile OS Compatibility
- iPadOS 17
- iPadOS 18
- iPadOS 26
Other OS Compatibility
- Chrome OS
- Thunderbolt 5 for Mac requires macOS 15.x or later.
- Thunderbolt 5 for PC requires Windows 11 (version 22H2) or later.
- Thunderbolt 4 and USB4 connections on an Apple silicon Mac require macOS version 14.x or later.
- Thunderbolt 3 support is Mac only and requires macOS version 15.x or later.
- Intel Mac systems require macOS version 15.x or later.
- Chromebook or Surface systems require the latest version of Chrome OS.
- iPad systems require the latest version of iPad OS.
- Linux users should use the latest version of Ubuntu.
Driver Required
- No
External Power Adapter
- No
Power Supply
- Bus-powered
Captive Cable
- (1) Thunderbolt 5 (USB-C)
Security Slot
- No
Power/Activity LED(s)
- Power and Data - Solid Blue
- Disk Activity - Flashing Blue
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 2.0 cm (0.8 in)
- Length: 13.0 cm (5.1 in)
- Width: 7.5 cm (3.0 in)
- Captive Cable Length: 23.3 cm (9.2 in)
Weight
- 341.0 g (0.75 lbs)
Certifications
- CE
- FCC
- RCM
- VCCI
- UKCA
- IC
Ambient Temperature
- Operating: 41°F to 95°F (5°C to 35°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Benchmarks
Truth in Numbers: Another OWC Difference
There are many attributes that define “The OWC Difference.” By listing real-world performance tests of OWC solutions, we’re confident you’ll be completely satisfied with your technology investment.
macOS Test Results
Blackmagic Disk Speed Test - Intel
Thunderbolt 3
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
Blackmagic Disk Speed Test - Apple silicon
ThunderBolt 5
Benchmark for 2TB M.2 NVMe SSD (OWCSP4P8T1PT02)
Mac mini (2024, Mac16,11) with Apple M4 Pro and 24GB RAM
Blackmagic Disk Speed Test - Apple silicon
USB4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 8K - Intel
Thunderbolt 3
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
AJA System Test - 8K - Apple silicon
ThunderBolt 5
Benchmark for 2TB M.2 NVMe SSD (OWCSP4P8T1PT02)
Mac mini (2024, Mac16,11) with Apple M4 Pro and 24GB RAM
AJA System Test - 8K - Apple silicon
USB4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
AJA System Test - 4K - Intel
Thunderbolt 3
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
MacBook Pro (16-inch, 2019, MacBookPro16,1) with 2.4GHz processor and 64GB RAM
AJA System Test - 4K - Apple silicon
Benchmark for 2TB M.2 NVMe SSD (OWCSP4P8T1PT02)
Mac mini (2024, Mac16,11) with Apple M4 Pro and 24GB RAM
AJA System Test - 4K - Apple silicon
USB4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
MacBook Pro (16-inch, 2021, MacBookPro18,1) with Apple M1 Pro processor and 16GB RAM
Windows Test Results
CrystalDiskMark - Windows
Thunderbolt 4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
CrystalDiskMark - Windows
Thunderbolt 4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
CrystalDiskMark - Windows
USB4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
CrystalDiskMark - Windows
USB4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
AJA System Test - 8K - Windows
Thunderbolt 4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
AJA System Test - 8K - Windows
USB4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
AJA System Test - 4K - Windows
Thunderbolt 4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (13-inch, XPS 9315) with 12th Gen i5-1230U processor and 8GB RAM
AJA System Test - 4K - Windows
USB4
Benchmark for 2TB NVMe M.2 SSD (OWCSP4P8T1PT02)
Dell (Alienware x14 R2) with 13th Gen i7-13620H processor and 32GB RAM
