Boost the I/O performance of your Synology NAS
Synology SNV3000 series NVMe SSD is designed to handle tough caching workloads in a 24/7 multi-user environment. Its durable I/O performance boosts system responsiveness and speeds up handling of frequent access data, providing a streamlined storage experience while minimizing service disruptions to your Synology NAS.
Up to 40,000 4K random write IOPS
500 TBW for 24/7 enterprise workload
End-to-end data protection
Actionable insight for optimal performance and longevity
Built for system cache, Synology SNV3000 series pushes up random I/O performance and reduces latency in demanding 24/7 environments. It offers durable caching with over 205,000/40,000 4K random read/write IOPS1 and a 500 TBW endurance rating2, suitable for multimedia post-production and database applications.
Synology SNV3000 series integrates end-to-end data protection to safeguard data integrity over the entire transfer path. The SNV3500 comes with power loss protection circuit design3, further preventing data corruption during an abnormal shutdown: Dedicated capacitors provide power to flush data-in-flight into NAND flash in a power loss event and firmware is designed to enable a correct restart on the next power-up.
Full integration with Synologys DiskStation Manager (DSM) enables lifetime analytics for each SNV3000 series unit based on actual workloads4:
Plan further ahead for uninterrupted system performance and longevity with timely notifications.
Easy monitoring allows you to make optimal use of each SSD.
Synology SNV3000 series is thoroughly tested for compatibility with our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.
|
Hardware Specifications |

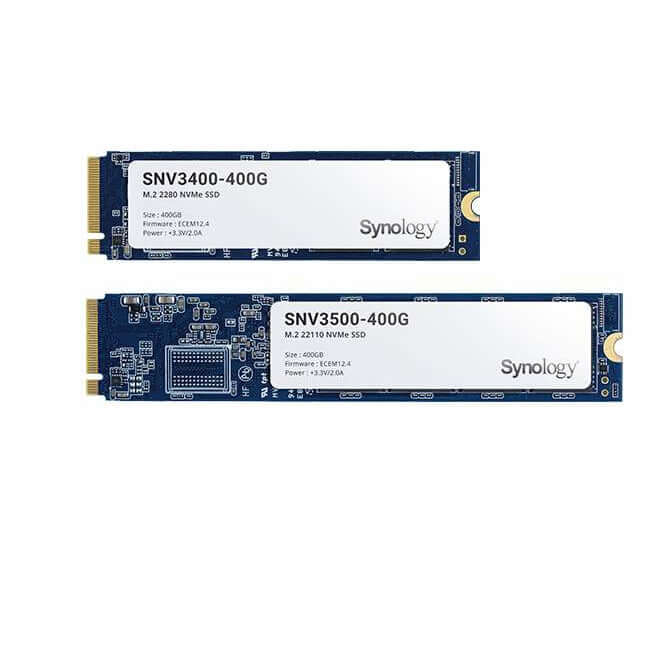

SNV3400-400G |
SNV3500-400G |
|
|---|---|---|---|
| General | Capacity | 400 GB | 400 GB |
| Form Factor | M.2 2280 | M.2 22110 | |
| Interface | NVMe PCIe 3.0 x4 | NVMe PCIe 3.0 x4 | |
| Performance | Sequential Read (128KB, QD32) | 3,100 MB/s | 3,100 MB/s |
| Sequential Write (128KB, QD32) | 550 MB/s | 550 MB/s | |
| Random Read (4KB, QD256) | 205,000 IOPS | 205,000 IOPS | |
| Random Write (4KB, QD256) | 40,000 IOPS | 40,000 IOPS | |
| Endurance and Reliability | Terabytes Written (TBW)* | 500 TB | 500 TB |
| Drive Writes Per Day (DWPD) | 0.68 | 0.68 | |
| Mean Time Between Failures (MTBF) | 1.8 million hours | 1.8 million hours | |
| Uncorrectable Bit Error Rate (UBER) | < 1 sector per 1017 bits read | < 1 sector per 1017 bits read | |
| Power Loss Protection | - | ||
| Warranty* | 5 Years | 5 Years | |
| Notes |
|
||
| Power Consumption | Supply Voltage | 3.3V (± 10%) | 3.3V (± 10%) |
| Active Read (Typ.) | 3.2 W | 3.7 W | |
| Active Write (Typ.) | 3.2 W | 3.4 W | |
| Idle | 2.0 W | 2.0 W | |
| Notes | Power consumption may differ according to configurations and platforms. | Power consumption may differ according to configurations and platforms. | |
| Temperature | Operating Temperature | 0°C to 70°C (32°F to 158°F) | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | -40°C to 85°C (-40°F to 185°F) | |
| Others | Size (Height x Width x Depth) | 3.5 mm x 22 mm x 80 mm | 4.5 mm x 22 mm x 110 mm |
| Certification |
|
||
