Synology RX1217 Expansion unit

AED 5,700.00 (Inc. VAT)
Brand: SYNOLOGY       MPN: RX1217       GTIN: 4711174722303
Specs(PDF)

⬤

Pre-Order
 Sold out but we have more in transit and may have a close replacement in stock. Place the order and we promise to get back to you with the exact delivery time or a similar product.
Thumbnail for Synology RX1217 Expansion unit Dubai UAE Dubai UAE

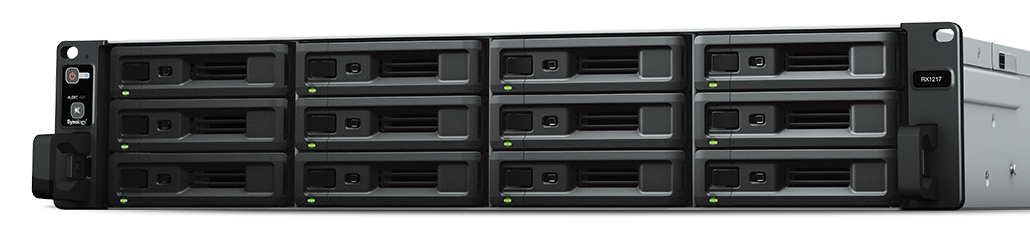

Synology RX1217 Expansion unit Dubai UAE Dubai UAE
All Pictures shown are for illustration purpose only.Actual product may vary in color,shape, size or otherwise

Synology RX1217 Expansion unit

AED 5,700.00 (Inc. VAT)
Brand: SYNOLOGY       MPN: RX1217       GTIN: 4711174722303
Specs(PDF)

⬤

Pre-Order
 Sold out but we have more in transit and may have a close replacement in stock. Place the order and we promise to get back to you with the exact delivery time or a similar product.
Free Delivery within UAE Customer service to update Delivery ETA

More Information about Synology RX1217 Expansion unit RX1217

Logistics, Bulk pricing , Stock and Partnership Info

Price Matching and Lowest Bulk Price for Synology RX1217 Expansion unit RX1217 Dubai UAE

The price listed on the website is the retail price intended for end users, but If you are an end user looking for a better price you can either email us or use the "Match My Price" service. Resellers can request for a special reseller price.

Free Shipping for Synology RX1217 Expansion unit RX1217 in UAE

We Ship Synology RX1217 Expansion unit RX1217 to Dubai, Abu Dhabi and Rest of the UAE free of cost. We have Export freight rates for this product also to Middle East including Saudi Arabia, Kuwait, Qatar, Bahrain and Oman. For African countries, our organized carriers tend to be expensive and we ask that you arrange shipping yourself. VAT Exceptions for export orders from the UAE are available if shipped from Jebel Ali or if your carrier issues proper export documentation

Information about Synology RX1217 Expansion unit from Vendor Site

Volume expansion & backup

When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.

When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.

Reliable plug-and-use design

Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Hardware Specifications
Applied Models
Applied Models
Supports creating volumes across different units
  • 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+
  • 19 series: RS1619xs+
  • 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+
  • 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs
  • 16 series: RS2416RP+, RS2416+
  • 14 series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+
  • 13 series: RS3413xs+
  • 12 series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+
  • 11 series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+
Notes
  • To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
  • DSM version requirement: 6.0.1-7393 or later version
Storage
Storage
Drive Bays 12
Compatible Drive Type*
  • 3.5' SATA HDD
  • 2.5' SATA HDD
  • 2.5' SATA SSD
Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
Notes It is strongly recommended that you only install drives listed on . Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
External Ports
External Ports
Expansion Port 1
Appearance
Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 664 mm
88 mm x 430.5 mm x 692 mm (for RP model)
Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 696 mm
88 mm x 482 mm x 724 mm (for RP model)
Weight 12.7 kg
13.4 kg (for RP model)
Rack Installation Support* 4-post 19' rack (Synology Rail Kit - )
Notes The rail kit is sold separately
Power
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 500 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 68.60 W (Access)
27.45 W (HDD Hibernation)
71.3 W (Access) (for RP model)
31.2 W (HDD Hibernation) (for RP model)
British Thermal Unit 234.23 BTU/hr (Access)
93.73 BTU/hr (HDD Hibernation)
243.52 BTU/hr (Access) (for RP model)
106.53 BTU/hr (HDD Hibernation) (for RP model)
Redundant Power Supply (for RP model)
Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
Others
System Fan 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
Noise Level* 54.6 dB(A)
54.2 dB(A) (for RP model)
Notes Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • RCM
  • KC
Warranty
Warranty
5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt.
Environment & Packaging
Environment
Environment
RoHS Compliant
Packaging Content
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • AC Power Cord X 2 (for RP model)
  • Expansion Cable: Infiniband X 1
  • Quick Installation Guide X 1
  • 3.5' SATA HDD:
  • 2.5' SATA SSD:
  • Rail Kit Sliding:

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our for professional advice.

Description, Specifications for Synology RX1217 Expansion unit

Volume expansion & backup When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage ...

Volume expansion & backup

When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.

When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.

Reliable plug-and-use design

Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage

Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Hardware Specifications
Applied Models
Applied Models
Supports creating volumes across different units
  • 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+
  • 19 series: RS1619xs+
  • 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+
  • 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs
  • 16 series: RS2416RP+, RS2416+
  • 14 series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+
  • 13 series: RS3413xs+
  • 12 series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+
  • 11 series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+
Notes
  • To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
  • DSM version requirement: 6.0.1-7393 or later version
Storage
Storage
Drive Bays 12
Compatible Drive Type*
  • 3.5' SATA HDD
  • 2.5' SATA HDD
  • 2.5' SATA SSD
Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
Notes It is strongly recommended that you only install drives listed on . Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
External Ports
External Ports
Expansion Port 1
Appearance
Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 664 mm
88 mm x 430.5 mm x 692 mm (for RP model)
Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 696 mm
88 mm x 482 mm x 724 mm (for RP model)
Weight 12.7 kg
13.4 kg (for RP model)
Rack Installation Support* 4-post 19' rack (Synology Rail Kit - )
Notes The rail kit is sold separately
Power
Power
Power Recovery Synchronized with the Synology RackStation
Power Supply Unit / Adapter 500 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 68.60 W (Access)
27.45 W (HDD Hibernation)
71.3 W (Access) (for RP model)
31.2 W (HDD Hibernation) (for RP model)
British Thermal Unit 234.23 BTU/hr (Access)
93.73 BTU/hr (HDD Hibernation)
243.52 BTU/hr (Access) (for RP model)
106.53 BTU/hr (HDD Hibernation) (for RP model)
Redundant Power Supply (for RP model)
Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Others
Others
System Fan 80 mm x 80 mm x 3 pcs
Easy Replacement System Fan
Noise Level* 54.6 dB(A)
54.2 dB(A) (for RP model)
Notes Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • RCM
  • KC
Warranty
Warranty
5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt.
Environment & Packaging
Environment
Environment
RoHS Compliant
Packaging Content
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • AC Power Cord X 2 (for RP model)
  • Expansion Cable: Infiniband X 1
  • Quick Installation Guide X 1
  • 3.5' SATA HDD:
  • 2.5' SATA SSD:
  • Rail Kit Sliding:

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our for professional advice.
