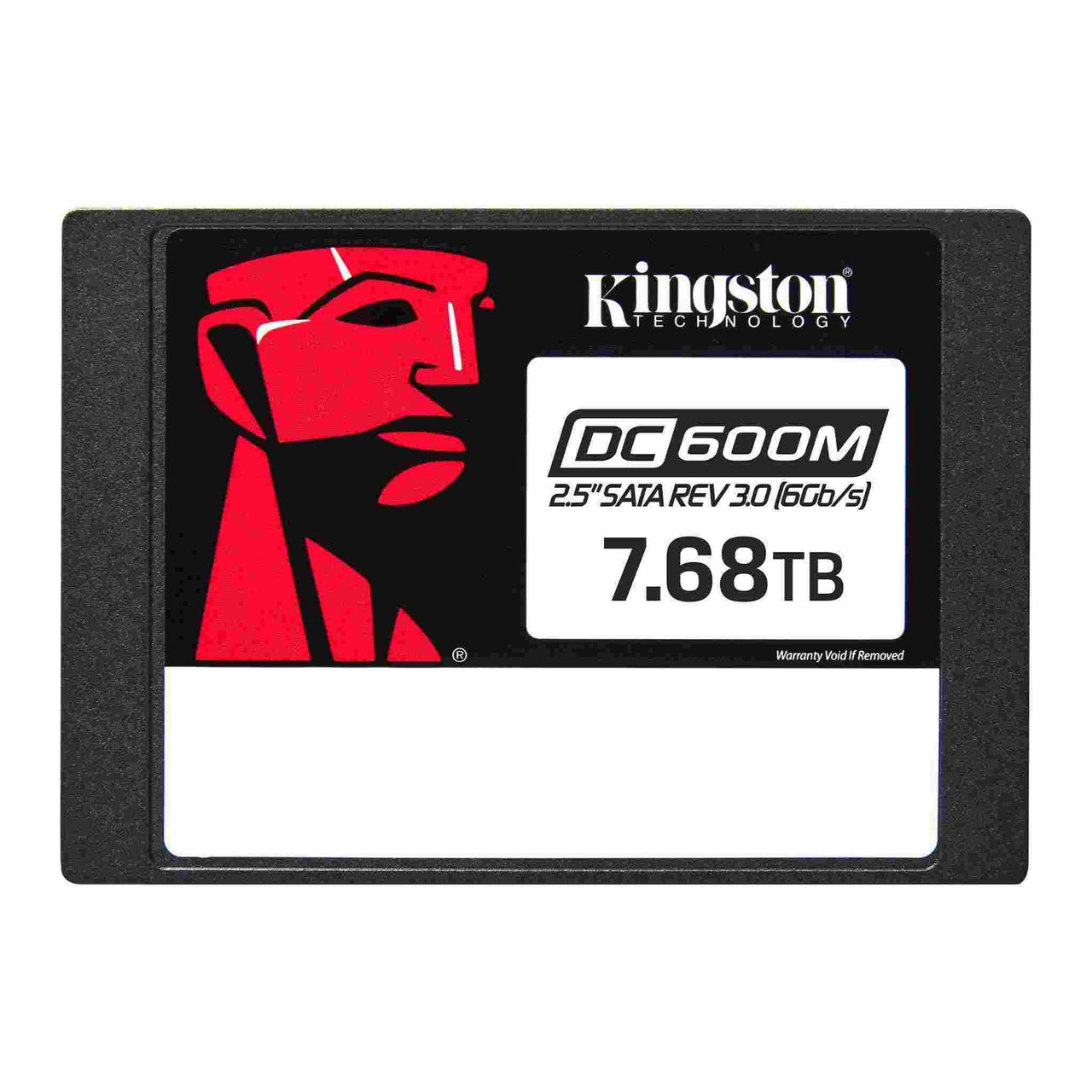

Description, Specifications for Kingston DC600M 7.68 TB Enterprise SATA SSD (SEDC600M/7680G)
The Kingston DC600M 7.68TB is a 2.5-inch SATA 3.0 enterprise-grade SSD engineered for mixed-use workloads in data centers and enterprise server environments. With 3D TLC NAND, on-board DRAM cache, and hardware-based power loss protection, it ensures data integrity and high QoS for critical applications.
Key Features
- 7.68TB capacity with 3D TLC NAND
- High-performance SATA Rev. 3.0 (6Gb/s) interface
- Sequential read up to 560MB/s, write up to 530MB/s
- Random 4K read/write: 94,000 / 34,000 IOPS
- Consistent latency: 240µs read / 170µs write
- Power Loss Protection (PLP) using onboard capacitors
- MTBF: 2 million hours
- 5-year limited warranty with technical support
Designed for Enterprise Environments
The DC600M is optimized to meet the high demands of server RAID applications with low latency and IO consistency as key design criteria. It delivers excellent Quality of Service (QoS) with optimized performance predictability to hit Service-level agreements (SLAs).
Technical Specifications
- Form Factor: 2.5-inch
- Interface: SATA Rev. 3.0 (6Gb/s), backward compatible with SATA Rev. 2.0 (3Gb/s)
- NAND: 3D TLC
- DRAM Cache: Yes
- Sequential Read/Write: 560MB/s / 530MB/s
- Random 4K Read/Write: 94,000 / 34,000 IOPS
- Latency (99.999% QoS): 240µs read / 170µs write
- Endurance (TBW): 14,016TB
- Power Consumption: Idle: 1.30W, Average: 1.45W, Max Read: 1.6W, Max Write: 3.6W
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Dimensions: 69.9mm x 100mm x 7mm
- Weight: 92.34g
- Vibration (Operating): 2.17G Peak (7–800Hz)
- Vibration (Non-operating): 20G Peak (10–2000Hz)
- MTBF: 2 million hours
- UBER: ?10^-17
Applications
Ideal for hyperscale data centers, cloud service providers, and system integrators who need consistent latency and endurance for databases, virtualization, web hosting, and analytics workloads.
