10GbE/2.5GbE for Ultra-high-speed Wi-Fi Applications

From Wi-Fi 6 to Wi-Fi 6E and even the Wi-Fi 7, ultra-high-speed and high-power APs and Routers are driving up access point uplink requirements. Supporting multiple 10GbE/2.5GbE ports, the QSW-M2106PR-2S2T breaks through the bandwidth limitations of cabled and wireless networks to enhance your storage and access experience. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2106PR-2S2T provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium businesses, hotels, and stores.

High PoE Capability– up to Eight-port 90W PoE++ and 310 Total Power Budget

The QSW-M2106PR-2S2T is compliant with the IEEE 802.3bt PoE++ standard and offers 2-port 10GbE and 6-port 2.5GbE 90-watt PoE++ capabilities. The QSW-M2106PR-2S2T can supply a total power budget of 310 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).

Flexible deployment with multiple 10G SFP+ fiber and Multi-Gigabit ports

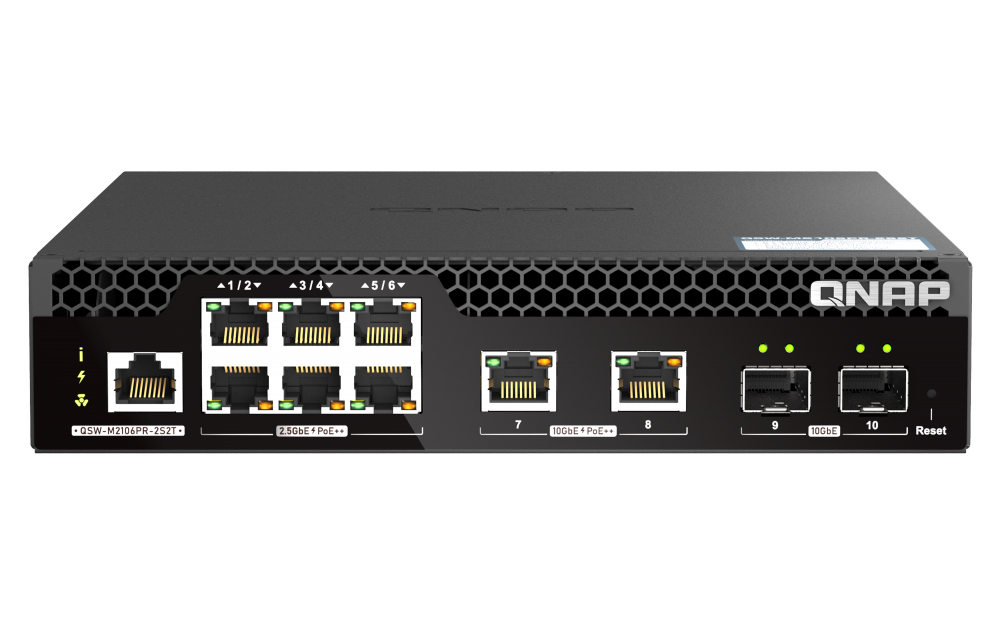

The QSW-M2106PR-2S2T provides two 10GbE SFP+ ports, two 10GbE RJ45 ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6a (or better) cabling. The switching capacity of the QSW-M2106PR-2S2T is 110Gbps, guaranteeing the full potential of each port.

Note 1: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the 10GbE RJ45 (copper) ports support up to five speeds (10G / 5G / 2.5G / 1G / 100M).
Note 2: If the distance between the switch and the device is less than 45 meters (148 feet), a Cat 6 cable can be used to achieve 10Gb/s speeds.

QSS: Human-centered settings guide

The QSW-M2106PR-2S2T uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.

• Overview Dashboard

  View real-time system information, port connection status, and port traffic.

• Port Management

  View port status, port packet statistics, and configure port speeds.

• Setting Guide

  Quickly learn how to set up the network using the introduction and step-by-step guide.

• Exclusive Status Chart Referencing

  Refer to four status charts during configuration and avoid going back and forth between settings pages.

• Online Firmware Check and Update

  Keep your QNAP switch secure with one-click firmware updates.

Optimize network performance with bandwidth and packet control

The QSW-M2106PR-2S2T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

• LACP

  Link Aggregation combines multiple network connections to increase throughput and protect against connection failure.

• VLAN

  Virtual Networks allows groups of devices from different networks to be combined into a single network.

• QoS

  QoS (Quality of Service) prioritizes bandwidth usage to optimize network resource allocation.

• IGMP Snooping

  IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M2106PR-2S2T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.

• ACL

  Filters packets based on rules to offer firewall-like security protection.

• LLDP

  Allows devices to advertise device information to directly-connected peers/neighbors to simplify troubleshooting processes.

• RSTP

  Ensures loop-free topology for Ethernet networks by blocking or forwarding traffic.

• Flow Control

  Balances traffic between a sender and a receiver to avoid network congestion.

Intelligent PoE functions for efficient, centralized PD management

The QSW-M2106PR-2S2T supports intelligent PoE management functions, including scheduling, power supply prioritization, and enabling/disabling power via QSS. You can obtain real-time network connection status and power consumption information of Powered Devices (PD) and configure PDs simultaneously to promote an energy-saving PoE network.

• PoE Power Consumption

  View real-time information about the PoE power consumption of every port.

• PoE scheduling and enabling

  Schedule PoE to be on/off based on business hours. You can also disable and enable power when disconnecting.

• PoE Power Supply Prioritization

  Prioritize power allocation to critical PoE devices to ensure non-stop services.

Fully embrace high-speed networking with QNAP!

QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.

• A switch that supports 2.5GbE/10GbE

  QNAP 2.5GbE/10GbE switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.

  ,

• A fast NAS

  A QNAP NAS with multiple 2.5GbE/10GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.

  ,

  Note: Managed Switch series support Port Trunking.

• Upgrade desktops and servers

  Servers and desktops can install QNAP PCIe network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

• Add a 5GbE/10GbE port to laptops

  Use the portable QNAP USB 3.2 Gen 1 to 5GbE adapter or QNAP Thunderbolt 3 to 10GbE adapter to connect laptops and upgrade-limited computers to 5G/2.5G/1G/100M networks.

  ,

QNAP high-speed switch solutions for diverse business network environments

QNAP provides comprehensive enterprise managed and unmanaged switches with speeds ranging from 2.5GbE, 10GbE to 25GbE and covering PoE, industrial-grade, rackmount, and desktop models. QNAP’s all-inclusive high-speed switches assist businesses in quickly deploying high-speed network infrastructure, accelerating enterprise backbone, smart hotels, retail, and industry 5.0 applications.

• QSW 2.5GbE Switches

  Upgrade your network environment with affordable QNAP switches.

• QSW 10GbE Switches

  Satisfy increasing bandwidth demands for fiber uplinks and LAN with Managed, Unmanaged, PoE and industrial-grade 10GbE switches.

• QSW Managed Switches

  Offering Desktop, Rackmount, PoE, Industrial-grade models with the user-friendly web GUI QSS for non-IT professionals.

• QGD Smart Edge PoE Switches

  The world's first smart PoE edge switch series with QTS for versatile networking applications.

Extend hardware warranty up to 5 years

The QSW-M2106PR-2S2T is backed by a 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
