Description, Specifications for QNAP QSW-M2106-4S

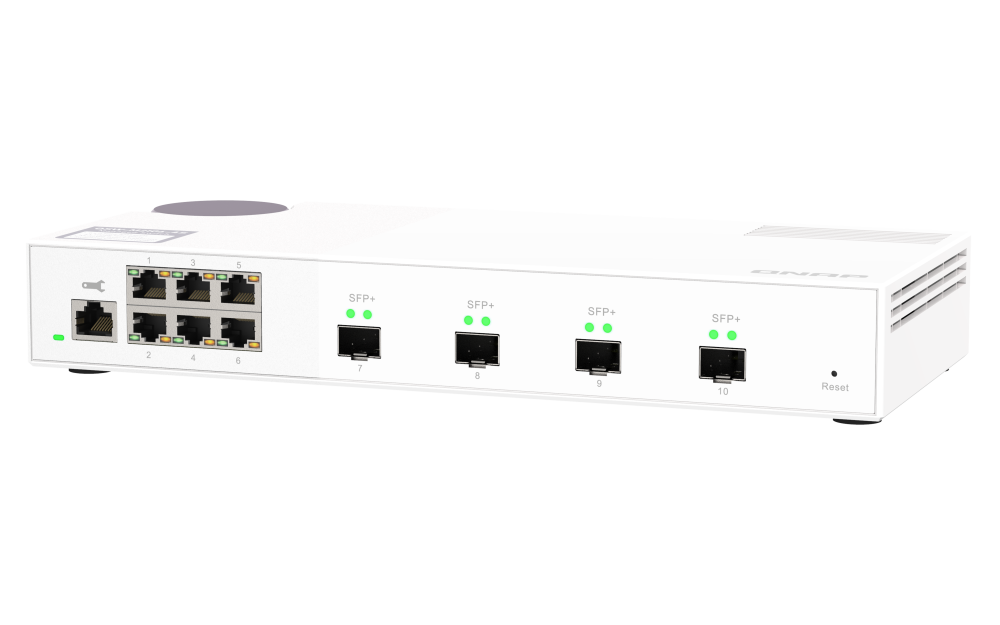

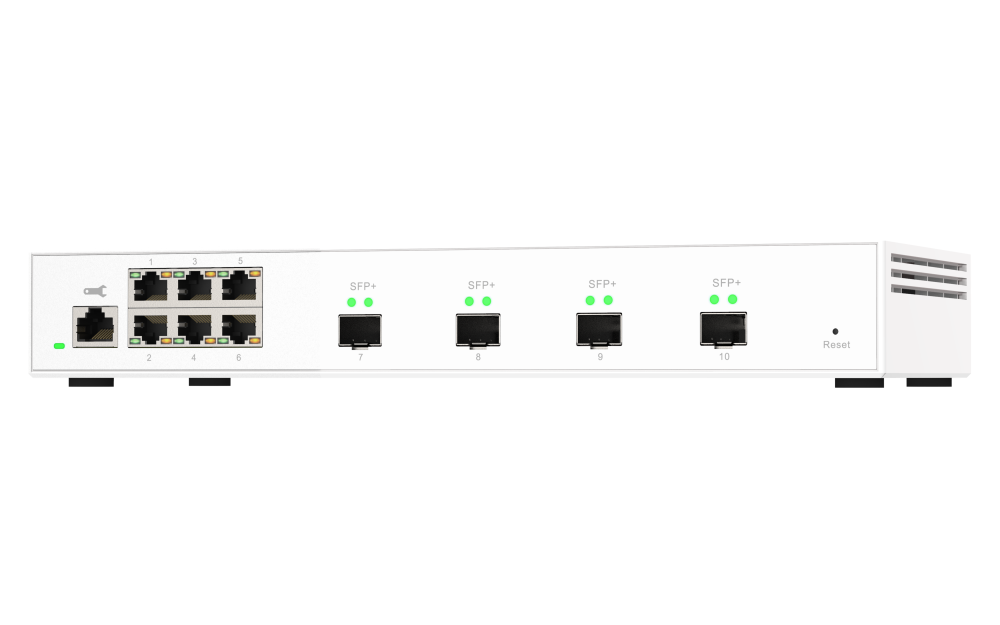

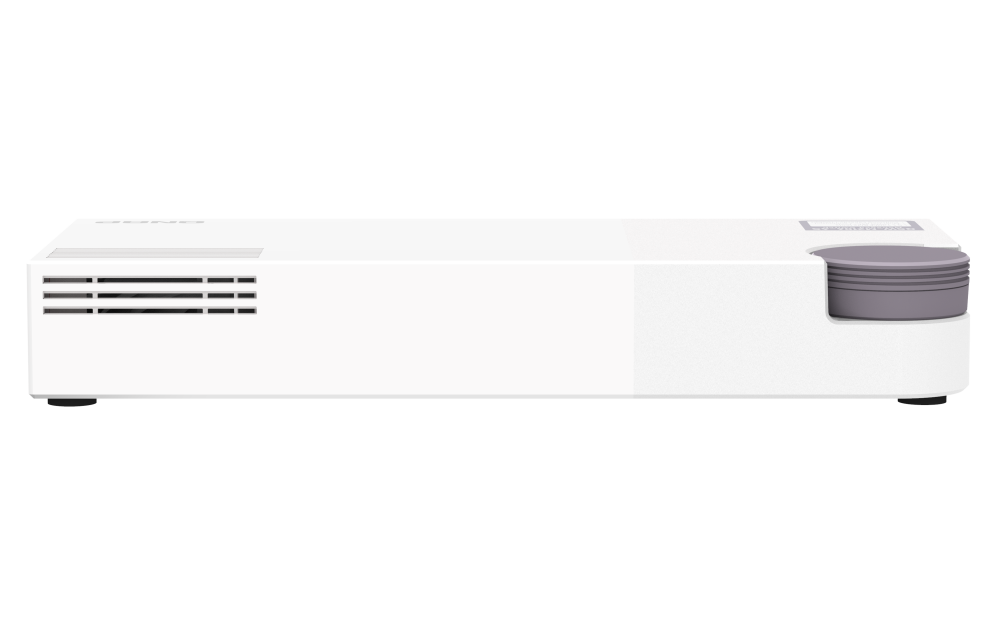

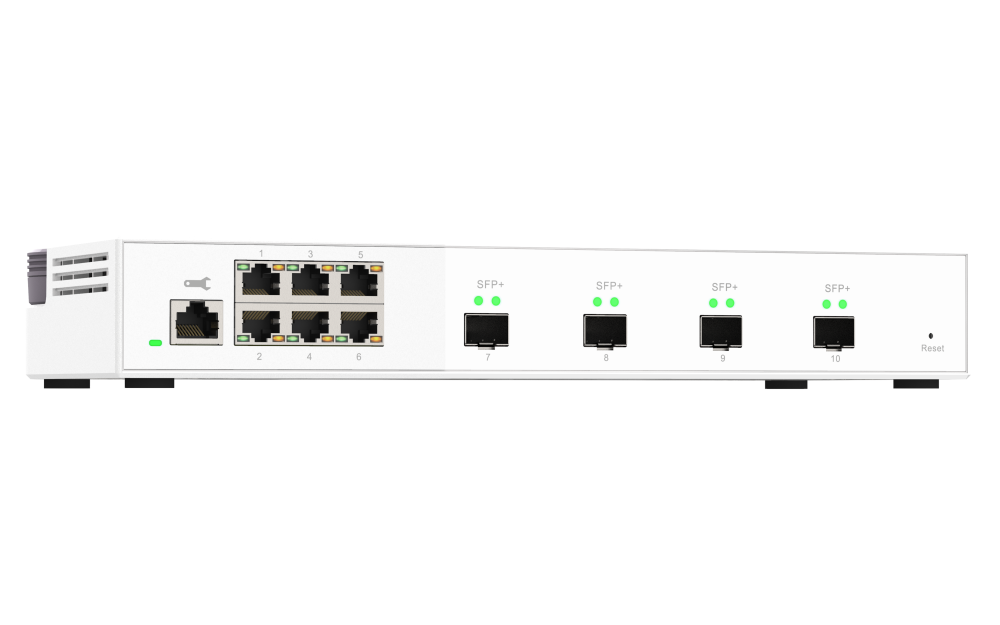

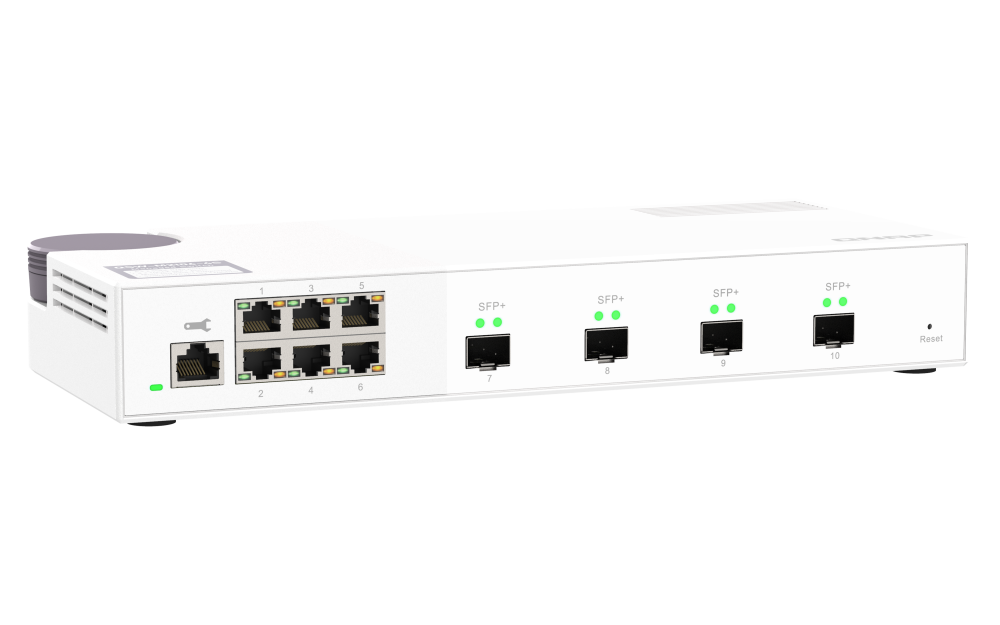

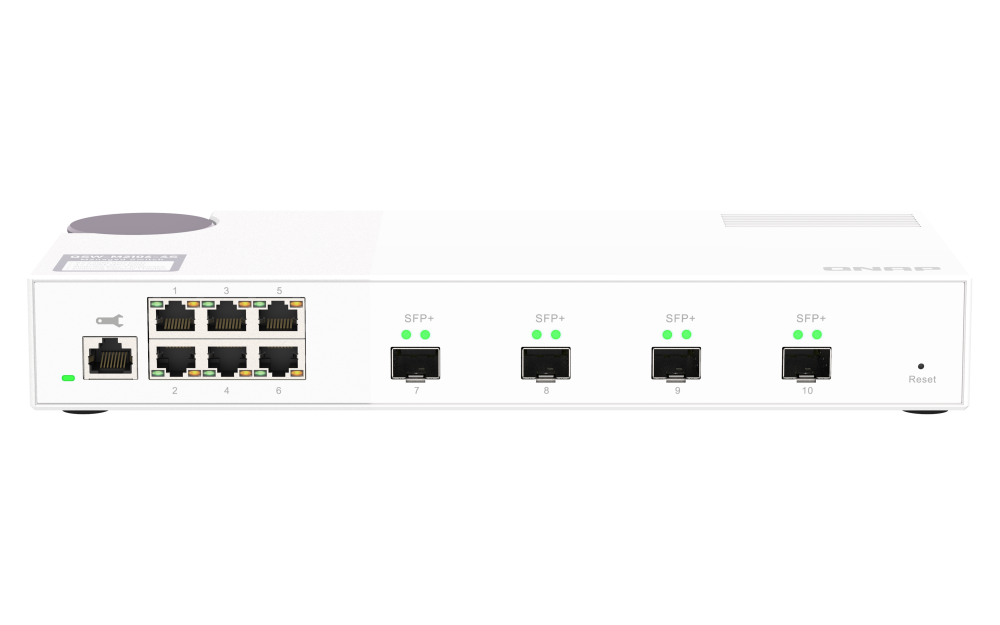

QSW-M2106-4S
10GbE and 2.5GbE Layer 2 Web Managed Switch for SMB Network Deployment
The QSW-M2106-4S is a Layer 2 Web Managed Switch with four 10GbE SFP+ fiber ports and six 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2106-4S offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. With high performance, user-friendly management, and a desktop form factor, the QSW-M2106-4S enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing bandwidth and ensuring secure network maintenance.
-
10GbE connectivity
Includes four 10GbE SFP+ (Backward compatible with 1G SFP) ports for high-speed networks.
-
2.5GbE connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
-
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
-
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
-
RSTP
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
-
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Flexible deployment with multiple 10G SFP+ fiber and Multi-Gigabit ports
The QSW-M2106-4S provides four 10GbE SFP+ ports and six 2.5 Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 2.5GBASE-T/NBASE-T™ devices through RJ45 Category 5e (or better) cabling. The switching capacity of the QSW-M2106-4S is 110Gbps, guaranteeing the full potential of each port.
| CAT 5e | CAT 6 | CAT 6A & CAT 7 | |
|---|---|---|---|
| 100M | YES | YES | YES |
| 1G | YES | YES | YES |
| 2.5G | YES | YES | YES |
| 5G | YES | YES | YES |
| 10G | YES (55m) | YES |
Note: 10GbE SFP+ ports are backward compatible with 1GbE SFP; the 2.5GbE RJ45 (copper) ports support up to three speeds (2.5G / 1G / 100M).
Fully embrace High-Speed Networking with QNAP!
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
,
-
A switch that supports 2.5GbE/10GbE
QNAP support 2.5G/10G and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
-
A fast NAS
A with multiple 2.5GbE ports and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Note: Managed Switch series support Port Trunking. -
Upgrade desktops and servers
Servers and desktops can install that support 10G/5G/2.5G/1G/100M Multi-Gig.
-
Add a 5GbE/10GbE port to laptops
Laptops and upgrade-limited computers can use the portable or , allowing you to connect to 5G/2.5G/1G/100M networks.
QSS: Human-centered settings guide
The QSW-M2106-4S adopts QNAP Switch System (QSS) featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.
-
Overview Dashboard
View real-time system information, port connection status and port traffic.
-
Port Management
View port status, port packet statistics, and configure port speeds.
-
Setting Guide
Quickly learn how to set up the network using the introduction and step-by-step guide.
-
Exclusive Status Chart Referencing
Refer to four major status charts during each configuration to avoid going back and forth between different settings pages.
-
Online Firmware Check and Update
Keep your QNAP switch secure with one-click firmware updates.
Optimize Network Performance with bandwidth and packet control
The QSW-M2106-4S provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
| LACP | VLAN | QoS | IGMP Snooping |
|---|---|---|---|
| Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure. | Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network. | QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation. | IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage. |
Powerful security and system functions
The QSW-M2106-4S has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
| ACL | LLDP | RSTP | Flow Control |
|---|---|---|---|
| Access Control List filters packets based on rules to offer firewall-like security protection. | Link Layer Discovery Protocol allows devices to advertise device information to their directly connected peers/neighbors, simplifying troubleshooting processes. | Rapid Spanning Tree Protocol, RSTP ensures a loop-free topology for Ethernet networks by blocking or forwarding traffic. | Flow Control balances the traffic between a sender and a receiver to avoid network congestion. |
Desktop form factor for easy use in offices
With a compact and modern design, the QSW-M2106-4S stands out with its textured surface design. The flexible DC power connector enables universal deployment of the QSW-M2106-4S and each port can be easily identified. Being fully plug-and-play, devices can be simply connected to the QSW-M2106-4S and immediately used.
People Also Viewed
-
TS-133
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition
-
QSW-1108-8T
Instantly upgrade your network to 2.5GbE connectivity
-
QSW-IM1200-8C
Industrial-grade Fanless full 10GbE Switch to accelerate high-speed network deployment in rugged industrial environments
-
QSW-2104-2T
A plug & play switch featuring 10GbE and 2.5GbE connectivity, suited for SOHO and professionals
-
QSW-M2116P-2T2S
90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch for the Wi-Fi 6 Generation
-
QSW-1105-5T
Instantly upgrade your network to 2.5GbE connectivity
TS-133
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition
QSW-1108-8T
Instantly upgrade your network to 2.5GbE connectivity
QSW-IM1200-8C
Industrial-grade Fanless full 10GbE Switch to accelerate high-speed network deployment in rugged industrial environments
QSW-2104-2T
A plug & play switch featuring 10GbE and 2.5GbE connectivity, suited for SOHO and professionals
QSW-M2116P-2T2S
90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch for the Wi-Fi 6 Generation
QSW-1105-5T
Instantly upgrade your network to 2.5GbE connectivity
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+ | 4 |
| 2.5GbE (RJ45) | 6 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 16W |
| Input Power Type | DC |
| Input Voltage Range | 12V/3A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | YES |
| Fan | PWM double ball bearing fan x 1 |
| Supported Standards |
IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Form Factor | Desktop |
| LED Indicators |
Per Port: Speed/Link/Activity
Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 42.5 x 290 x 127 mm |
| Weight (Net) | 1.15 kg |
| Weight (Gross) | 1.75 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
