Next-Generation Intelligent IP Surveillance and Remote Backup Solution

Modern enterprises need to deploy surveillance systems in various sites with multiple IP cameras, switches, NAS/NVR, and then transmit local data to central servers. This can often be a complicated, inefficient, and expensive process. The QGD-3014-16PT integrates PoE power capabilities, surveillance server, and data backup management, thus simplifying the software and hardware requirements and increasing the transmission and backup efficiency of surveillance videos.

Complete Surveillance Infrastructure Deployment for Smart Retail

Combining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.

Intelligent PoE Management for High-Power IP Cameras

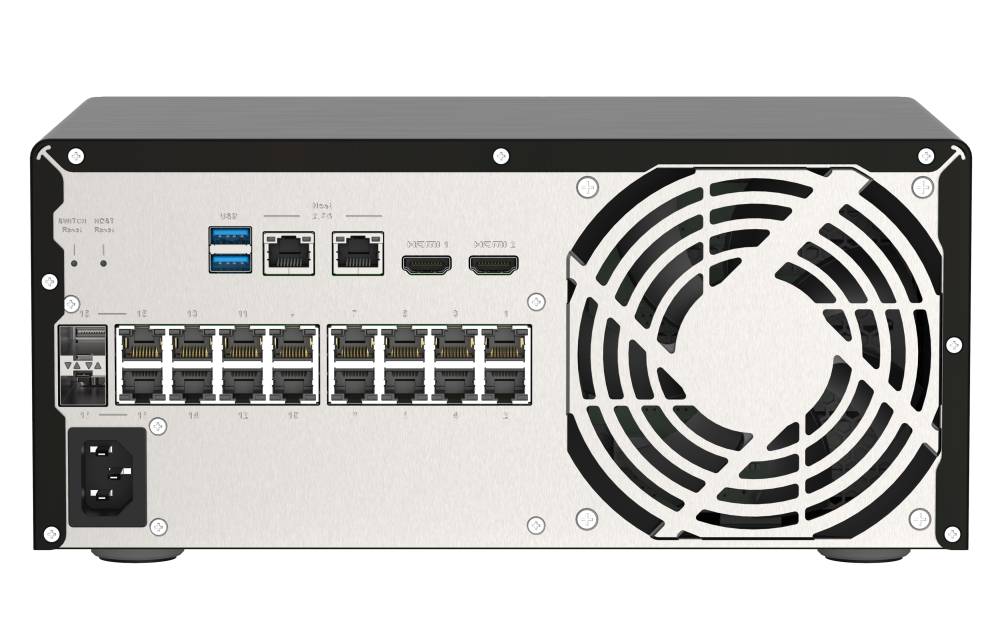

Compliant with the IEEE 802.3at PoE+ standards, the QGD-3014-16PT has sixteen ports with 30-watt Gigabit PoE capabilities. The QGD-3014-16PT can supply a total power budget of 140 watts to meet the demands of bullet cameras, fisheye cameras, 4K PTZ cameras and Speed Dome cameras compliant with the ONVIF® standard; or high-power devices such as 4K PTZ camera, IP phones, LED lights, and digital signage. The QGD-3014-16PT supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling/disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.

A Total Smart IP Surveillance System with QVR Pro

QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the QGD-3014-16PT and leverage the advantages of scalable storage including four drive bays space and flexible storage expansion. With camera management, storage space allocation, playback, failover, and remote live viewing, QVR Pro helps you deploy a comprehensive smart IP surveillance system.

, ,

Integrated HBS 3 Remote Backup Solution for Surveillance Data

HBS 3 consolidates backup, restoration and synchronization functions (via RTRR, Rsync, FTP, CIFS/SMB protocol) for easily transferring data from the QGD-3014-16PT to a remote QGD-3014-16PT, QNAP NAS, remote server, or cloud storage.

Deploy a Multi-site VPN with SD-WAN Solution

QuWAN SD-WAN provides full mesh IPsec VPN topology between the QGD Switches and local/remote QNAP devices to fulfill enterprise surveillance video, system data transmission, and filing needs. QuWAN optimizes the network service by using bandwidth aggregation, QoS, and failover, providing a stable surveillance working environment. QuWAN also adopts software defined networking to achieve optimum surveillance network connectivity and supports cloud-centric management over multiple NAS for deploying a resilient IP surveillance infrastructure.

•

  QuWAN Orchestrator

  Manage the network using a centralized management cloud platform.

•

  QuCPE Server

  The high-performance core VPN Server at the HQ.

•

  NAS

  Add branch offices to the VPN Infrastructure with your existing NAS.

•

  QGD Switch

  Fulfill surveillance and VoIP applications at small business sites (such as stores).

•

  QHora Router

  Provides easy-to-use VPN functions for remote workers.

•

  QVPN

  Mobile users can connect to SSL VPN using their PCs, laptops or mobile phones.

The First PoE Switch Series with VM Support

The QGD-3014-16PT supports QNAP’s QTS operating system and is the world’s first PoE switch series that supports hosting virtual machines, containers, and other cloud applications – enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications. The QGD-3014-16PT not only provides an all-in-one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD-WAN solution for connecting to other QNAP devices in multiple sites. The QGD-3014-16PT adopts a dual-processor structure, enabling independent operation of the networking management interfaces (QSS – QNAP Switch System) and QTS. By using the Network Virtual Switch, the data from QTS and QSS can be transferred by Intranet, accelerating computing between end devices and hosts. In addition, the QGD-3014-16PT provides a user-friendly web interface, QuNetSwitch, to help users deploy flexible and secure IT infrastructure.

Please note: QTS and QSS can work independently without interference to ensure continuous operation. For example, when restarting QTS, the QSS PoE power supply will not be interrupted. When rebooting QSS, the VMs on QTS will remain operational.

QuNetSwitch: User-Friendly Layer 2 Management Software

The QGD-3014-16PT provides complete functions of Layer 2 management (for example: VLAN, LACP, and LLDP). These can divide network IP traffic into several groups, providing more efficient network management. The QGD-3014-16PT provides powerful security features, including IGMP Snooping, Static MAC, QoS, and WoL. There is also an overview dashboard and graphical statistics analysis that displays all the information about the switch and PDs at a glance, simplifying the management of powered devices.

More VM applications

•

  x Virtual Router x Virtual Firewall = Enhanced Cybersecurity

  The QGD-3014-16PT can be transformed into a secure router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. Flexibly configure routing functions and separate or protect local networks and apply multiple security policies.

  , ,

•

  X Zabbix = Centralized Network Management Platform

  The QGD-3014-16PT supports Zabbix Network Monitoring Software that auto-detects connected SNMP-compliant servers/devices, and monitors network status. Zabbix provides a dashboard and analysis reports for efficient large-scale network management.

•

  FreePBX= IP PBX System

  The QGD-3014-16PT offers 15-30 watts PoE per port for SIP IP Conferencing Phones. You can also deploy a secure IP PBX phone system for multiple users by installing FreePBX software.

Flexible Storage Expansion

Connect a TR RAID, TL USB JBOD, or TL SATA JBOD to expand the storage capacity of the QGD-3014-16PT to accommodate data and business growth.
The total number of TR and TL USB interface storage expansion devices cannot be more than 2.

* The total number of connected TR and TL USB expansion units cannot exceed two.
