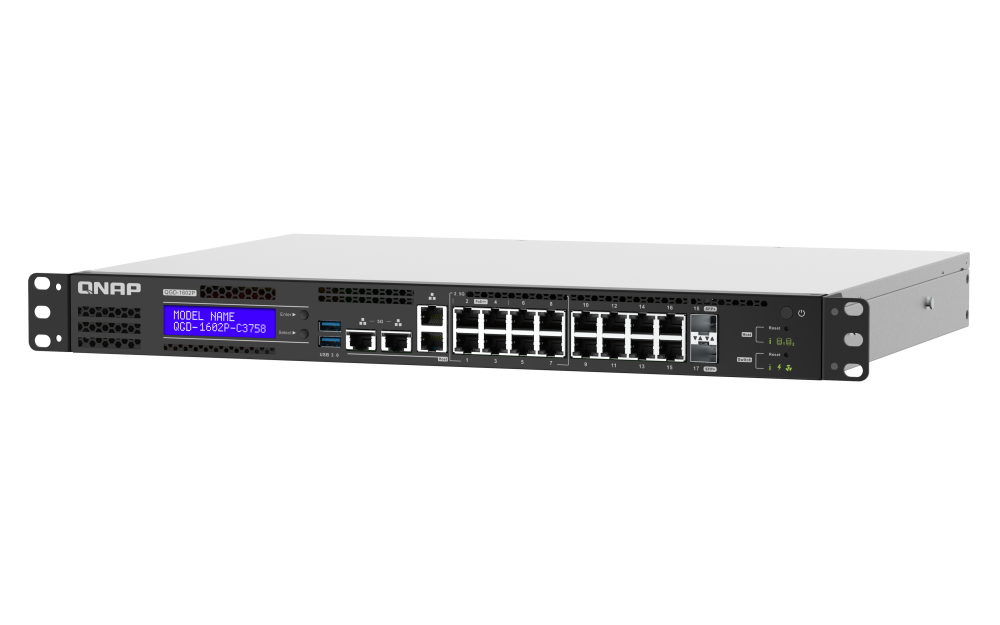

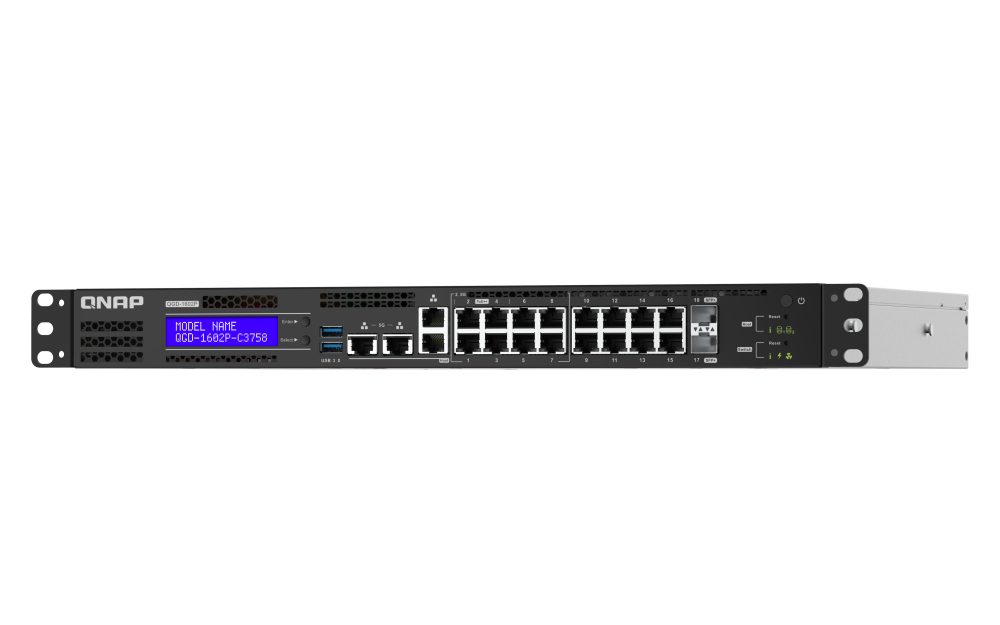

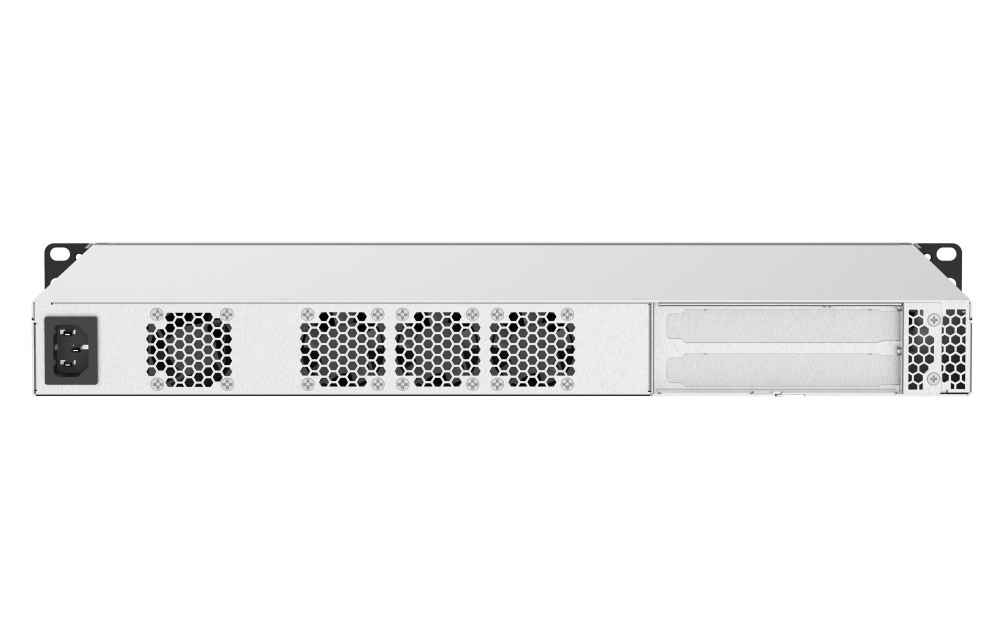

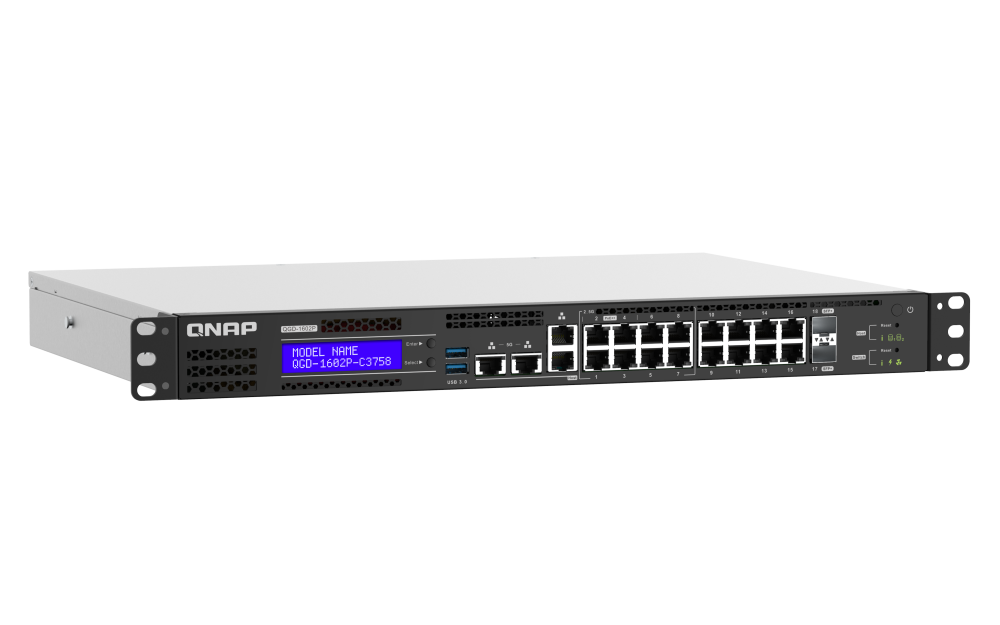

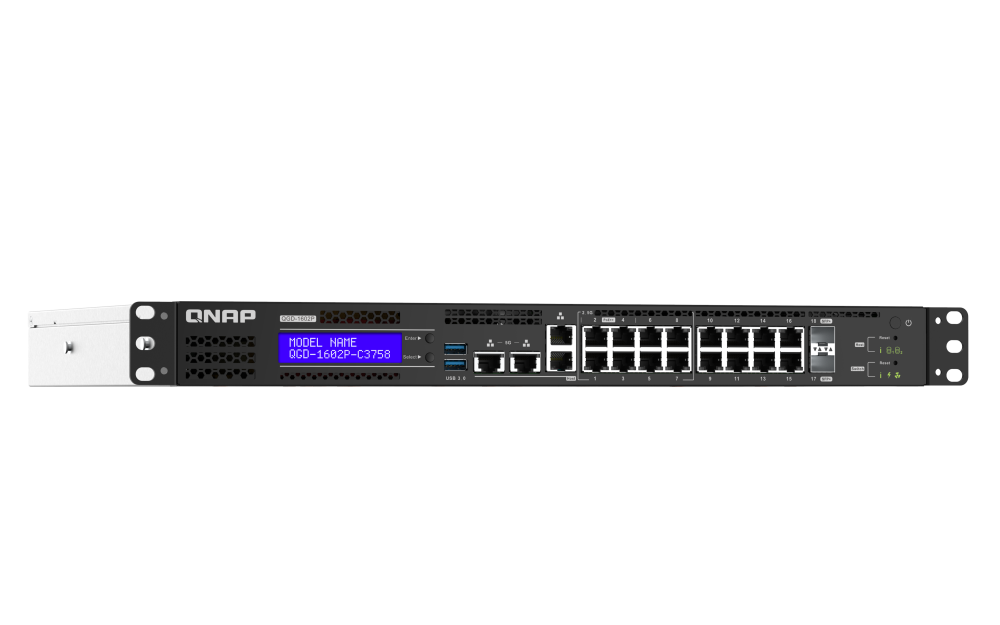

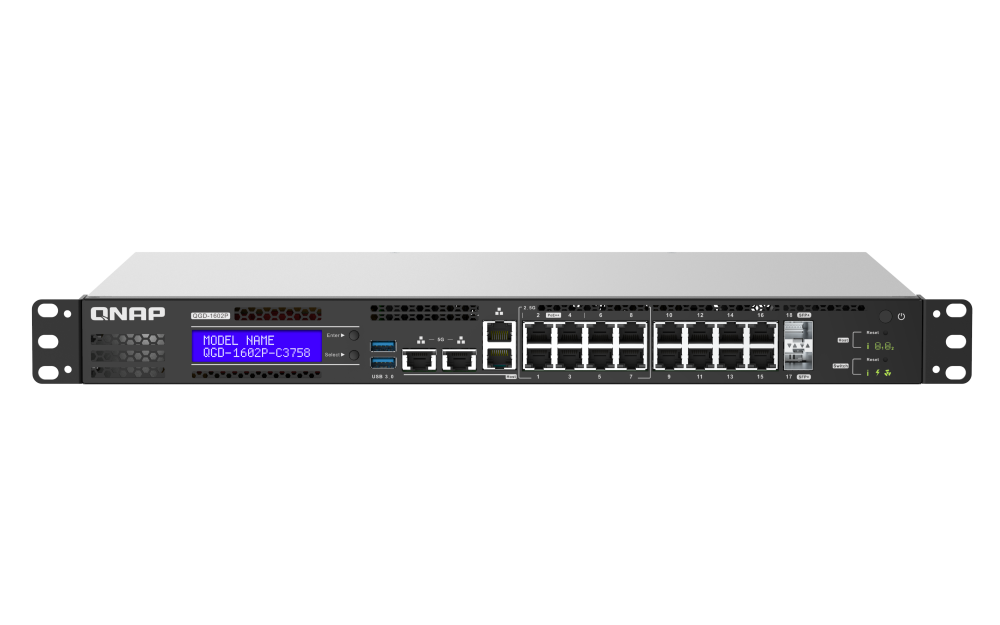

The QNAP QGD-1602P is the world’s first PoE managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports and up to 90-watt PoE output, the QGD-1602P allows you to build a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers. With a dual-CPU design, the QGD-1602P uses Intel® Atom® multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602P not only fulfills IP surveillance, network security, wireless AP management, and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel® QuickAssist Technology (Intel® QAT), the QGD-1602P achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 4-port 90-watt and 12-port 30-watt Gigabit PoE capabilities. Can supply a total power budget of 380 watts to meet the demands of high-powered devices (PDs) and supports intelligent PoE management functions.
Two 10GbE SFP+ ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) with user-friendly network management software. IT staff can efficiently control network bandwidth and enhance security using a web-based management interface.
Set up an SSD cache or storage pools to increase file access efficiency.
Two PCIe Gen3 x4 slots allow users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless adapters.
Host containerized applications and virtual machines with various operating systems. Flexibly install QuWAN, virtual router, firewalls, or wireless LAN management software for various networking management applications.
4 x RJ45 2.5GbE 802.3bt 90-watt PoE ports, 4 x RJ45 2.5GbE 802.3at 30-watt PoE ports, 8 x RJ45 Gigabit 802.3at 30-watt PoE ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3558 quad-core 2.2 GHz processor, 8 GB DDR4 RAM, supports hosting up to 4 VMs
4 x RJ45 2.5GbE 802.3bt 90-watt PoE ports, 4 x RJ45 2.5GbE 802.3at 30-watt PoE ports, 8 x RJ45 Gigabit 802.3at 30-watt PoE ports, 2 x 10GbE SFP+ ports; Intel® Atom® C3758 octa-core 2.2 GHz processor, 16 GB DDR4 RAM, supports hosting up to 6 VMs
The QGD-1602P breaks through bandwidth limitations of connecting cabled and wireless networks to enhance your storage and access experience. With eight 2.5GbE ports, the QGD-1602P supplies up to 90 watts of PoE per port and a total power budget of 380 watts to meet the demands of high-power Wi-Fi 6 APs. The QGD-1602P can also be connected to a QHora Wi-Fi 6 Router via its 5GbE host ports to offer Wi-Fi 6 networking in home or office environments. Featuring diverse high-speed network interfaces, the QGD-1602P provides a comprehensive Wi-Fi 6 wireless network infrastructure solution for small-to-medium-scale businesses, hotels, and stores. Coupled with QNAP’s QuWAN SD-WAN solution, the QGD-1602P greatly enhances wireless LAN efficiency from optimized WAN bandwidth.
The QGD-1602P provides a full upgrade of network speeds, performance and memory, which not only greatly enhances the network transmission speeds of edge devices, but also optimizes the capabilities of running multiple virtual machines and containers for highly-efficient virtualization applications.
CPU (Max.)
network
PoE
Internal bandwidth capacity
RAM (Max.)
VMs (Max.)
The QGD-1602P uses Intel® Atom® C3000 series multi-core 2.2GHz processors, has two SATA drive bays, and provides and two M.2 NVMe SSD slots for SSD caching to increase IOPS performance. Two PCIe Gen3 x4 slots allows users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters to boost core functionality. The QGD-1602P also supports Intel® QuickAssist Technology (Intel® QAT) to greatly enhance IPsec VPN performance.
Note: Intel® QAT is supported when using QTS 4.4.3 (or later).
The Guardian supports QNAP’s QTS operating system and is the world’s first PoE switch series that can host virtual machines, containers, and provide other cloud applications - enabling diverse networking and storage solutions. In addition to QuWAN, QVR Pro, HybridMount, and other applications, the included App Center also supports VMs for running many open-source software applications. The Guardian provides SMBs with not only an all-in-one networking solution for IP surveillance, storage expansion, network security, and wireless LAN management, but also a SD-WAN solution for connecting to other QNAP devices at multiple sites. The dual-processor Guardian enables you to independently run the networking management interfaces (QSS - QNAP Switch System) and QTS. The Guardian provides a user-friendly web interface, QuNetSwitch, to help SMBs deploy a flexible and secure IT infrastructure.
QTS and QSS can work independently without interference to ensure continuous operation. For example, when restarting QTS, the QSS PoE power supply will not be interrupted; when rebooting QSS, the VMs on QTS will keep running.
, , ,
The QGD-1602P and other QNAP solutions now support QuWAN – QNAP’s SD-WAN solution. QuWAN provides full mesh IPsec VPN topology between QNAP devices based in multiple sites to fulfill enterprise video, VoIP, ERP system data, and filing needs. QuWAN adopts software-defined networking to achieve optimum network connectivity, and supports cloud-centric management for deploying a resilient IT Infrastructure.
Manage the network using a centralized management cloud platform.
The high-performance core VPN Server at the HQ.
Add branch offices to the VPN Infrastructure with your existing NAS.
Fulfill surveillance and VoIP applications at small business sites (such as stores).
Provides easy-to-use VPN functions for remote workers.
Mobile users can connect to SSL VPN using their PCs, laptops or mobile phones.
The QGD-1602P features dual system design, multi-port capability and expandable architecture, enabling optimum transmission and flexibility to fulfill business needs in performance and application diversification.
Supplies up to 90 watts and 2.5GbE connectivity per port to meet the demands of high-powered devices (PDs), such as Wi-Fi 6 APs, LED lights, digital signage and PTZ IP cameras.
Supplies up to 30 watts and 2.5GbE connectivity per port to meet the demands of powered devices (PDs), such as wireless APs and IP phones.
Supplies up to 30 watts and Gigabit connectivity per port, the 8 Gigabit PoE ports provide flexibility for various high-speed powered devices.
Provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
The additional two 5GbE host management ports can be connected to multiple hosts, LAN devices or Internet.
The additional two Gigabit host management ports can be connected to multiple hosts, LAN devices or Internet.
The USB 3.2 Gen 1 port allows for connecting to external hard drives.
The LCD Monitor displays real-time IP and Firmware information of the Switch and QTS System to help you understand the network status. The control buttons allow you to directly configure and restart the system.
You can reset the switch and QTS separately via the independent reset buttons, ensuring the PoE power supply is stable when resetting the QTS, or continuous operation of the VMs on QTS when resetting the QSS. You can also easily view the status of QTS/ QSS systems, hard drives, PoE and system FAN via the LED indicators.
When shutting down the QTS via the independent QTS Host power button, the switch can still offer data transmission in LAN network and ensure uninterrupted operation without being affected by QTS status.
Supports 10GbE network cards, QM2 cards, USB 3.2 Gen 2 (10Gbps) expansion cards and wireless adapters for greater application potential.
Monitors system temperatures and automatically adjusts fan speeds accordingly.
Built-in 2x2.5' SATA SSD/HDD slots offer secure storage space for application data.
Provides SSD caching to increase IOPS performance.
High-performance Intel® Atom® C3000 series multi-core 2.2 GHz processor
Supports two DDR4 dual-channel SO-DIMM memory modules for a maximum of 64 GB RAM.
280W or 500W power supplies ensure continuous system uptime.
The QGD-1602P is compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, offering 4-port 90-watt and 12-port 30-watt PoE capabilities. The QGD-1602P can supply a total power budget of 370 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage). The QGD-1602P supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain the real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
The QGD-1602P has eight 2.5GbE ports and eight Gigabit PoE ports for connecting various high-speed powered devices. Two in-built 10GbE SFP+ ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches. The additional two 5GbE and two Gigabit host management ports can be connected to multiple hosts or LAN devices to improve LAN efficiency. The switching capacity of QGD-1602P is 96Gbps, guaranteeing the full potential of each port. By installing an 802.11ac Wireless Adapter and the WirelessAP Station App, the QGD-1602P can work as an access point for connecting multiple edge devices and offer wireless speeds up to 2533Mbps.
QTS can directly access to and control the data processed in QSS using Virtual Switches. The QGD-1602P provides 20GbE internal bandwidth to accelerate computing between end devices and hosts. The additional two 5GbE and two Gigabit host management ports can also be connected to multiple hosts for deploying multiple virtual machines.
The QGD-1602P provides comprehensive Layer 2 management features (including VLAN, LACP, and LLDP) for efficient control of networks through IP grouping and bandwidth management. Powerful security functions (including IGMP Snooping, static MAC, QoS, and Wake-on-LAN) are also suitable for simple networking environments and easy deployment. Aside from the QNAP Switch System (QSS), the QGD-1602P also offers the user-friendly web interface software QuNetSwitch (via QTS) to help IT staff control Layer 2 management and PoE networks. The overview dashboard and statistical analysis area displays all the information about the switch and PDs at a glance, making centralized management of powered devices intuitive and easy.
| Port Management | VLAN | Port Trunking | QoS |
|
- Port status
- Port statistics - Port configuration - Jumbo frame support - IEEE 802.3x flow control - Auto-negotiation of speed and duplex modes |
- VLAN configuration
- Port-based private VLAN - IEEE 802.1Q-based VLAN |
- Port trunking
- LACP groups |
- Bandwidth control
- Traffic classification |
| IGMP | Security | Management | Advanced Applications |
| - IGMP snooping v2/v3 |
- Access Control Lists (ACL): ACL by IP address, ACL by MAC
- Static MAC address - Rate limits |
- Link Layer Discovery Protocol (LLDP): LLDP remote device
- Interfaces: Web UI, Telnet, Command Line Interface (CLI) - SNTP, DNS, DHCP client entry |
- Port mirroring
- Loop protection to avoid broadcast loops - Wake-on-LAN |
The QGD-1602P is a one-stop central networking solution that offers flexible power supply, Web-based management, and innovative virtualization applications to solve various networking problems.
The QGD-1602P has 16 PoE ports and a 380w power supply for various high-power PoE wireless APs. By installing UniFi, the QGD-1602P becomes a hardware and software-based wireless AP controller. The QGD-1602P enables not only data transmission and PoE management over wireless APs, but also central management of cabled and Wi-Fi networking devices in offices, hotels, stores, and other small-to-medium-sized networks.
The QGD-1602P has 4-port 90-watt and 12-port 30-watt PoE to different brands of high-power 4K PTZ Cameras with the ONVIF standard. When used with QVR Pro, the QGD-1602P simplifies the surveillance network infrastructure while satisfying requirements for surveillance deployment, central management, video recording and computing.
The QGD-1602P offers 15-90 watts PoE per port for SIP IP Conferencing Phones. You can also deploy a secure IP PBX phone system for multiple users by installing FreePBX software.
The QGD-1602P can be transformed into a secure router with a firewall via virtual router and virtual firewall software by installing MikroTik RouterOS and OpenWrt. Flexibly configure routing functions and separate or protect local networks and apply multiple security policies. You can also easily manage all networking devices with Zabbix network management software.
,
The QGD-1602P supports Zabbix Network Monitoring Software that auto-detects connected SNMP-compliant servers/devices, and monitors network status. Zabbix provides a Dashboard and Analysis Reports for efficient large-scale network management.
Hotel staff and customers can benefit from a smart access control system. Customers can check in with self-help kiosks upon arrival while browsing through room details and service packages. Wi-Fi should also be provided for customers to check information and contact customer service. Customer data also needs to be securely stored, while a surveillance system is necessary to ensure security.
The Guardian Smart Edge PoE switch provides:
IT staff in small businesses often need to set up file servers for employees to centrally store files. You also need to create networks for connecting equipment such as printers and VoIP phones. Firewalls are crucial in information security for mitigating attacks and threats. VPN connections are also necessary for secure remote file transfers between offices, sites, and remote workers.
The Guardian Smart Edge PoE switch provides:
Digital signage is a convenient way to display menus/inventory and current offers. The POS system must also be constantly connected to ensure sales data is saved. An NVR surveillance system is also required to ensure customer, staff, and environmental security. These services can also use Wi-Fi for ease of use.
The Guardian Smart Edge PoE switch provides:
Connect a TR RAID, TL USB JBOD, or TL SATA JBOD to expand the storage capacity of the QGD-1602P to accommodate data and business growth.
| Expansion units | TL SATA JBOD | TL USB JBOD | TR RAID |
| Connectivity | PCIe (Multi-ch SATA) | USB 3.2 Gen 2 10Gbps |
TR-002: USB 3.2 Gen 2 10Gbps
TR-004: USB 3.2 Gen 1 5Gbps TR-004U: USB 3.2 Gen 1 5Gbps |
| Number of bays |
4: TL-D400S, TL-R400S
8: TL-D800S 12: TR-R1200S-RP 16: TL-D1600S |
8: TL-D800C
12: TL-R1200C-RP |
2: TR-002
4: TR-004, TR-004U |
| Supported O.S | QNAP QTS, Windows, Linux/Ubuntu | QNAP QTS, Windows, Mac, Linux/Ubuntu | QNAP QTS, Windows, Mac, Linux/Ubuntu |
| Cerate QTS storage pool | Yes | ||
| QTS operations such as disk scan | Yes | Yes | X |
| H/W RAID Protection | X | Yes (RAID 0/1/5/10) | |
| RAID level migration & capacity expansion | Yes | Yes | X |
| Max units supported by QGD-1602P | 2 | 1* | 2* |
* The total number of connected TR and TL USB expansion units cannot exceed two.
The world’s first smart edge switch that runs QTS and supports hosting Virtual Machines (VMs), enabling versatile applications to satisfy all your networking needs.
The world’s first smart PoE edge switch that runs QTS and supports hosting Virtual Machines (VMs), enabling versatile applications to satisfy all your networking needs.(Models without PoE are also available.)
Thunderbolt™ 4 NAS. Designed for creators and small studios
Highly reliable ZFS-based all-flash NAS with AMD Ryzen™ 7000 series processor – boosting all-round business with petabyte-scale storage and 100 GbE potential
Half-width Rackmount 100GbE Managed Switch, cost-optimized for enterprise IT
Desktop Smart Edge PoE SwitchCost-optimized intelligent IP surveillance solution
The world’s first smart edge switch that runs QTS and supports hosting Virtual Machines (VMs), enabling versatile applications to satisfy all your networking needs.
The world’s first smart PoE edge switch that runs QTS and supports hosting Virtual Machines (VMs), enabling versatile applications to satisfy all your networking needs.(Models without PoE are also available.)
Thunderbolt™ 4 NAS. Designed for creators and small studios
Highly reliable ZFS-based all-flash NAS with AMD Ryzen™ 7000 series processor – boosting all-round business with petabyte-scale storage and 100 GbE potential
Half-width Rackmount 100GbE Managed Switch, cost-optimized for enterprise IT
Desktop Smart Edge PoE SwitchCost-optimized intelligent IP surveillance solution
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 17.05 × 6.89 × 1.93 (cm)
Weight: 0.30 (kg)
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm)
Weight: 0.30 (kg)
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface
Dimension (L × W × H): 17.05 × 6.89 × 1.93 (cm)
Weight: 0.30 (kg)
40x40x25mm fan, 12V, 4PIN
new rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc
Dimension (L × W × H): 73.80 × 10.00 × 7.00 (cm)
Weight: 2.48 (kg)
This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click .
Heatsink for M.2 SSD module,14*14MM, Black, self adhesive.8 pcs
Dimension (L × W × H): 12.70 × 2.70 × 6.80 (cm)
Weight: 0.04 (kg)
QNAP Dual-port 10 Gigabit Network Expansion Card for rackmount and tower models (10GBASE-T interface)
Dimension (L × W × H): 6.00 × 10.50 × 26.00 (cm)
Weight: 0.42 (kg)
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 14.30 × 19.30 × 5.20 (cm)
Weight: 0.17 (kg)
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4
Dimension (L × W × H): 5.45 × 3.95 × 1.80 (cm)
Weight: 0.29 (kg)
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen2 x4
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.24 (kg)
Dual-port SFP28 25Gb network expansion card; Mellanox ConnectX-6 Lx;low-profile formfactor; PCIe Gen4 x8
Dimension (L × W × H): 12.00 × 1.65 × 6.90 (cm)
Weight: 0.15 (kg)
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 6.73 × 6.89 × 2.52 (cm)
Weight: 0.19 (kg)
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 8.13 × 6.89 × 2.52 (cm)
Weight: 0.23 (kg)
Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142
Dimension (L × W × H): 8.96 × 6.89 × 1.40 (cm)
Weight: 0.09 (kg)
USB 3.2 Gen 2 10Gbps Type-A Dual-port PCIe Card
Dimension (L × W × H): 11.30 × 18.50 × 5.20 (cm)
Weight: 0.17 (kg)
USB cabe is not included.
Mellanox MFM1T02A-SR SFP+ Optical Module for 10GBASE-SR
Dimension (L × W × H): 12.00 × 19.50 × 3.50 (cm)
Weight: 0.10 (kg)
SFP+ 10GbE twinaxial direct attach cable, 1.5M
Dimension (L × W × H): 1.00 × 24.00 × 29.50 (cm)
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
SFP+ 10GbE twinaxial direct attach cable, 3.0M
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
SFP+ 10GbE twinaxial direct attach cable, 5.0M
This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
DDR type: DDR4(260PIN)
Capacity: 16GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 2048M*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 16GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 1024M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 32GB
Spec: 2G X 8
Frequency: DDR4-3200
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 4G*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 8GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 1024M*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 8GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 1024M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
| Management Type | Web Managed |
| Number of Ports | 18 |
| 10GbE SFP+ |
2
10G/1G
|
| 2.5GbE (RJ45) | 8 |
| 1GbE (RJ45) | 8 |
| Total PoE Ports | 16 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE++ PSE (802.3bt, 90W) | Ports 1-4 |
| PoE Power Output | Ports 1-4 (90W), Ports 5-16 (30W) |
| Total PoE Power Budget | 200W |
| PCIe Slot |
Slot 1: PCIe Gen3 (x4 slot, x2 speed)
Slot 2: PCIe Gen3 (x4 slot, x2 speed) |
| USB 3.2 Gen 1 port | 2 |
| Management Port | 2 x 5GbE ; 2 x 1GbE |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 280W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 48Gbps |
| Switching Capacity | 96Gbps |
| Management Interface | Web |
| Fan | System: 3 x 4 cm (12V DC) |
| Supported Standards |
IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet IEEE 802.3an 10GBASE-T 10G Ethernet IEEE 802.3ae 10GBASE-SR IEEE 802.3ae 10GBASE-LR IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at/bt Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Form Factor | Rackmount |
| LED Indicators |
Per Port: Link/Activity/Speed/PoE
Per System: Warning/PoE/Fan |
| LCD Management | YES |
| Buttons |
Device PSU power button
Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 44.2 × 435.2 × 327.7 mm |
| Weight (Net) | 4.37 kg |
| Weight (Gross) | 5.52 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F) |
| Certifications | CE, FCC, VCCI, BSMI RCM |
| Electromagnetic Compliance | CLASS A, UL62368 |
| Jumbo Frames | YES |
| QTS Built-in | YES |
| CPU | Intel® Atom® C3558 quad-core 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Intel QAT Support | YES |
| Internal Network Bandwidth | 2 x 10GbE |
| Floating Point Unit | YES |
| Encryption Engine | YES (AES-NI) |
| System Memory | 8 GB (1 x 8 GB) |
| Maximum Memory | 64 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility |
2.5-inch bays:
2.5-inch solid-state drives 2.5-inch hard disk drives |
| Hot-swappable | YES |
| M.2 SSD Slots | 2 (NVMe, PCIe Gen3 x 1) |
| SSD Cache Acceleration Support | YES |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
| Warranty | 2 Years |
