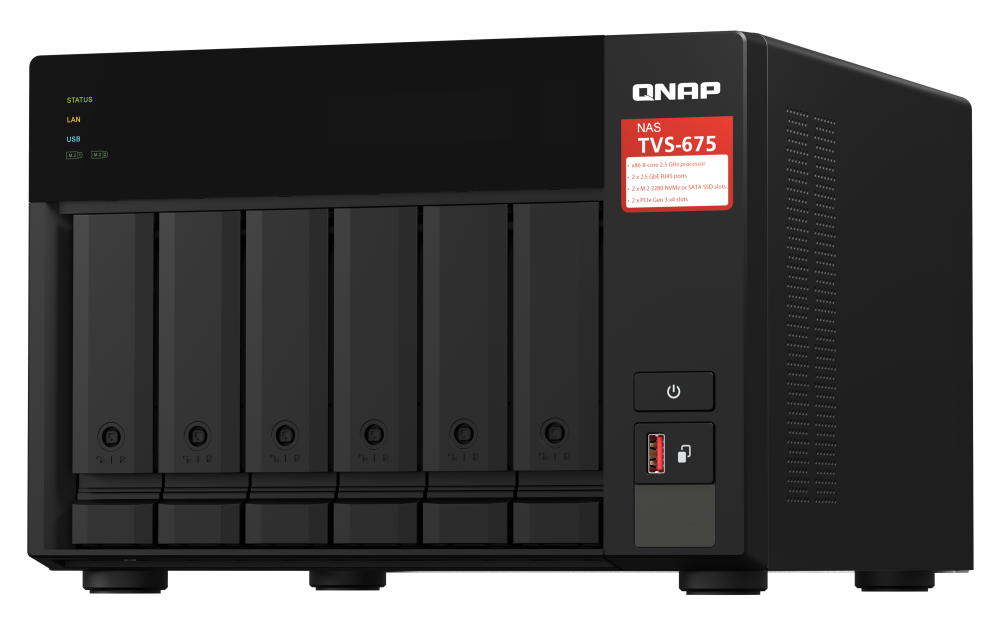

Powered by the x86 architecture Zhaoxin KaiXian KX-U6580 8-core processor, the TVS-675 provides businesses with a modern 2.5GbE NAS solution to tackle everyday tasks like file backup/restore, and to boost team collaboration with higher productivity. Besides hardware advantages with built-in M.2 SSD slots for cache acceleration and PCIe expansion, the TVS-675 supports abundant business and media applications (including snapshot protection, virtual machines, cloud storage gateways, 4K HDMI display, and real-time transcoding) alongside expandable storage capacity and install-on-demand apps, making it a cost-effective and reliable data storage and media NAS.
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
Install high-performance M.2 PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs in the dedicated SSD slots for caching with improved random I/O or high-performance storage pools.
Two PCIe Gen 3 slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or QXP storage expansion cards.
4K media playback and real-time transcoding; directly output videos to an HDMI 2.0 display (up to 4K @60Hz).
Supports storage for virtualization; hosts multiple virtual machines and containers to run a wide range of applications on one NAS device.
Flexibly scale the total storage capacity to match business growth by connecting QNAP expansion enclosures.
ZhaoXin KX-U6580 8-core 2.5GHz processor KX-U6580 8-core 2.5GHz processor x86_64 8-core 2.5GHz processor, 8 GB SODIMM DDR4 (1 x 8 GB)
Powered by an x86 architecture Zhaoxin KaiXian KX-U6580 8 cores/8 threads 2.5GHz processor and 8 GB DDR4 memory (expandable up to 64 GB - 2x 32GB, dual channel support), the TVS-675 has enormous processing power to drive virtual machine performance and tackle complex multitasking workloads. AES-NI encryption support boosts encryption performance while also maintaining the security of your NAS data.
SMB Throughput (2 x 10GbE) Read 2216 MB/s Write 1118 MB/s SMB Throughput (2 x 2.5GbE) Read 591 MB/s Write 588 MB/sTested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS: TVS-675-8G, QTS 4.5.2, LAN-10G2SF-MLX
Volume type: RAID5, 6 x Samsung 860 EVO 1T SATA HDD
Client PC: Windows Server 2016, Intel Xeon E-2124, 64GB RAM, QXG-10G2SF-CX4
Check QNAP NAS with Support for Virtualization application
The TVS-675 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the business efficiency of bandwidth-hungry applications such as large file transfers, fast backup/restoration, and multimedia transfer & editing.
The TVS-675 is also ideally matched with QNAPs managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
Featuring two USB 3.2 Gen 2 (10Gbps) and two USB 3.2 Gen 1 (5Gbps) ports, the TVS-675 allows compatibility with faster USB external drives/enclosures for transferring large media files. The TVS-675 also supports USB devices such as mobile phones and uninterruptible power supplies for greater all-round functionality.
Theoretical Performance USB 2.0 0.48 Gbps USB 3.2 Gen 1 5 Gbps USB 3.2 Gen 2 10 GbpsTo attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or the two built-in M.2 2280 SSDs slots (supports high-performance PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs, sold separately) in the TVS-675. Extra M.2 SSD slots can also be added by installing QM2 PCIe cards, allowing you to configure your M.2 SSDs in a RAID 5/6 array to achieve higher sequential speed or a read-only cache speed similar to the performance of a RAID 10 array while maintaining high storage efficiency.
| SSD Over-provisioning | SSD cache acceleration | Qtier for auto-tiering |
|---|---|---|
| You can add additional SSD over-provisioning to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer SSDs! | Enable SSD caching for increasing IOPS performance and reducing latency for storage volume. This feature is perfect for IOPS-demanding applications including databases and virtualization. | Qtier technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time. |
The TVS-675 has two PCIe Gen 3 x4 slots that allow for installing various expansion cards for expanding application potential.
Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TVS-675 into a wireless NAS. Or make the TVS-675 a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.
Learn More: Wireless network expansion card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).
Learn More: QNAP network expansion cards
Add M.2 SSD caching or 2.5GbE/10GbE network connectivity to the NAS for optimize performance and bandwidth.
Learn More: QM2 card
Install a QXP-W6-AX200 Wi-Fi 6 wireless adapter to turn the TVS-675 into a wireless NAS. Or make the TVS-675 a wireless access point by installing the QWA-AC2600 wireless adapter and the WirelessAP Station app.
Learn More: Wireless network expansion card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).
Learn More: QNAP network expansion cards
The TVS-675 features ZhaoXin C-960 UHD Graphics that supports hardware decoding and real-time transcoding*. The HDMI 2.0 output supports up to 4K (3840 x 2160p) @60Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-675 to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TVS-675 as a versatile workstation by directly outputting virtual machines from Virtualization Station or Linux Station.
*Note: The TVS-675s hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
The TVS-675 is loaded with comprehensive security features to keep your data safe.
QuFirewall for network security: Supports IPv6, firewall access lists, and GeoIP filtering to restrict access upon the geographical location for higher network security.
WPA2 Enterprise: Provides enterprise-grade wireless security for business networks, including certificate authority, encryption key, and enhanced encryption/decryption.
Security Counselor: A security portal that checks for weaknesses and offers recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
The TVS-675 provides a reliable, flexible backup and disaster recovery solution to simplify routine backup jobs cost-efficiently and with high productivity.
HBS centralizes backup, restoration, and synchronization for easily backing up Windows and Mac data and transferring data in the TVS-675 to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
Block-level snapshots are dependable data protection methods, especially in the face of growing ransomware threats. The TVS-675 supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other networked devices, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Experience LXC and Docker lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import and export containers, and create abundant microservices.
With Hyper Data Protector, the TVS-675 becomes an agentless backup tool for VMware vSphere and Microsoft Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
The TVS-675 centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Coupled with the Qsync utility, any file uploaded to the TVS-675 will become available for all linked devices (such as computers, laptops and mobiles). You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. The support of Azure Active Directory Domain Services (Azure AD DS), Windows AD and LDAP services assist system administrators in managing user accounts and permissions for multiple NAS devices with greater efficiency.
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb Fibre Channel expansion cards in the TVS-675, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
QVR Elite is QNAPs subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TVS-675 and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows/Mac or mobile devices, taking full control over monitored areas becomes more convenient and easier.
Run Linux applications (including apps from the Linux Software Center) directly on the NAS and remotely access the Linux desktop from a web browser.
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google Workspace and Microsoft Office 365 to the TVS-675.
Integrate the NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TVS-675, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access.
A high-performance S3 compatible development environment on a NAS to simplify service development workflows from testing to production. You can also move cold data from the cloud to on-premises QuObjects for storage to save cloud storage costs.
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS Live Photo display, and powerful search tool. It supports Google Edge TPU to drive 10x faster image recognition!
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
The storage capacity of the TVS-675 can be expanded using USB-based expansion enclosures (QXP USB storage expansion card required) or connecting SATA 6Gb/s JBOD units (QXP SATA storage expansion card required). NAS storage expansion management is made easy with the user-friendly Storage & Snapshots Manager app.
The TVS-675 also supports QuTS hero - QNAPs ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.
Note:
1. QTS and QuTS hero use different file systems. You must remove all the drives from the TVS-675 before switching from QTS to QuTS hero.
2. QuTS hero requires a NAS with at least 8 GB memory.
3. Inline Data Deduplication requires a NAS with at least 16 GB memory (at least 32 GB memory is recommended for optimal performance).
4. It is recommended to create an SSD RAID with at least two SSDs for the QuTS hero system drive to attain optimal system performance. Please note that M.2 SSD hot-swapping is only supported by M.2 SSD slots on PCIe cards (such as the QM2). M.2 SSD slots that are built into the NAS do not support hot-swapping.
The TVS-675 is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Contact us now to get more recommended products or solutions catered to your needs and requirements!
| CPU | ZhaoXin KX-U6580 8-core 2.5GHz processor KX-U6580 8-core 2.5GHz processor x86_64 8-core 2.5GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | ZhaoXin C-960 Graphics Integrated UHD Graphics Integrated UHD Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 For dual-DIMM configuration, you must use a pair of identical DDR4 modules. |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 or SATA 6Gb/s slots Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | Yes Only the 2.5GbE port |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 Card dimensions for PCIe slot 1~Slot 2190 x 111.15 x 18.76 mm / 7.48 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI Output | 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-6, Status, LAN, USB, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 264.3 279.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 7 kg |
| Weight (Gross) | 7.8 kg |
| Operating Temperature | 0 - 40 C (32F - 104F) |
| Storage Temperature | -20 - 70C (-4F - 158F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27C (80.6F) |
| Power Supply Unit | 250W, 100-240V AC, 50/60Hz, 3.5A |
| Power Consumption: Disk Standby Mode | 41.897 |
| Power Consumption: Operating Mode, Typical | 60.794 W |
| Fan | 3 x 80mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
