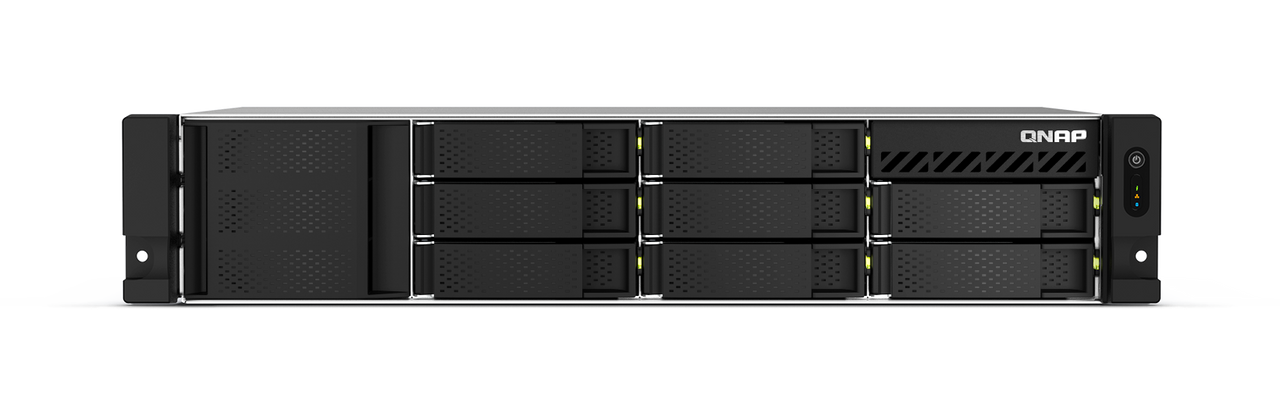

The compact 2U rackmount TS-873AeU-RP combines an AMD Ryzen™ V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU-RP is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD cache acceleration or Edge TPU empowered AI image recognition. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU-RP the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or intensive multi-user access. The space-efficient short depth design of only 11.7 inches (297.4 mm) makes it easy to install in small media cabinets or places with a lot of cabling. The TS-873AeU-RP also features two redundant power supplies to ensure maximum system uptime.
Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel.
Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier™ and SSD caching technology.
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
Host multiple virtual machines and containers to run a wide range of applications.
The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.
AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor, 4 GB SODIMM DDR4 (1 x 4 GB), redundant power supply
The 2U rackmount TS-873AeU-RP has a short depth design of only 11.7 inches (297.4 mm), making it an excellent choice for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. The space saved by the short depth design can be reserved for cabling or ventilation. The TS-873AeU-RP is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.
Note: Users can purchase the optional rail kit to deploy the TS-873AeU-RP in a 19-inch rack following the ANSI/EIA-RS-310-D standard.
Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM (supports ECC RAM), the rackmount TS-873AeU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.
AMD Ryzen™ V1500B 4 cores/8 threads 2.2 GHz processor
4 GB DDR4 SODIMM (up to 64 GB)
Note: Supports ECC RAM (cannot be used together with non-ECC RAM)
10 Gigabytes file transfer
|
Download
108
MB/s
|
Upload
101
MB/s
|
10 Gigabytes file transfer
|
Download
107
MB/s
|
Upload
101
MB/s
|
10 Gigabytes file transfer
|
Download
396
MB/s
|
Upload
178
MB/s
|
10 Gigabytes file transfer
|
Download
350
MB/s
|
Upload
141
MB/s
|
|
Windows File Transfer (2x 2.5GbE)
10 Gigabytes file transfer |
Download
108
MB/s
|
Upload
101
MB/s
|
|---|---|---|
|
Windows File Transfer with Encryption (2x 2.5GbE)
10 Gigabytes file transfer |
Download
107
MB/s
|
Upload
101
MB/s
|
|
Windows File Transfer (2x 10GbE)
10 Gigabytes file transfer |
Download
396
MB/s
|
Upload
178
MB/s
|
|
Windows File Transfer with Encryption (2x 10GbE)
10 Gigabytes file transfer |
Download
350
MB/s
|
Upload
141
MB/s
|
Tested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS: TS-873AeU
OS: QTS 5.0.0
Volume type: RAID5
Client PC:
Windows Server 2019 Standard, Intel Xeon W1250 3.3GHz, DDR4 32GB, NIC Intel I225
Check QNAP NAS with Support for Virtualization application
The TS-873AeU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking.
The 8-bay TS-873AeU-RP is equipped with two M.2 PCIe Gen3 x 1 slots, enabling cache acceleration or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
| NVMe 2 SSDs for cache acceleration or efficient tiered storage |
The TS-873AeU-RP supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors (sold separately) for boosting overall NAS performance. Qtier™ technology can also be used to empower the TS-873AeU-RP with auto tiering that helps continuously optimize storage efficiency across all installed storage devices.
Learn More： , |
| Accelerate AI–powered image recognition with TPU |
By leveraging a Google Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-873AeU-RP can perform high-speed face and object recognition. Google Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
Note: Purchase this item from . Learn more： |
Note:
1. 2.5-inch drive tray bases can be purchased from the .
2. M.2 SSDs are sold separately. As M.2 SSD operations can easily generate excessive heat, it is recommended to install a heatsink on M.2 SSDs.
The TS-873AeU-RP has a PCIe Gen 3 x 8 slot that allows for installing various expansion cards for expanding application potential.
Add extra USB ports to the TS-873AeU-RP to enhance large media file transfer experience.
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.
,
Adds M.2 SSD NVMe caching or 10GbE/2.5GbE connectivity to the TS-873AeU-RP for optimized performance and bandwidth.
Add extra USB ports to the TS-873AeU-RP to enhance large media file transfer experience.
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.
,
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb Fibre Channel expansion cards in the TS-873AeU-RP, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
,
The TS-873AeU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.
Hybrid Backup Sync makes it easy to back up data from a TS-873AeU-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
Note: Minimum memory requirements are 2 GB available and 4 GB installed.
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
,
The TS-873AeU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.
The TS-873AeU-RP supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-873AeU-RP by installing a QNAP 25GbE PCIe card, which uses the Mellanox® ConnectX-6 Lx controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.
Note: To create an iSER connection with VMware ESXi, both the server and NAS require compatible Mellanox® NICs and switches compatible with Mellanox® or supporting PFC (Priority Flow Control) configuration.
By running multiple virtual machines and containers on the TS-873AeU-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
,
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.
QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux® KVM, Microsoft® Hyper-V, and VMware ESXi™ to acquire advanced NAS features without requiring additional NAS hardware.
The TS-873AeU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, , HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
myQNAPcloud allows convenient connection to the TS-873AeU-RP through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
The TS-873AeU-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-873AeU-RP as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.
A security portal for the TS-873AeU-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Regularly scan your TS-873AeU-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
TeamViewer app enables remote management and connectivity to multiple NAS devices from Windows® PCs with an unparalleled level of safety, while increasing IT efficiency and end user productivity.
The TS-873AeU-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.
Manage, access, and share all the files in the TS-873AeU-RP and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Make any file uploaded to a TS-873AeU-RP available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-873AeU-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
2 IP camera channels
Scalable with optional licenses
Monthly US $1.99 /channel
MP4
QVR Pro Client and mobile app
NAS expansion units
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-873AeU-RP storage as needed to accommodate data and business growth.
Connect expansion enclosures to the TS-873AeU-RP, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount cloud storage or remote file servers to expand the capacity of the TS-873AeU-RP while also centrally managing files on the NAS, cloud storage, and remote devices.
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
The TS-873AeU-RP provides an App Center that includes feature-rich apps to expand your NAS potential!
Run a high-performance S3 compatible development environment on your TS-873AeU-RP to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
By using a high-capacity TS-873AeU-RP as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
The TS-873AeU-RP also supports QuTS hero - QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression, and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.
Suited for cross-teams file sync, and HDD-SSD hybrid storage applications
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications
,
1. QTS and QuTS hero use different file systems. You must remove all the drives from the TS-873AeU-RP before switching from QTS to QuTS hero.
2. QuTS hero requires a NAS with at least 8 GB memory.
3. Inline Data Deduplication requires a NAS with at least 16 GB memory (at least 32 GB memory is recommended for optimal performance).
4. It is recommended to create an SSD RAID with at least two SSDs for the QuTS hero system drive to attain optimal system performance. Please note that M.2 SSD hot-swapping is only supported by M.2 SSD slots on PCIe cards (such as the QM2). M.2 SSD slots that are built into the NAS do not support hot-swapping.
The TS-873AeU-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
High-performance 8-core 10GbE NAS for deploying hybrid-infrastructure storage and high-speed virtualization applications
Your NAS is also a surveillance solution, try it now!
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition
Add two M.2 NVMe SSDs to your NAS with a PCIe 3.0 expansion card
Powerful 10GbE-ready hybrid storage with PCIe Gen 4 expandability, supporting QuTS hero or QTS operating system
Quad-core 2.5GbE NAS for professionals, supporting PCIe expansion for 10 Gbps or M.2 SSDs to accelerate applications
High-performance 8-core 10GbE NAS for deploying hybrid-infrastructure storage and high-speed virtualization applications
Your NAS is also a surveillance solution, try it now!
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition
Add two M.2 NVMe SSDs to your NAS with a PCIe 3.0 expansion card
Powerful 10GbE-ready hybrid storage with PCIe Gen 4 expandability, supporting QuTS hero or QTS operating system
Quad-core 2.5GbE NAS for professionals, supporting PCIe expansion for 10 Gbps or M.2 SSDs to accelerate applications
Dual M.2 22110/2280 PCIe SSD expansion card;
Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm)
Weight: 0.26 (kg)
Please check the M.2 SSD compatibility list and QM2 Installation Guide
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm)
Weight: 0.30 (kg)
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 17.05 × 6.89 × 1.93 (cm)
Weight: 0.30 (kg)
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm)
Weight: 0.30 (kg)
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface
Dimension (L × W × H): 17.05 × 6.89 × 1.93 (cm)
Weight: 0.30 (kg)
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x Marvell AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 15.27 × 6.89 × 1.89 (cm)
Weight: 0.30 (kg)
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
Dimension (L × W × H): 15.30 × 1.90 × 6.90 (cm)
Weight: 0.29 (kg)
Dual M.2 22110/2280 SATA SSD expansion card;
Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm)
Weight: 0.30 (kg)
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm)
Weight: 0.32 (kg)
Quad M.2 2280 SATA SSD expansion card
Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm)
Weight: 0.32 (kg)
Dual-port 10GbE SFP+ network expansion card, Brackets for rackmount,tower and full height models are included.
Dimension (L × W × H): 6.00 × 10.50 × 26.00 (cm)
Weight: 0.24 (kg)
Dual-port QSFP+ 40Gb network expansion card; low-profile formfactor; PCIe Gen3 x8
Dimension (L × W × H): 6.00 × 10.50 × 26.00 (cm)
Weight: 0.24 (kg)
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 14.30 × 19.30 × 5.20 (cm)
Weight: 0.17 (kg)
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen2 x4
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.24 (kg)
Dual-port 10GbE Network Adaptor, Intel 700 series Ethernet Controller
Dimension (L × W × H): 11.36 × 6.89 × 1.83 (cm)
Weight: 0.24 (kg)
Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 10.47 × 1.61 × 6.89 (cm)
Weight: 0.28 (kg)
Dual-port SFP28 25Gb network expansion card; Mellanox ConnectX-6 Lx;low-profile formfactor; PCIe Gen4 x8
Dimension (L × W × H): 12.00 × 1.65 × 6.90 (cm)
Weight: 0.15 (kg)
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 6.73 × 6.89 × 2.52 (cm)
Weight: 0.19 (kg)
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 8.13 × 6.89 × 2.52 (cm)
Weight: 0.23 (kg)
Quad port 2.5GbE 4-speed Network card
Dimension (L × W × H): 10.46 × 6.89 × 2.41 (cm)
Weight: 0.24 (kg)
QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.20 (kg)
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm)
Weight: 0.20 (kg)
Single 300W power supply unit for redundant PSU, Active PFC, 90~264VAC, , Vout:12VDC/12VSB, CCL, RoHS
Dimension (L × W × H): 18.50 × 7.35 × 4.00 (cm)
Weight: 0.91 (kg)
Screw pack for 2.5' HDD / SSD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 0.10 × 11.80 × 12.80 (cm)
Weight: 0.01 (kg)
Screw pack for 3.5' HDD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 0.10 × 11.80 × 12.80 (cm)
Weight: 0.03 (kg)
Black HDD tray with black flat head machine screw x6 for 2.5' HDD & silver flat head machine screw x8 for 3.5' HDD
Dimension (L × W × H): 18.50 × 14.00 × 4.00 (cm)
Weight: 0.20 (kg)
new rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc
Dimension (L × W × H): 73.80 × 10.00 × 7.00 (cm)
Weight: 2.48 (kg)
This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click .
4-port miniSAS HD host bus adapter, Broadcom Mercator SAS3616W, PCIe 3.0 x 16 for TL SAS JBOD series
Dimension (L × W × H): 14.97 × 6.89 × 2.30 (cm)
Weight: 0.23 (kg)
QNAP 2-port 16Gbps fiber channel adapter, PCIe 3.0 x8, SFP+, low profile, w/ SFP+ 16G transceivers
Dimension (L × W × H): 19.00 × 14.30 × 5.00 (cm)
Weight: 0.40 (kg)
The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.
2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series
Dimension (L × W × H): 12.97 × 6.89 × 23.00 (cm)
Weight: 0.21 (kg)
QNAP WiFi 6 (Intel AX200) PCIe wireless card w/ antenna & brackets for NAS; Giga-byte GC-WBAX200 QNAP Edition
Dimension (L × W × H): 5.50 × 15.00 × 21.50 (cm)
Weight: 0.32 (kg)
DDR type: DDR4(260PIN)
Capacity: 16GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 2048M*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 16GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 1024M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 32GB
Spec: 2G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 4G*72
Temperature: 0℃~85℃
Environmental Regulation: Halogen Free
DDR type: DDR4(260PIN)
Capacity: 32GB
Spec: 2G X 8
Frequency: DDR4-3200
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 4G*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 4GB
Spec: 512M X 16
Frequency: DDR4-2666
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 512M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 4GB
Spec: 512M X8
Frequency: DDR4-2666
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 512M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 4GB
Spec: TS512MSH64V6H
Frequency: DDR4-2666
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 512M*64
Temperature: 0℃~85℃
Environmental Regulation: Halogen Free
DDR type: DDR4(260PIN)
Capacity: 8GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 1024M*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
DDR type: DDR4(260PIN)
Capacity: 8GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 260PIN
Power Supply: 1.2V
Dram Organization: 1024M*64
Temperature: 0℃~85℃
Environmental Regulation: RoHS
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | YES |
| Encryption Engine | YES (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot |
2 x SODIMM DDR4
Support ECC memory
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay |
8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit |
| Drive Compatibility |
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives |
| Hot-swappable | YES |
| M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) |
| SSD Cache Acceleration Support | YES |
| GPU pass-through | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) |
YES
Only the 2.5GbE port
|
| Jumbo Frame | YES |
| PCIe Slot |
1 x PCIe Gen3 x8
Card dimensions for PCIe slot：210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches.
|
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
| HDMI Output | Optional via a PCIe graphics card |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) |
89 × 482 × 297.4 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 8.15 kg |
| Weight (Gross) | 10.92 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W PSU(x2), 100 - 240V |
| Power Consumption: HDD Sleep Mode | 32.19 W |
| Power Consumption: Operating Mode, Typical |
58.14 W
Tested fully populated with WD10EFRX hard drives.
|
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
