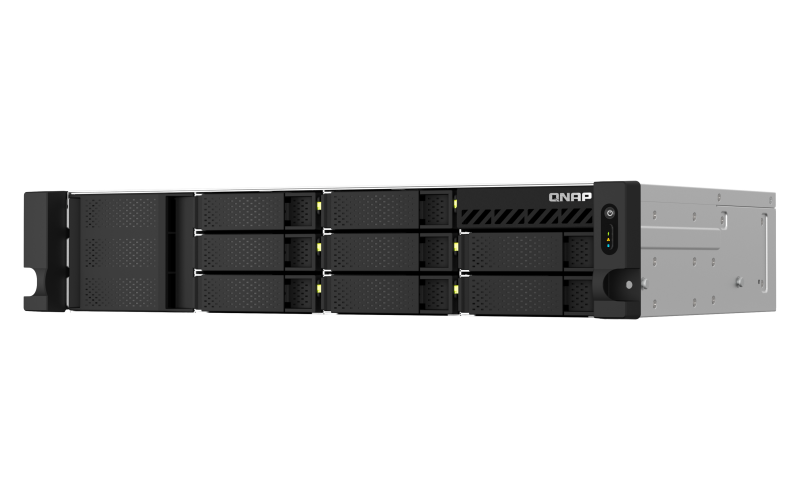

The TS-864eU-RP is powered by Intel® Celeron® N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU-RP surpasses the previous generation.
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
Supports 4K media playback and real-time transcoding.
One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.
Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz, 4 GB SODIMM DDR4 (1 x 4 GB), redundant power supply
The TS-864eU-RP is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.
Tested in QNAP Labs. Figures may vary by environment.
Check QNAP NAS with Support for Virtualization application
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Laptops and upgrade-limited computers can use QNAP’s portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
QNAP’s 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
The TS-864eU-RP is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
,
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-864eU-RP. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.
The TS-864eU-RP has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).
, ,
Add M.2 SSD caching, Edge TPU or 10GbE network connectivity to the NAS for optimize performance and bandwidth.
,
Add extra USB ports to the TS-864eU-RP.
The TS-864eU-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-864eU-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
,
With integrated Intel® OpenVINO™ AI computing resources, the TS-864eU-RP accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the application.
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.
With GPU acceleration
% Performance boost
Tested in QNAP Labs. Figures may vary by environment and NAS models.
The TS-864eU-RP features Intel® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 1.4b output supports up to 4K @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-864eU-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-864eU-RP as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.
*Note: The TS-864eU-RP’s hardware provides hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
The TS-864eU-RP comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
The TS-864eU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
For Windows®, install NetBak Replicator to back up your PC to QNAP NAS. In macOS®, just set up the built-in Time Machine® to secure your data.
Hybrid Backup Sync makes it easy to back up data from a TS-864eU-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
Note: Minimum memory requirements are 2 GB available and 4 GB installed.
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
,
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
The TS-864eU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-864eU-RP to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
The TS-864eU-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.
Manage, access, and share all the files in the TS-864eU-RP and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Make any file uploaded to a TS-864eU-RP available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
The TS-864eU-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
The TS-864eU-RP supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
A security portal for the TS-864eU-RP to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Regularly scan your TS-864eU-RP using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
By running multiple virtual machines and containers on the TS-864eU-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
,
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.
By installing an SR-IOV compatible PCIe SmartNIC in the TS-864eU-RP, you can allocate bandwidth resources from a physical network card directly to VMs, increasing network efficiency and reduced CPU overheads.
Note: SR-IOV is supported by specific QNAP NAS models and should work with SR-IOV compatible adapters.
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-864eU-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
2 IP camera channels
Scalable with optional licenses
Monthly US $1.99 /channel
MP4
QVR Pro Client and mobile app
NAS expansion units
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-864eU-RP storage as needed to accommodate data and business growth.
Connect expansion enclosures to the TS-864eU-RP, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount cloud storage or remote file servers to expand the capacity of the TS-864eU-RP while also centrally managing files on the NAS, cloud storage, and remote devices.
The TS-864eU-RP provides an App Center that includes feature-rich apps to expand your NAS potential!
Run a high-performance S3 compatible development environment on your TS-864eU-RP to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.
The best email backup solution that allows you to easily backup/recover and manage multiple email accounts in their native format with strong security and data integrity.
Remotely access protected data on the same LAN as the TS-864eU-RP without going through complex VPN settings.
The TS-864eU-RP can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
The TS-864eU-RP is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Powerful hardware & fanless cooling 2.5GbE professional NAS. Long-term availability.
Your NAS is also a surveillance solution, try it now!
Powerful 10GbE-ready hybrid storage with PCIe Gen 4 expandability, supporting QuTS hero or QTS operating system
Add two M.2 NVMe SSDs to your NAS with a PCIe 3.0 expansion card
Intel Dual-Core 2.5GbE Multimedia NAS with M.2 PCIe slots and PCIe expandability
Quad-core 2.5GbE NAS for professionals, supporting PCIe expansion for 10 Gbps or M.2 SSDs to accelerate applications
|
Dual M.2 22110/2280 PCIe SSD expansion card Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm) Weight: 0.26 (kg) Note: Please check the M.2 SSD compatibility list and QM2 Installation Guide |
|
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface |
|
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface |
|
Dimension (L × W × H): 15.27 × 6.89 × 1.89 (cm) Weight: 0.30 (kg) |
|
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port Dimension (L × W × H): 5.20 × 19.50 × 12.50 (cm) Weight: 0.32 (kg) |
|
Dual M.2 22110/2280 SATA SSD expansion card Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm) Weight: 0.30 (kg) |
|
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm) Weight: 0.32 (kg) |
|
Quad M.2 2280 SATA SSD expansion card Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm) Weight: 0.32 (kg) |
|
300W power supply unit, Delta Dimension (L × W × H): 10.00 × 30.80 × 13.30 (cm) Weight: 0.76 (kg) |
|
USB 3.0 to 5GbE/2.5GbE/1GbE adapter with type-c connector and 20cm USB 3.0 C to A cable |
|
Screw pack for 2.5' HDD/SSD intallation, 96 pieces, Flat head machine screw Dimension (L × W × H): 0.10 × 11.80 × 12.80 (cm) Weight: 0.01 (kg) |
|
Screw pack for 3.5' HDD intallation, 96 pieces, Flat head machine screw Dimension (L × W × H): 0.10 × 11.80 × 12.80 (cm) Weight: 0.03 (kg) |
|
HDD Tray without key lock, black, metal Dimension (L × W × H): 18.50 × 14.00 × 4.00 (cm) Weight: 0.20 (kg) |
|
Rail kit for rackmount models Dimension (L × W × H): 73.80 × 10.00 × 7.00 (cm) Weight: 2.48 (kg) Note: This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click . |
|
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4 Dimension (L × W × H): 14.30 × 19.30 × 5.20 (cm) Weight: 0.17 (kg) |
|
Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen3 x4 Dimension (L × W × H): 19.00 × 14.50 × 5.00 (cm) Weight: 0.17 (kg) |
|
Single-port 2.5 GbE network expansion card Dimension (L × W × H): 5.00 × 19.20 × 14.50 (cm) Weight: 0.33 (kg) |
|
Dual-port 2.5 GbE network expansion card Dimension (L × W × H): 5.00 × 19.20 × 14.50 (cm) Weight: 0.33 (kg) |
|
Quad-port 2.5 GbE network expansion card Dimension (L × W × H): 5.00 × 19.20 × 14.50 (cm) Weight: 0.33 (kg) |
|
Single-port, 4-speed 5 GbE network expansion card Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm) Weight: 0.20 (kg) |
|
DDR type: DDR4(260PIN) Capacity: 4GB Spec: 512M X8 Frequency: DDR4-2666 Form(PIN): 260PIN Power Supply: 1.2V Dram Organization: 512M*64 Temperature: 0℃~85℃ Environmental Regulation: RoHS |
|
DDR type: DDR4(260PIN) Capacity: 8GB Spec: 1G X 8 Frequency: DDR4-2666 Form(PIN): 260PIN Power Supply: 1.2V Dram Organization: 1024M*64 Temperature: 0℃~85℃ Environmental Regulation: RoHS |
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | YES |
| Encryption Engine | YES (AES-NI) |
| Hardware-accelerated Transcoding | YES |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 16 GB (2 x 8 GB) |
| Memory Slot | 2 x SODIMM DDR4
When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | YES |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via network adaptor |
| 10 Gigabit Ethernet Port | Optional via network adaptor
Optional via PCIe expansion card
|
| Wake on LAN (WOL) | YES |
| Jumbo Frame | YES |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot 1：97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches.
|
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type A USB 3.2 Gen 2 |
| HDMI Output | 1, HDMI 1.4b |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 482.14 × 346.43 mm |
| Weight (Net) | 7.9 kg |
| Weight (Gross) | 10.47 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W (x2), 100-240V |
| Power Consumption: HDD Sleep Mode | 31.742 W |
| Power Consumption: Operating Mode, Typical | 55.83 W
Tested with drives fully populated.
|
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
