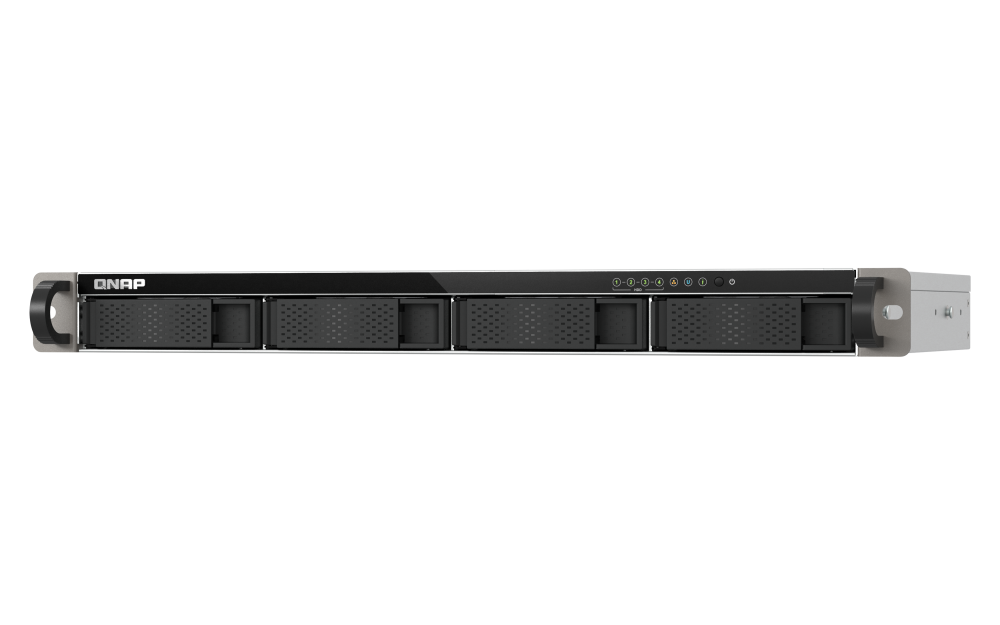

Description, Specifications for QNAP TS-433eU Compact 1U short-depth rackmount 2.5GbE NAS - TS-433eU
TS-433eU Compact 1U short-depth rackmount 2.5GbE NAS your affordable edge storage with NPU acceleration
The closer your data storage is, the faster you can access your data or applications! The TS-433eU with its sleek 1U short-depth rackmount design fits perfectly in tight spaces, making it ideal for flexible deployment. Deploy the TS-433eU closer to your operations to effortlessly create edge storage, and enjoy intelligent file management, secure backups, and seamless Docker container applications.
-
Space-saving
Flexible deployment for installation in small media cabinets or wall-mounted network racks.
-
Powerful yet energy-efficient
The ARM Cortex-A55 quad-core processor with 4GB RAM uses up to 80% less power than similar x86-based NAS.
-
AI image recognition with NPU acceleration
The built-in NPU enhances AI-powered face recognition and accelerates subject identification in QNAPs QuMagie smart album.
-
Dual 2.5GbE as standard
Attain faster data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
-
Easy storage expansion via USB
Connect a QNAP short-depth USB JBOD TR-004U to the TS-433eU to support up to 144 TB capacity (using 24 TB HDDs in RAID 5).
-
Backup and snapshot protection for peace of mind
Centralize all data backups to TS-433eU and regularly create snapshots to safeguard your data against ransomware threats.
Available Models
-
TS-433eU
ARM 4-core Cortex-A55 2.0GHz processor, 4 GB on board (non-expandable)
The 1U short rackmount chassis saves space.
The TS-433eU has a shorter chassis depth of only 11.51 inches (292.3mm), making it easy to install in various space-limited environments, including factories, small offices, audiovisual rooms, or surveillance rooms, offering flexibility and maximized space utilization.
Efficient multitasking with an energy-efficient ARM Cortex-A55 quad-core processor
-
Processor
ARM 64-bit Cortex-A55 4-core 2.0 GHz processor
-
Memory
Built-in 4GB RAM (non-expandable) for efficient multitasking and stable operation
-
Built-in NPU
Boosts AI image recognition performance and reduces CPU workload
-
AES Encryption
AES hardware-accelerated encryption enhances data read/write performance while ensuring data security
Transmission efficiency
-
1 x 2.5GbE SMB Sequential Throughput (1M)
Read MB/s Write MB/s -
1 x 2.5GbE SMB Encryption Sequential Throughput (1M)
Read MB/s Write MB/s
| 1 x 2.5GbE SMB Sequential Throughput (1M) | Read 108 MB/s | Write 110 MB/s |
|---|---|---|
| 1 x 2.5GbE SMB Encryption Sequential Throughput (1M) | Read 108 MB/s | Write 110 MB/s |
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-433eU
OSQTS 5.2.1.2870
Volume Type4 x Samsung 870 EVO 1TB, RAID 5
Client PCWindows Server 2019, Intel Xeon W1250 3.3GHz, 32GB RAM, Onboard Intel i225
IOmeter : 16MB, 30-sec ramp up time, 3-min seq. run time, 16 workers, 4-outstanding
2.5GbE as standard for enhanced performance
In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-433eU comes with 2.5GbE connectivity as standard, enabling businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, and container applications.
-
Built-in 2.5GbE
The TS-433eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
-
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking or SMB Multichannel.
NPU accelerates on-device AI performance. 6x faster face recognition
NPU (Neural-network Processing Unit), designed to speed up AI tasks, not only accelerates organization and classification in QuMagie smart album, but also reduces CPU workloads when fulfilling AI-driven requests. When uploading a large number of photos to the TS-433eU, you will enjoy high-speed AI performance of photo processing brought by NPU.
Learn more about QuMagie smart photo management software >
GPU, NPU, TPU: What are they? >
Check out more QNAP NAS built in NPU >
Photo management solution for photographers and creators
Learn more about QuMagie smart albums
Learn MoreExplore the powerful NAS file and image search engine
Learn MoreLearn how photographers smartly manage 20 years of photos
Learn MoreAll-in-one backup solution
The TS-433eU supports various apps that cover all business backup needs. See all
-
NAS/File server
Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
-
Cloud
Back up NAS data to/from major cloud services, including QNAPs myQNAPcloud Storage.
-
Mac
Set a QNAP NAS as Time Machine backup destination.
-
Google Workspace/Microsoft 365
Use QNAPs Boxafe to back up, recover, and manage the data of 10,000+ users over multiple Google Workspace and Microsoft 365.
-
WordPress
Backup, restore or migrate your WordPress site. QNAP NAS can also host a website. Learn more
-
Google Photos
Migrate archive photos to a QNAP NAS and free up your Google Photos spaces. How to migrate
Secondary backup or restore
By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective. Explore more >
-
NAS and file server
Use the same interface to configure and run backup, replication, and restore jobs.
-
Cloud
Supports advanced technologies to save backup time, spaces, and effort.
-
myQNAPcloud Storage
QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.
Real-time sync for seamless team collaboration
Whether youre in the office or on the go, you can access the latest files synchronized to TS-433eU on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.
- Cross-Device Sync
Sync NAS files across multiple devices, including desktops, laptops, tablets, and phones. - Custom Sync Rules
Set rules for automatic file sync and conflict resolution. - Team Folders
Share folders with specific teams for collaborative file management.
Explore more
Secure data access at your fingertips
-
Access NAS data like from a local folder
Map your TS-433eU NAS folders as network drives on your computer, and access files like they were stored locally.
-
Cross-platform file sharing
Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-433eU enables seamless file sharing and transfer across Windows, macOS and Linux computers, without compatibility concerns.
-
Secure remote access
Use QVPN to create a secure virtual private network to access to the TS-433eU. Businesses can further leverage QuWAN to swiftly set up Mesh VPNs, allowing employees to easily join VPN and systems on intranet.
Find NAS files faster
-
Full-text search
Qsirch searches for files based on file name, content, title, metadata, email title and body text, file path, and more.
-
Image search
Search for images by color or object. AI OCR recognizes and enables capturing text from images.
-
At-a-glance file distribution
Stay informed of storage utilization and distribution of data and files stored on the TS-433eU via charts and analytics.
Explore Qsirch search engine
Multi-level security strategy for enterprises
Bolster business data security with resilience from all aspects
Connection
Permission
Transmission
-
SMB signing acceleration
Enable SMB signing to facilitate secure SMB file transfer, while QNAPs exclusive algorithm greatly increases data signing efficiency and data transmission performance.
Assessment
-
Security and risk assessment
Security Center proactively detects NAS status and unusual file activity, and offers instant protective measures.
-
Centralized notification management
Centrally manage system events and alert notifications via Notification Center to stay up-to-date with NAS status.
-
Block malware attacks
Malware Remover regularly scans your NAS. When detecting malware attacks, infected files are immediately blocked and removed to ensure NAS security.
Construct a multi-level security defense system for enterprises
Gain more insightsHow to configure your network and connect your NAS to prevent malware attacks?
Learn MoreRunning Containers
Run Docker Containers on TS-433eU and download thousands of Container Apps from Docker Hub. Use Container Station to develop software, create sandboxes and deploy microservices.
Install lightweight Containers
Easily manage network resources for Containers
NAS is also a surveillance system
Create a professional surveillance system hosted on a NAS. Easy, simple, and affordable!
-
Supports a wide range of cameras
TS-433eU widely supports over 8000 ONVIF cameras from 200+ brands. No need to worry about compatibility issues.
-
Real-time monitoring
Remotely monitor workplace security in real time using a Windows PC, Mac, web browser, or mobile device.
-
Real-time alarm notifications
Get notified on your phone of recording event alerts including motion detection and obstruction detection.
-
Try for free
Immediately enjoy smart video surveillance with two free built-in camera channels in TS-433eU.
QVR Elite requires a QNAP NAS with at least 1GB RAM.
Use AI-powered drive failure prediction to safeguard your data
Powered by cloud-based AI engine, DA Drive Analyzer can predict drive failure and lifespan. Enterprises can plan drive replacement in advance to prepare for drive failure before it occurs and prevent data loss.
- Supports SATA / SAS / NVMe drive analysis
- Supports Proxy sever connection
- Completes drive failure prediction in 24 hours
- Customized drive data upload time
- All NAS include 1 drive license for permanently free
Learn More
Extend hardware warranty up to 5 years
The TS-433eU is backed by a 3-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
QNAP Warranty Service
NAS Recovery Guide
Need help?
Contact us now to get more recommended products or solutions catered to your needs and requirements!
Specifications
| CPU | ARM 4-core Cortex-A55 2.0GHz processor |
| CPU Architecture | 64-bit ARM |
| Graphic Processors | Mali-G52 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes |
| Hardware-accelerated Transcoding | Yes |
| Neural Processing Unit (NPU) | Yes |
| System Memory | 4 GB on board (non-expandable) Note: Reserves some RAM for use as shared graphics memory. |
| Maximum Memory | 4 GB on board (non-expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | 1U Short Depth Rackmount |
| LED Indicators | System Status, LAN, USB, HDD1~4 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 430 292.3 mm |
| Weight (Net) | 4.01 kg |
| Weight (Gross) | 5.9 kg |
| Operating Temperature | 0 - 40 C (32F - 104F) |
| Storage Temperature | -20 - 70C (-4F - 158F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27C (80.6F) |
| Power Supply Unit | 60W, 100-240VAC |
| Power Consumption: Disk Standby Mode | 9.32 |
| Power Consumption: Operating Mode, Typical | 23.74 W Tested with drives fully populated. |
| Fan | 3 x 40mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 200 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
