AMD EPYC 7302P 16 cores/32 threads 3.0 GHz processor (Max. boost clock 3.3 GHz), 256 GB RDIMM DDR4 ECC memory (8 x 32 GB), 1100W redundant power supplies, 2x dual-port 25GbE SmartNICs
AMD EPYC 7302P 16 cores/32 threads 3.0 GHz processor (Max. boost clock 3.3 GHz), 128 GB RDIMM DDR4 ECC memory (8 x 16 GB), 1100W redundant power supplies, 2x dual-port 25GbE SmartNICs
AMD EPYC 7232P 8 cores/16 threads 3.1 GHz processor (Max. boost clock 3.2 GHz), 64 GB RDIMM DDR4 ECC memory (8 x 8 GB), 1100W redundant power supplies, 1x dual-port 25GbE SmartNIC
Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
The TS-h2490FU is armed with 2nd Gen AMD EPYC 7002 series processors (Rome). Based on the Zen 2 architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications.

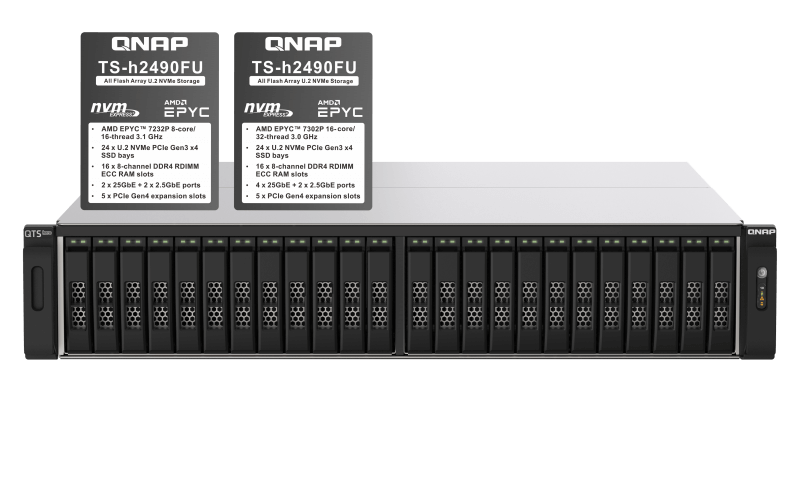

The 2U rackmount TS-h2490FU has 24 drive bays for U.2 NVMe Gen 3 x4 SSDs, with each individual SSD having 32Gb/s dedicated bandwidth for the utmost application response times. Coupled with powerful ZFS data deduction and SSD optimization technologies, the TS-h2490FU provides solid foundations for overcoming complexity and performance demands in todays evolving data center workloads.
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-h2490FU-7302P-128G with QuTS hero 5.0.0
Volume type: WD Ultrastar DC SN640 NVMe SSD *24 (RAID 50); Broadcom Dual-port 25GbE NIC with NetXtreme®-E Series BCM57414 controller *3
Client PC:
6* Client PC simultaneously read and write 16GB file (= 96GB totally)
Intel Core i7-7700 4.20GHz CPU, 32GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016, and Intel Core i3-8100 3.60GHz CPU, 4GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016
QuObjects is verified , ensuring both compatibility and reliability for achieving efficient backup and recovery with Veeam Backup & Replication.
The TS-h2490FU provides breakthrough network connectivity with two pre-installed dual-port 25GbE SFP28 SmartNICs* (that use the Broadcom NetXtreme®-E Series BCM57414, Mellanox® ConnectX®-4 Lx, or the same level SmartNIC). With failover and Port Trunking for up to 100Gb/s bandwidth, the TS-h2490FU empowers your organization with the bandwidth to tackle the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission.
* TS-h2490FU-7232P-64G is pre-installed with one dual-port 25GbE SFP28 SmartNIC.
* The 25GbE SmartNIC is backward compatible with 10GbE SFP+/1GbE SFP.
Install one or more QDA-UMP adapter in the TS-h2490FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 SSD instead of expensive U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA-UMP is hot swappable.
The TS-h2490FU is equipped with five PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h2490FU can take advantage of many PCIe cards to expand application potential.
Designed for connecting the TS-h2490FU to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.
Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity for optimized performance and bandwidth.
Designed for connecting the TS-h2490FU to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.
Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).
The TS-h2490FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access. With a removable motherboard drawer design, IT staff can easily maintain the TS-h2490FU without needing to remove it from the rack.
Designed for modern datacenter workloads with multi-core computing power. Up to 128 PCIe lanes of I/O provides 32Gb/s dedicated bandwidth for each SSD.
Supports 16 DDR4 eight-channel Long-DIMM memory modules.
Includes two dual-port 25GbE SmartNICs, supporting up to 100Gb/s bandwidth under Port Trunking.
Note: TS-h2490FU-7232P-64G is pre-installed with one dual-port 25GbE SmartNIC.
Delivers up to 5 Gbps transfer speeds. Supports external hard drives or UPS.
Supports using existing CAT5e cables to instantly upgrade from 1GbE connections. Obtain up to 5 Gbps under Port Trunking.
Supports installing 10/25/40/100GbE network cards, QM2 cards, and SAS/SATA storage expansion cards for greater application potential (slots 4 or 5 is pre-installed with dual-port 25GbE NIC).
Redundant 1100W power supplies ensure continuous system uptime.
Monitors system temperatures and automatically adjusts fan speeds.
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
| Data integrity is key | Data reduction improves storage efficiency and performance | Multi-level cache technology |
| QuTS heros self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported. | Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance. | Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security. |
| RAID Z enables robust data protection | QSAL (QNAP SSD Antiwear Leveling) enhances data protection | App Center ecosystem extends NAS functionality |
| Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. | RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability. | Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h2490FU. |
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2490FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
TRIM
Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Note: SnapSync will be available from QuTS hero h4.5.2.
The TS-h2490FU also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h2490FU to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.
With Hyper Data Protector, the TS-h2490FU becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
The TS-h2490FU perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
? Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
? Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2490FU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google Workspace and Microsoft® Office 365® to the TS-h2490FU.
Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Qsirch
QNAPs powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
QNAP and Seagate® join hands to assist you in overcoming the challenges of extreme data growth! The TS-h2490FU supports connecting a JBOD, offering a competitive storage solution with unprecedented capacity, industry-leading storage density, and high reliability while also minimizing TCO by saving rack space. You can flexibly install one or more with in the TS-h2490FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 SSD instead of U.2 SSD for optimizing data-intensive applications.
| Huge capacity | High density | Efficient management |
|---|---|---|
| Tackle the massive storage requirements of 4K/8K multimedia, big data storage, critical backups, and more. | The Seagate Exos E series JBOD offers families of 2U and 5U form-factor chassis, supporting up to 84 drives and 1.3 PB of raw data storage with a 12Gb/s SAS interface for up to 28.8 GB/s throughput in a dual controller configuration. | QNAP Storage & Snapshots Manager simplifies NAS and JBOD management, effectively minimizing IT operational workloads. |
TS-h2490FU is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAPs dedication to your essential business needs for continuous operations and non-interrupted services.
