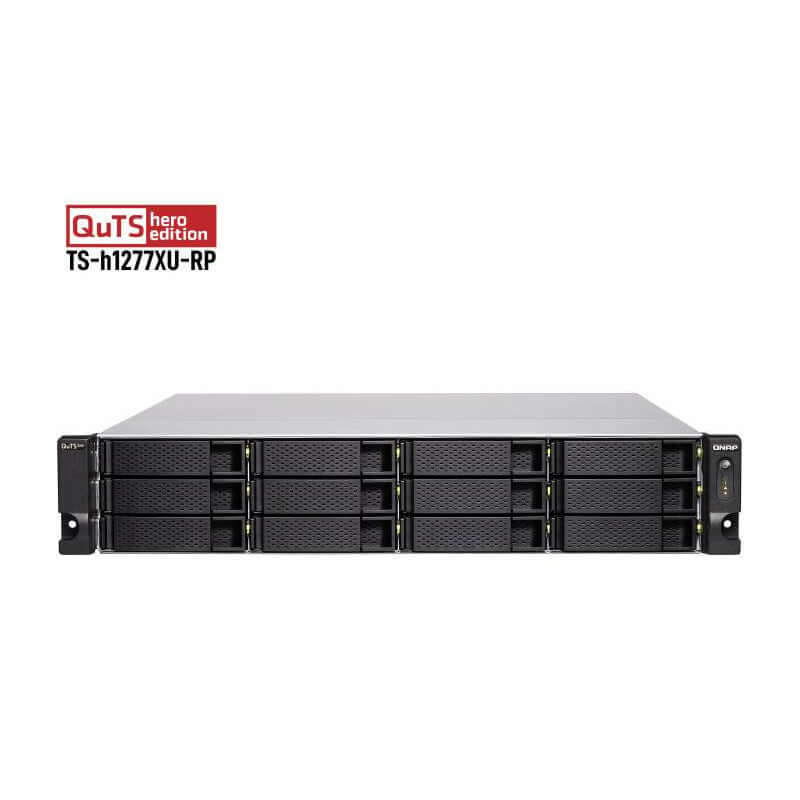

TS-h1277XU-RP
Powered by QuTS hero a ZFS-based operating system with greater reliability and higher performance
The QuTS hero NAS TS-h1277XU-RP is powered by an AMD Ryzen 7 processor that delivers supreme system performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the brand new QuTS hero operating system that incorporates ZFS, the TS-h1277XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1277XU-RP helps your business achieve reliable service-level agreement performance, whether in mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
-
Provides two built-in 10GbE SFP+ ports and pre-installed with a dual-port 10GbE RJ45 adapter for bandwidth-demanding applications.
-
PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
-
SSD cache acceleration improves random read/write performance to meet IPOS-demanding applications.
-
Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2019, and hosts virtual machines and containers.
-
Supports block-based and file-based cloud storage gateways with local cache for low-latency access to cloud data.
(This feature will be available in QuTS hero soon.) -
QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.
Available Models
-
TS-h1277XU-RP-3700X-128G
AMD Ryzen 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz), 128 GB DDR4 memory (4 x 32 GB), redundant power supply
-
TS-h1277XU-RP-3700X-32G
AMD Ryzen 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz), 32 GB DDR4 memory (2 x 16 GB), redundant power supply
Absolute performance with AMD Ryzen processor
Powered by a high-performance AMD Ryzen 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz) with AES-NI encryption acceleration and up to 128 GB DDR4 RAM, the TS-h1277XU-RP delivers aggressive yet power-smart performance to meet your multi-tasking demands and is capable of running multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-h1277XU-RP delivers high performance and dependable reliability for rugged business IT environments as a cost-efficient NAS solution.
Dual-channel memory to deliver power-smart performance
The TS-h1277XU-RP supports dual-channel DDR4 memory and four Long-DIMM slots. When using paired memory modules, the TS-h1277XU-RP can leverage the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 128 GB RAM) of the TS-h1277XU-RP, making it the most ideal and cost-efficient storage solution for environments including virtualization that contain dynamically-changing workloads.
Top-class hardware engineering with high I/O expandability
The TS-h1277XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification demands.
-
AMD Ryzen 7 processor
AMD Ryzen 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core up to 4.4 GHz) delivers high computing power
-
Up to 128 GB DDR4 memory
Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 128 GB RAM.
-
2x 10GbE SFP+ ports
Fully supports 10GbE high-speed networks, ideal for running bandwidth-demanding applications.
-
USB 3.2 Gen 1/ USB 3.2 Gen 2 ports
Supports external hard drives, printers and UPS. The USB 3.2 Gen 2 port provides data transmission speeds up to 10Gb/s, significantly boosting data transfer performance.
-
2x Gigabit Ethernet ports
Ideal for service binding, port trunking, and MPIO configurations.
-
Dual-port 10GbE RJ45 expansion card
Provides two 10GbE RJ45 ports to speed up your workflows.
-
4x PCIe expansion slots
Supports 10GbE/ 25GbE/ 40GbE network expansion cards, QM2 cards, Fibre Channel cards, and SAS expansion cards for greater application potential. (Slot 4 comes with a pre-installed 10GbE adapter).
Note: Slot 2 transmission speed decreases from PCIe Gen 3.0 x8 to PCIe Gen 3.0 x4 when slot 1 is in use. Slot 3 transmission speed decreases from PCIe Gen 3.0 x8 to Gen 3.0 x4 when slot 4 is in use. -
Redundant power supply unit
Redundant 300W power supplies ensure continuous system uptime.
-
System fans
Monitors system temperatures and automatically adjusts fan speeds accordingly.
The brand-new ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero operating system combines the app-based QTS with a 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
| Data reduction improves storage efficiency and performance | Data integrity is key | RAID Z enables robust data protection |
| Inline data deduplication, compression, and compaction reduce file size to save storage space and optimize performance. | QuTS heros self-healing features ensure data integrity and reliability. The operating software also supports Write Once, Read Many Times (WORM). | Multiple RAID levels allows flexible capacity utilization. RAID Triple Parity and Triple Mirror are added to deliver higher level of data protection. |
| Multi-level cache technology with both read and write | Snapshots multiply backup protection | App Center ecosystem extends NAS functionality |
| Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions are simultaneously supported to boost performance. | Near-limitless, instant snapshots bring you peace of mind. Snapshot Replica simplifies data protection, while SnapSync enables enterprise-class disaster recovery. Note: SnapSync will be supported in Q2 2020. |
Apps for backup/sync, business, content management, productivity, and more features, are available for installation on demand to expand NAS application potential. |
Tiered storage configuration for a QuTS hero NAS
Follow these steps to acquire optimal storage efficiency and performance for QuTS hero.
-
Step 1: System Drive
The first Storage Pool you create will be the system drive. Creating an SSD RAID with at least two SSDs for the system drive is recommended.
-
Step 2: Read/Write Cache
Use more SSDs for a read/write cache. You can also install to add M.2 SSDs for expanding cache space.
-
Step 3: Data Storage
Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance.
10GbE connectivity optimizes high-speed data transfer
The TS-h1277XU-RP provides two Gigabit RJ45 ports, two 10GbE SFP+ ports, and comes with a dual-port 10GbE RJ45 expansion card pre-installed in a PCIe slot. The sufficient 10GbE connectivity improves overall network performance to streamline bandwidth-demanding applications, such as virtualization, large file sharing, and high-speed backup and recovery.
,
Abundant I/O capability with PCIe expansion
The TS-h1277XU-RP features 4 PCIe slots that enable deployment of numerous expansion cards for expanding application potential.
Note: The 2U rackmount model uses low-profile graphics cards.
SAS expansion cards
Designed for connecting the TS-h1277XU-RP to REXP expansion units to increase storage capacity by adding up to 128 SAS/SATA drives.
,
10GbE/25GbE/40GbE network cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup and restoration.
,
QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
SAS expansion cards
Designed for connecting the TS-h1277XU-RP to REXP expansion units to increase storage capacity by adding up to 128 SAS/SATA drives.
,
10GbE/25GbE/40GbE network cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup and restoration.
,
SSD caching to accelerate IOPS performance
Adding an SSD cache to the TS-h1277XU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications, including databases and virtualization, and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.
Block-based iSCSI LUN: Ideal choice for virtualization storage
? Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2019 virtualization environments.
? Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
All-in-one solution for hosting virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, allowing you to flexibly allocate physical and virtual network resources to simplify network deployment.
-
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, Android, and vQTS virtual machines and access them via a web browser or Virtual Network Computing (VNC ). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
, ,
-
Container Station
Experience LXC and Docker® lightweight virtualization technologies, and download apps from the built-in Docker Hub Registry®, import or export containers to create multiple microservices.
,
Complete backup planning
QNAP provides a reliable, flexible backup and disaster recovery solution to assist organizations in routine backup jobs cost-effectively and with high productivity.
-
HBS
Consolidates backup, restoration and synchronization functions for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. QuDedup technology deduplicates backup data at the source to accelerate multi-version backups.
,
-
Snapshots
Snapshots are essential for NAS data protection, and the block-level feature makes them a dependable method for protecting data in the face of growing ransomware threat. QuTS hero supports near-limitless snapshots to reinforce your multi-version backups.
-
VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and snapshot support for recording the system state at any specific time, the TS-h1277XU-RP is perfect for backing up virtual machines.
,
Cloud Storage Gateway provides low latency access to data on the cloud
The TS-h1277XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
-
HybridMount File-based Cloud Gateway
Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
-
VJBOD Cloud Block-based Cloud Gateway
Supports mounting object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes, such as addition, modification, or deletion will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Note: This feature will be available on QuTS hero soon.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. Now you have more budge-friendly options to easily add your NAS to a SAN environment. By installing a Marvell®, ATTO® or QNAP Fibre Channel card in the TS-h1277XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Extend hardware warranty up to 5 years
The TS-h1277XU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension to increase warranty coverage up to 5 years.
-
TS-h1277XU-RP-3700X-128G
CPU AMD Ryzen 7 3700X 8-core/16-thread 3.4 GHz
processor, Turbo Core 4.4 GHzCPU Architecture 64-bit x86 Floating Point Unit YES Encryption Engine YES (AES-NI) System Memory 128 GB UDIMM DDR4 (4 x 32GB) Maximum Memory 128 GB (4 x 32 GB) Memory Slot 4 x Long-DIMM DDR4 Flash Memory 5GB (Dual boot OS protection) Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drivesHot-swappable YES SSD Cache Acceleration Support YES Gigabit Ethernet Port (RJ45) 2 10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port Jumbo Frame YES PCIe Slot 4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4***Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use.
***PCIe slot 4 is preinstalled with a 10GbE network adapterUSB 3.2 Gen 1 port 4 USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
1 x Type-A USB 3.2 Gen 2 5V/1A 10GbpsForm Factor 2U Rackmount LED Indicators HDD 1-12, Status, LAN, storage expansion port status Buttons Power, Reset Dimensions (HxWxD) 88.3 × 482 × 562 mm Weight (Net) 13.73 kg Weight (Gross) 16 kg Operating temperature 0 - 40 °C (32°F - 104°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) Power Supply Unit 300W (x2), 100-240V Power Consumption: Operating Mode, Typical 106.66 W With drives fully populatedFan System fan: 2 x 70mm, 12VDC Sound Level 37.2 db(A) System Warning Buzzer Max. Number of Concurrent Connections (CIFS) 700 Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice. -
TS-h1277XU-RP-3700X-32G
CPU AMD Ryzen 7 3700X 8-core/16-thread 3.4 GHz
processor, Turbo Core 4.4 GHzCPU Architecture 64-bit x86 Floating Point Unit YES Encryption Engine YES (AES-NI) System Memory 32 GB UDIMM DDR4 (2 x 16GB) Maximum Memory 128 GB (4 x 32 GB) Memory Slot 4 x Long-DIMM DDR4 Flash Memory 5GB (Dual boot OS protection) Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drivesHot-swappable YES SSD Cache Acceleration Support YES Gigabit Ethernet Port (RJ45) 2 10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port Jumbo Frame YES PCIe Slot 4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4***Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use.
**Slot 3 provides the width of PCIe Gen.3 x8 when Slot 4 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 4 is in use.
***PCIe slot 4 is preinstalled with a 10GbE network adapterUSB 3.2 Gen 1 port 4 USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
1 x Type-A USB 3.2 Gen 2 5V/1A 10GbpsForm Factor 2U Rackmount LED Indicators HDD 1-12, Status, LAN, storage expansion port status Buttons Power, Reset Dimensions (HxWxD) 88.3 × 482 × 562 mm Weight (Net) 13.73 kg Weight (Gross) 16 kg Operating temperature 0 - 40 °C (32°F - 104°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27?C (80.6?F) Power Supply Unit 300W (x2), 100-240V Power Consumption: Operating Mode, Typical 106.66 W With drives fully populatedFan System fan: 2 x 70mm, 12VDC Sound Level 37.2 db(A) System Warning Buzzer Max. Number of Concurrent Connections (CIFS) 700 Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Designs and specifications are subject to change without notice.
