24-Bay all-flash U.2 NVMe PCIe Gen4 dual-processor NAS, 2 x Intel® Xeon® Silver 4309Y 8C/16T processor (up to 3.6 GHz), 64GB RDIMM ECC DDR4 RAM, 4 x 2.5GbE LAN, 2 x 25GbE SFP28, iSCSI, RAID, PCIe Gen4 expansion slots, 1200W redundant power supply, without Rail Kit (RAIL-E03)--dcsplit--,
Featuring dual Intel® Xeon® Silver 4300 processors and 24 U.2 NVMe Gen 4 x4 SSD bays, the QNAP’s flagship NVMe all-flash storage TDS-h2489FU delivers high random read/write IOPS for tackling I/O-intensive and latency-sensitive applications. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and QSAL (QNAP SSD Antiwear Leveling), the TDS-h2489FU meets your requirements for modern data centers, virtualization, and mission-critical backup/restore tasks.
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
Dual 25GbE SFP28 and quad 2.5GbE RJ45 high-speed connectivity accelerates virtualization, intensive file access, and large backup/restoration tasks.
Allows for installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
Supports virtualization storage and hosting virtual machines and containerized apps.
Realizes hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Scalable design to grow with your business by connecting SAS 12Gb/s expansion enclosures for up to petabyte-scale storage capacity.
2 x Intel® Xeon® Silver 4309Y 8-core/16-thread processor, up to 3.6 GHz, 64 GB RDIMM DDR4 ECC (8 x 8 GB)
2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz, 128 GB RDIMM DDR4 ECC (8 x 16 GB)
2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz, 256 GB RDIMM DDR4 ECC (8 x 32 GB)
2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz, 512 GB RDIMM DDR4 ECC (16 x 32 GB)
2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz, 1 TB RDIMM DDR4 ECC (32 x 32 GB)
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
The TDS-h2489FU is powered by dual Intel® Xeon® Silver 4309Y 8-cores 2.8 GHz (up to 3.6 GHz) or Intel® Xeon® Silver 4314 16-cores 2.4 GHz (up to 3.4 GHz) processors, which are based on the new 3rd Gen Intel® Xeon® Scalable processors architecture that increases core performance, memory, I/O bandwidth, and features built-in workload and service acceleration. With 8-channel modules and 32 Long-DIMM slots, the TDS-h2489FU’s DDR4 memory can be upgraded up to 1 TB for fulfilling memory-intensive applications. Demonstrating immense computing power and multi-tasking capabilities, the TDS-h2489FU is outstanding for uncompromising performance demands in HPC, virtualization, file servers, and multimedia applications.

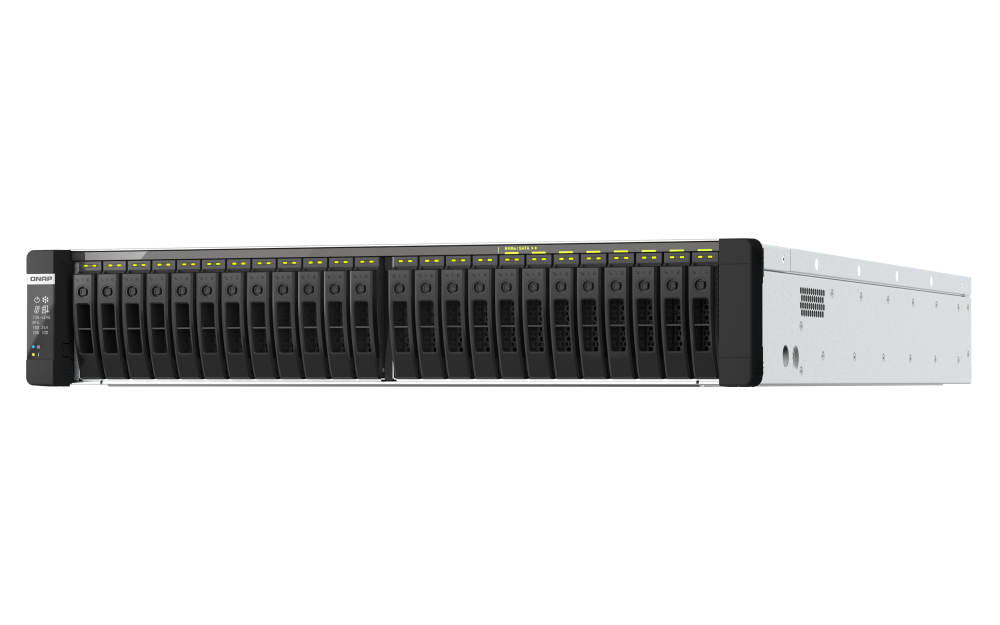

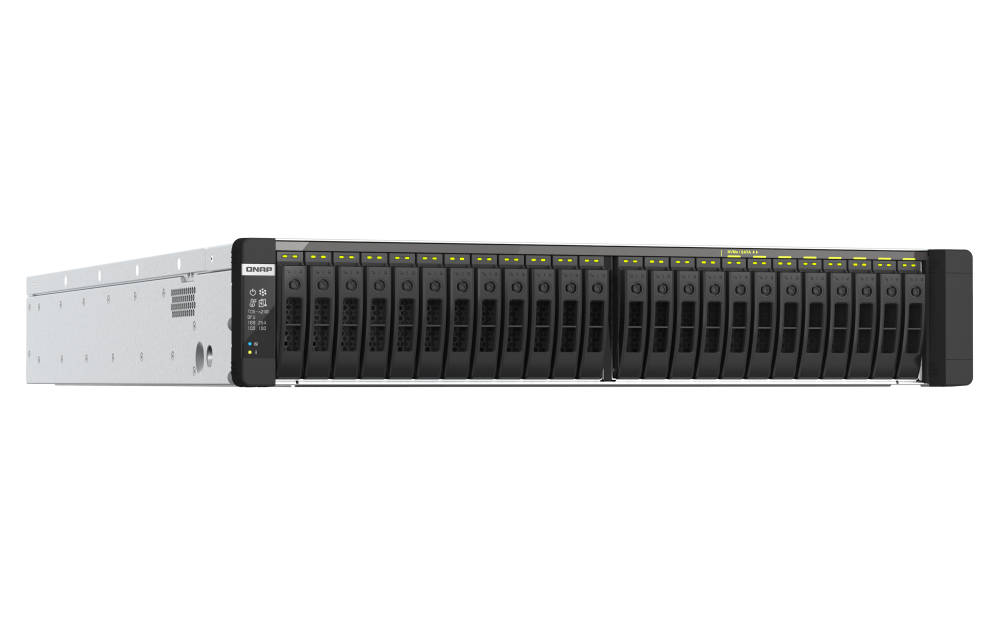

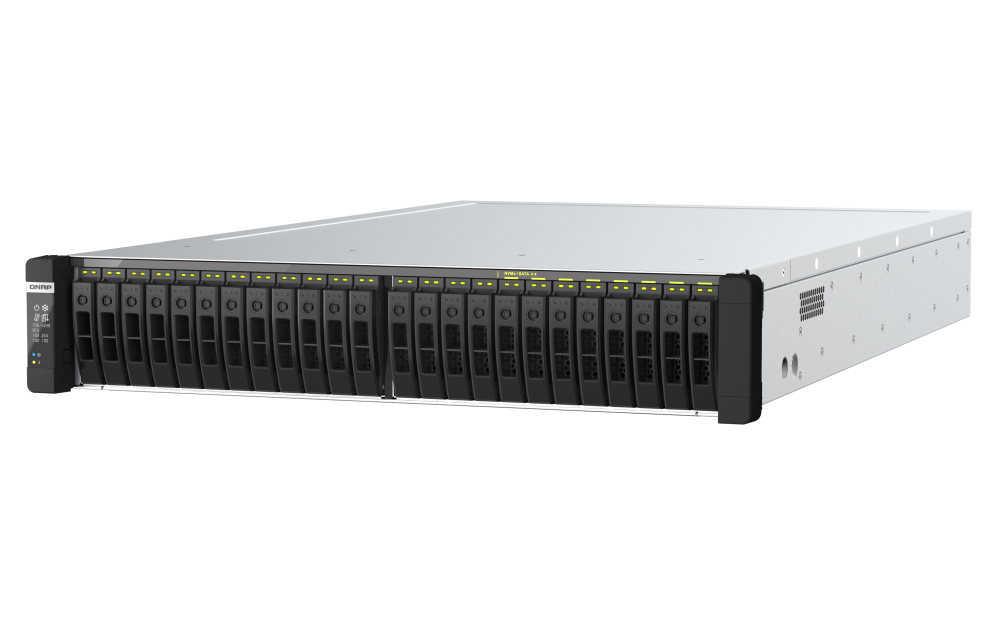

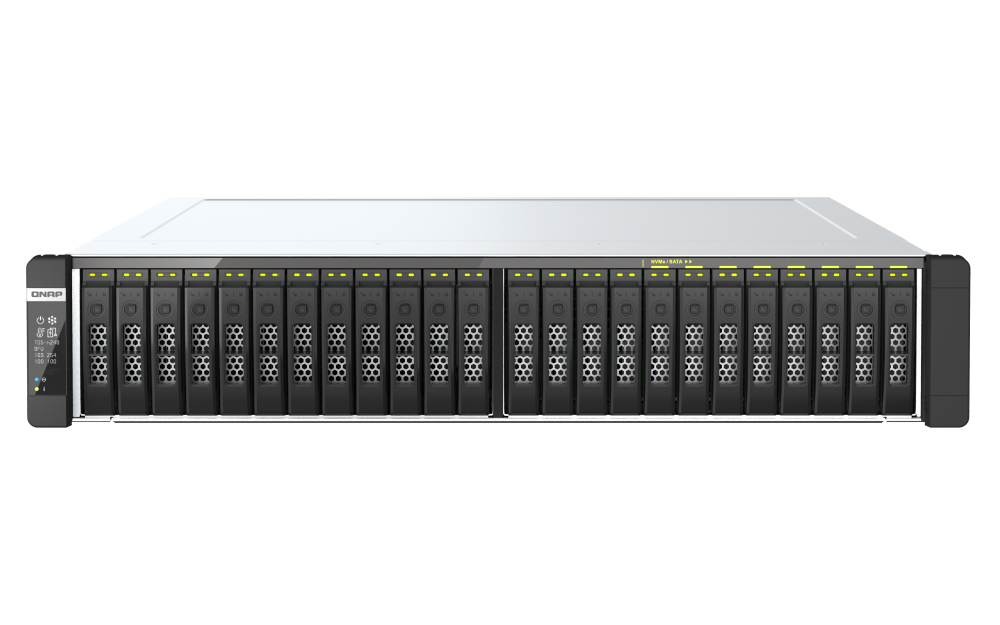

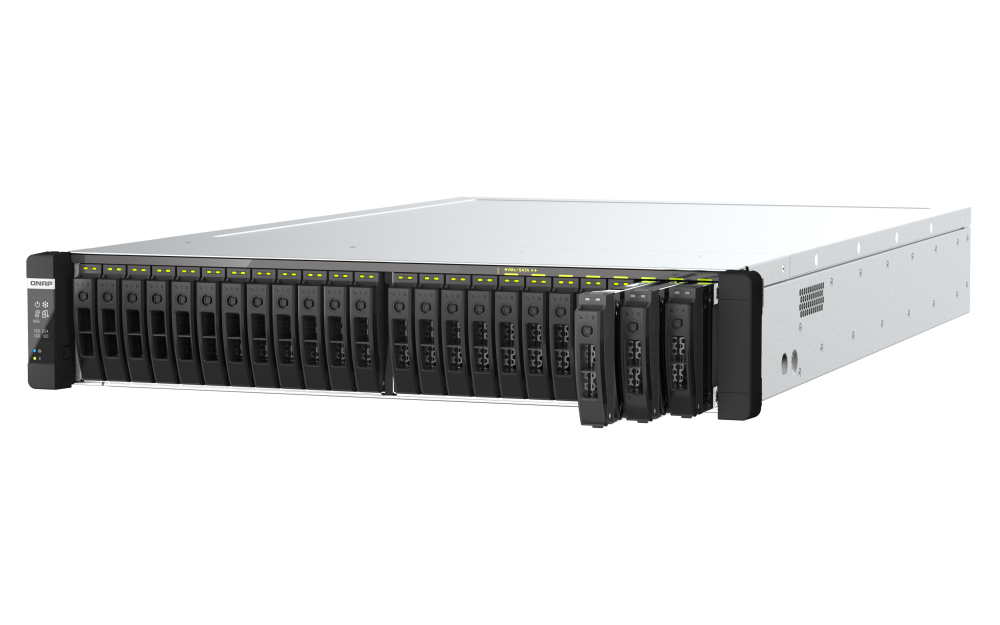

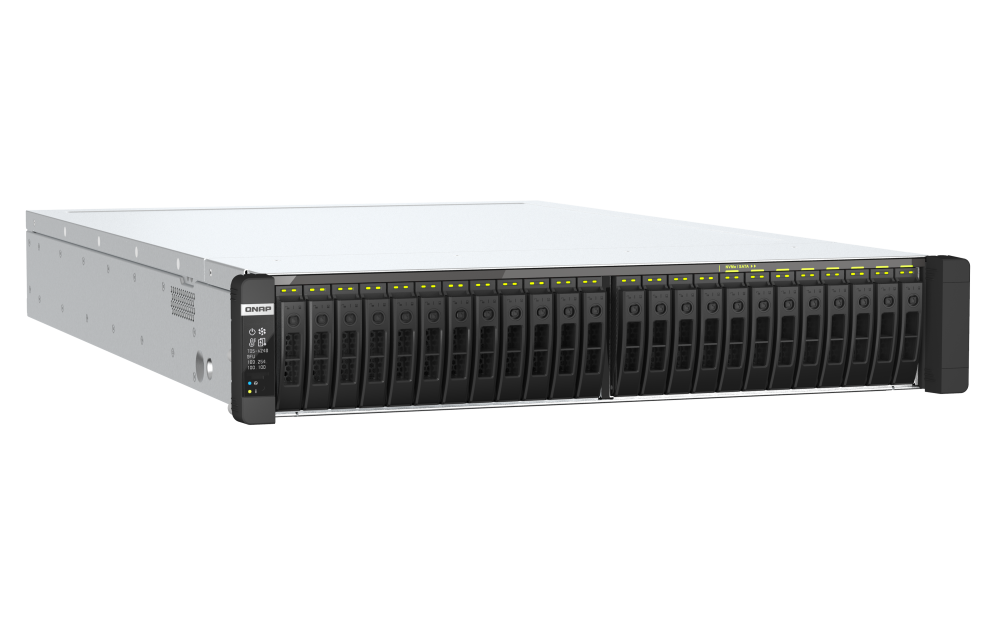

The 2U rackmount TDS-h2489FU has 24 drive bays for U.2 NVMe PCIe Gen 4 x4 SSDs that supply up to 64 Gb/s bandwidth (compatible with PCIe Gen 3 SSDs) for the utmost application response times. Coupled with powerful ZFS data deduction and SSD optimization technologies, the TDS-h2489FU provides solid foundations for overcoming performance demands while also maximizing your SSD investments! Among the 24 drive bays, slots 17 to 24 support both high-performance U.2 NVMe PCIe Gen 4 x4 SSDs or economical SATA 6Gb/s SSDs.
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TDS-h2489FU-4314-128G with QuTS hero 5.0.0
Volume type: Samsung PM9A3 960G Gen4 U.2 NVMe SSD x24 (RAID 50); Intel QXG-100G2SF-E810; QXG-25G2SF-CX4
Client PC:
6* Client PC simultaneously read and write 16GB file (= 96GB totally)
Intel Core™ i7-7700 4.20GHz CPU, 32GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016, and Intel Core™ i3-8100 3.60GHz CPU, 4GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016
Check QNAP NAS with Support for Virtualization application
The TDS-h2489FU provides four 2.5GbE RJ45 ports and has a built-in dual-port 25GbE SFP28 SmartNIC with the NVIDIA® Mellanox ConnectX®-6 Lx SmartNIC controller that supports iSCSI Extensions for RDMA (iSER) to increase performance of data transfer between NAS and ESXi server and offload CPU workloads. With Port Trunking and Auto-Negotiation, the TDS-h2489FU empowers your organization with the bandwidth and reliability to allow thousands of endpoint users to smoothly access data stored on the NAS and also satisfy the most demanding applications (including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission). The TDS-h2489FU is also ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure and scalable network environments without going over budget.
To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or two M.2 2280 SSDs (NVMe PCIe Gen 3 or SATA 6 Gb/s, sold separately) in the TDS-h2489FU. You can implement durable data center SSDs to enhance ZIL protection along with the QuTS hero Dedicated ZIL – SLOG. Extra M.2 SSD slots can also be added by installing QM2 PCIe cards. The M.2 PCIe slots also allow for installing a Coral M.2 Accelerator with Edge TPU, providing an affordable solution to leverage AI acceleration for faster image recognition in your NAS applications.
,
Install one or more QDA-UMP4 adapter in the TDS-h2489FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 PCIe 4.0 x4 NVMe SSD instead of the U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA-UMP4 is hot swappable.
The TDS-h2489FU is equipped with two PCIe Gen 4 slots (one slot comes with a pre-installed dual-port 25GbE NIC) which delivers twice the I/O performance of PCIe Gen 3 for expanding NAS application potential.
Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup-restoration).
Add M.2 SSD caching or 2.5GbE/10GbE connectivity for optimized performance or bandwidth.
Designed for connecting the TDS-h2489FU to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.
,
TDS-h2489FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access. A removable motherboard drawer design also makes it easier to maintain the TDS-h2489FU’s hardware.
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.
Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power failure protection are supported to boost performance and security.
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the NAS.
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TDS-h2489FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.
The TDS-h2489FU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
Hybrid Backup Sync makes it easy to back up data from a TDS-h2489FU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
Enjoy license-free VMware® and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google™ Workspace and Microsoft® Office 365® to the NAS.
Note: Minimum memory requirements are 2 GB available and 4 GB installed.
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
,
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Real-time SnapSync immediately synchronizes data changes with the destination storage, ensuring the primary and secondary NAS always have the same data. RPO is minimal to achieve real-time disaster recovery.
Note: SnapSync is supported by QNAP NAS models featuring the (4.5.3 or later) and ( v2.1.1 or later) operating systems. These NAS can be paired with each other to provide a perfect backup storage solution.
The TDS-h2489FU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
QuTS hero supports enough snapshots for you to create 1 snapshot every hour for 7 years without needing to delete any! Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing.
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TDS-h2489FU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
By running multiple virtual machines and containers on the TDS-h2489FU, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Run multiple Windows®, Linux®, UNIX®, Android™, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
,
Experience Docker®, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import/export containers, and create abundant microservices.
Run Linux® applications (including apps from the Software Center) directly on the NAS and remotely access the Linux® desktop from a web browser. The open-source Linux® platform is also ideal for Internet of Things development.
QuTScloud is a virtual appliance based on the QTS operating system. Enterprises can quickly launch QuTScloud on hypervisors including Linux® KVM, Microsoft® Hyper-V, and VMware ESXi™ to acquire advanced NAS features without requiring additional NAS hardware.
The TDS-h2489FU supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It supports VMware® VAAI and Microsoft® ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively.
The TDS-h2489FU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
The TDS-h2489FU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TDS-h2489FU as a VPN server, and WireGuard® VPN service with an easy-to-use interface for setting up a secure connection.
To facilitate digital transformation, multi-site expansion and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network including QNAP NAS and VMware ESXi platforms.
A security portal for the TDS-h2489FU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Regularly scan your TDS-h2489FU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
The TDS-h2489FU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows®, Mac®, and Linux®/UNIX®, and provides the smartest NAS solution for professionally managing your files.
Manage, access, and share all the files in the TDS-h2489FU and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Make any file uploaded to a TDS-h2489FU available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TDS-h2489FU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
,
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TDS-h2489FU storage as needed to accommodate data and business growth.
Connect expansion enclosures to the TDS-h2489FU, and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.
Mount cloud storage or remote file servers to expand the capacity of the TDS-h2489FU while also centrally managing files on the NAS, cloud storage, and remote devices.
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.
The TDS-h2489FU provides an App Center that includes feature-rich apps to expand your NAS potential!
An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tools for the ultimate photo management and sharing solution.
Run a high-performance S3 compatible development environment on your TDS-h2489FU to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
By using a high-capacity TDS-h2489FU as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.
The best email backup solution that allows you to easily backup/recover and manage multiple email accounts in their native format with strong security and data integrity.
The TDS-h2489FU can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
When using supported IronWolf™ or IronWolf Pro™ hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
The TDS-h2489FU also supports QTS - QNAP’s standard NAS operating system – that provides greater everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TDS-h2489FU.
Suited for performance-demanding tasks, cross-teams file sync, and HDD-SSD hybrid storage applications
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications
QTS and QuTS hero use different file systems. You must remove all the drives from the TDS-h2489FU before switching from QuTS hero to QTS.
QNAP and Seagate® join hands to assist you in overcoming the challenges of extreme data growth! The TDS-h2489FU supports connecting a JBOD, offering a competitive storage solution with unprecedented capacity, industry-leading storage density, and high reliability while also minimizing TCO by saving rack space. You can flexibly install one or more with in the TDS-h2489FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 SSD instead of U.2 SSD for optimizing data-intensive applications.
| Huge capacity | High density | Efficient management |
|---|---|---|
| Tackle the massive storage requirements of 4K/8K multimedia, big data storage, critical backups, and more. | The Seagate Exos E series JBOD offers families of 2U and 5U form-factor chassis, supporting up to 84 drives and 1.3 PB of raw data storage with a 12Gb/s SAS interface for up to 28.8 GB/s throughput in a dual controller configuration. | QNAP Storage & Snapshots Manager simplifies NAS and JBOD management, effectively minimizing IT operational workloads. |
The TDS-h2489FU is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
Powerful 10GbE-ready hybrid storage with PCIe Gen 4 expandability, supporting QuTS hero or QTS operating system
ZFS-based, 1U high-density U.2 NVMe PCIe Gen 4 / SATA 6Gbps SSD all-flash storage built for low-latency file servers, virtualized workloads, data centers, and 4K/8K streams
Transform your NAS into a Media Player
Intel quad-core dual-port 2.5GbE NAS supports M.2 SSD caching and PCIe expandability for high-speed transmission and virtualization applications
Add two M.2 NVMe SSDs to your NAS with a PCIe 3.0 expansion card
Intel Dual-Core 2.5GbE Multimedia NAS with M.2 PCIe slots and PCIe expandability
|
Dual M.2 22110/2280 PCIe SSD expansion card Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm) Weight: 0.26 (kg) Note: Please check the M.2 SSD compatibility list and QM2 Installation Guide |
|
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm) Weight: 0.30 (kg) |
|
Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm) Weight: 0.30 (kg) |
|
Dimension (L × W × H): 15.27 × 6.89 × 1.89 (cm) Weight: 0.30 (kg) |
|
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port Dimension (L × W × H): 5.20 × 19.50 × 12.50 (cm) Weight: 0.32 (kg) |
|
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen4 x 8, 1 x AQC113C 10GbE NBASE-T port |
|
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen4 x 8, 2 x AQC113C 10GbE NBASE-T port |
|
Dual M.2 22110/2280 SATA SSD expansion card Dimension (L × W × H): 19.50 × 5.30 × 12.30 (cm) Weight: 0.30 (kg) |
|
Quad M.2 2280 SATA SSD expansion card Dimension (L × W × H): 5.50 × 26.50 × 12.00 (cm) Weight: 0.32 (kg) |
|
U.2 NVMe to M.2 NVMe SSD PCIe Gen4 adapter |
|
DUAL-PORT 10GBASE-T NETWORK EXPANSION CARD Dimension (L × W × H): 6.00 × 10.50 × 26.00 (cm) Weight: 0.42 (kg) |
|
Dual-port 40GbE QSFP+ network expansion card Dimension (L × W × H): 6.00 × 10.50 × 26.00 (cm) Weight: 0.24 (kg) |
|
Dual-port QSFP28 100GbE network expansion card; low-profile form factor; PCIe Gen4 x16 Dimension (L × W × H): 14.40 × 19.30 × 5.10 (cm) Weight: 0.30 (kg) |
|
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4 Dimension (L × W × H): 14.30 × 19.30 × 5.20 (cm) Weight: 0.17 (kg) |
|
Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4 Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm) Weight: 0.24 (kg) |
|
Dual-port (10GBASE-T) 10GbE network expansion card, Intel X710, PCIe Gen3 x4 Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm) Weight: 0.24 (kg) |
|
Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen3 x4 Dimension (L × W × H): 19.00 × 14.50 × 5.00 (cm) Weight: 0.17 (kg) |
|
Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8 Dimension (L × W × H): 14.40 × 19.30 × 5.10 (cm) Weight: 0.24 (kg) |
|
Single-port 2.5 GbE network expansion card Dimension (L × W × H): 5.00 × 19.20 × 14.50 (cm) Weight: 0.33 (kg) |
|
Dual-port 2.5 GbE network expansion card Dimension (L × W × H): 5.00 × 19.20 × 14.50 (cm) Weight: 0.33 (kg) |
|
Quad-port 2.5 GbE network expansion card Dimension (L × W × H): 5.00 × 19.20 × 14.50 (cm) Weight: 0.33 (kg) |
|
Single-port, 4-speed 5 GbE network expansion card Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm) Weight: 0.20 (kg) |
|
Dual-port, 4-speed 5 GbE network expansion card Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm) Weight: 0.20 (kg) |
|
Quad-port, 4-speed 5 GbE network expansion card Dimension (L × W × H): 14.50 × 19.00 × 5.20 (cm) Weight: 0.23 (kg) |
|
USB 3.0 to 5GbE/2.5GbE/1GbE adapter with type-c connector and 20cm USB 3.0 C to A cable |
|
Screw pack for 2.5' HDD/SSD intallation, 96 pieces, Flat head machine screw Dimension (L × W × H): 0.10 × 11.80 × 12.80 (cm) Weight: 0.01 (kg) |
|
Rack Silde Rail Kit for ES2486dc Note: RAIL-E03 is included inside package of ES NAS and EJ JBOD series |
|
4-port miniSAS HD host bus adapter, Broadcom Mercator SAS3616W, PCIe 3.0 x 16 for TL SAS JBOD series Dimension (L × W × H): 12.40 × 19.50 × 5.30 (cm) Weight: 0.28 (kg) |
|
Dual-port 16Gb Enhanced Gen 5 Fibre Channel Host Bus Adapter with SFP+ transceivers Dimension (L × W × H): 19.00 × 14.30 × 5.00 (cm) Weight: 0.40 (kg) Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems. |
|
Dual-port 32Gb Gen 6 Fibre Channel Host Bus Adapter with SFP+ transceivers Dimension (L × W × H): 19.00 × 14.30 × 5.00 (cm) Weight: 0.40 (kg) Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems. |
|
2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series Dimension (L × W × H): 12.40 × 19.50 × 5.30 (cm) Weight: 0.26 (kg) |
|
QNAP WiFi 6 (Intel AX200) PCIe wireless card w/ antenna & brackets for NAS; Giga-byte GC-WBAX200 QNAP Edition Dimension (L × W × H): 5.50 × 15.00 × 21.50 (cm) Weight: 0.32 (kg) |
|
Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m Dimension (L × W × H): 17.50 × 6.50 × 2.50 (cm) Weight: 0.05 (kg) |
|
SFP28 25GbE twinaxial direct attach cable, 1.5M Dimension (L × W × H): 1.50 × 6.50 × 2.50 (cm) Weight: 0.14 (kg) |
|
SFP28 25GbE twinaxial direct attach cable, 3.0M Dimension (L × W × H): 1.50 × 24.00 × 30.00 (cm) Weight: 0.18 (kg) |
|
3.0M QSFP+ 40GBE DIRECT ATTACH CABLE Dimension (L × W × H): 1.00 × 24.00 × 29.80 (cm) Weight: 0.50 (kg) Note: This 40GbE QSFP+ network cable is designed for NAS models which are compatible with the QNAP 40GbE NIC LAN-40G2SF-MLX |
|
Mini SAS external cable (SFF-8644 to SFF-8644), 0.5 m |
|
mini SAS cable (0.5M, SFF-8644-8088) Dimension (L × W × H): 1.00 × 24.00 × 29.50 (cm) Weight: 0.12 (kg) |
|
1.0 M Mini SAS external cable (SFF-8644 to SFF-8644) Dimension (L × W × H): 1.00 × 24.00 × 29.50 (cm) Weight: 0.15 (kg) |
|
mini SAS cable (1.0M, SFF-8644-8088) Dimension (L × W × H): 1.00 × 24.00 × 29.50 (cm) Weight: 0.12 (kg) |
|
2.0M mini SAS cable ( SFF-8644 to SFF-8644) Dimension (L × W × H): 1.00 × 24.00 × 29.50 (cm) Weight: 0.24 (kg) |
|
Mini SAS external cable (SFF-8644 to SFF-8088), 2.0 m Dimension (L × W × H): 1.00 × 24.00 × 29.50 (cm) Weight: 0.24 (kg) |
|
DDR type: DDR4(288PIN) Capacity: 16GB Spec: 1G X 8 Frequency: DDR4-3200 Form(PIN): 288PIN with ECC Supported: ECC Power Supply: 1.2V Dram Organization: 2048M*72 Temperature: 0℃~85℃ Environmental Regulation: Halogen Free |
|
DDR type: DDR4(288PIN) Capacity: 32GB Spec: 2G X 8 Frequency: DDR4-3200 Form(PIN): 288PIN with ECC Supported: ECC Power Supply: 1.2V Dram Organization: 4G*72 Temperature: 0℃~85℃ Environmental Regulation: Halogen Free |
|
DDR type: DDR4(288PIN) Capacity: 8GB Spec: 1G X 8 Frequency: DDR4-3200 Form(PIN): 288PIN with ECC Supported: ECC Power Supply: 1.2V Dram Organization: 1024M*72 Temperature: 0℃~85℃ Environmental Regulation: Halogen Free |
| CPU | 2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | YES (AES-NI) |
| System Memory | 1 TB RDIMM DDR4 ECC (32 x 32 GB) |
| Maximum Memory | 1 TB (32 x 32 GB) |
| Memory Slot | 32 x RDIMM DDR4 ECC (16 x slots per socket) |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay |
24 x 2.5-inch
The system is shipped without SSD.
For the SSD compatibility list, please visit |
| Drive Compatibility |
2.5-inch bays:
2.5-inch SATA hard disk drives (#17-24) 2.5-inch SATA solid state drives (#17-24) 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable | YES |
| M.2 Slot |
2
Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s |
| SSD Cache Acceleration Support | YES |
| SR-IOV | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) |
YES
Only the 2.5GbE port
|
| Jumbo Frame | YES |
| PCIe Slot |
2
Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x8
*Slot 2 is preinstalled with a 25GbE network adapter.
**Slot 1 provides the width of PCIe Gen4 x16 when Slot 2 is not in use, and provides the width of PCIe Gen4 x8 when Slot 2 is in use. Card dimensions for PCIe slot 1：225 x 68.9 x 39.08 mm / 8.86 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2：225 x 68.9 x 18.76 mm / 8.86 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | Rackmount |
| LED Indicators | SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address |
| Buttons | Power, Reset, OLED |
| Dimensions (HxWxD) | 88.3 × 446.2 × 713.2 mm |
| Weight (Net) | 21.31 kg |
| Weight (Gross) | 27.6 kg |
| Operating Temperature | 0 - 35°C (32°F - 95°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit |
1200W PSU(x2), 100-240Vac
Max Wattage: 1200W@200-240Vac 1000W@100-127Vac |
| Power Consumption: Operating Mode, Typical |
467.59 W
Tested with drives fully populated.
|
| Fan | 6 x 60mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
