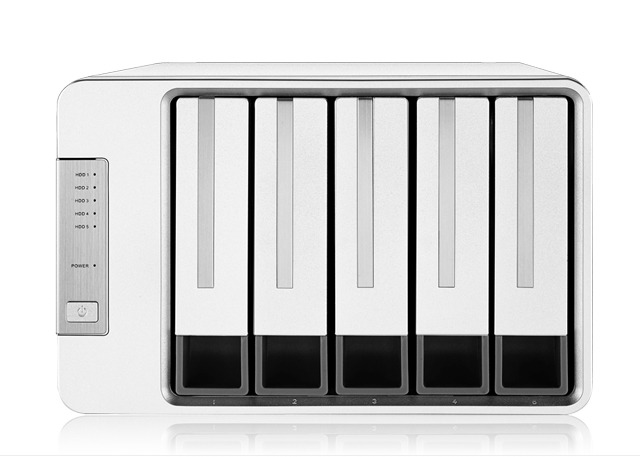

Description, Specifications for TerraMaster d5-300c
Exclusive 2+3 RAID Storage
The D5-300C provides 2+3 RAID storage. This means that hard drive1 and hard drive 2 can be configured as RAID 0, RAID 1 or single disk to secure your important data. The remaining drives 3 through 5 work as single, independent drives. This allows you maximum flexibility in utilizing these three drives.
Real SUPERSPEED with USB3.0 Protocol!
D5-300C adopts USB3.0(5Gbps) SUPERSPEED protocol. In RAID 0, with desktop SSHD hard drives, the read/write speed is up to 410MB/s.
USB Type-C interface
D5-300C equipped with brand new USB type-C SUPERSPEED interface and compatible with Mac and Windows computers.
Up to 100TB storage capacity
D5-300C can support five (5) SATA hard drives, is compatible with 20TB 3.5 inch SATA hard drive, and has a total storage capacity up to 100TB. (Note: users need to purchase their own hard drives. These are not included.)
Compatible with various hard drives
D5-300C is compatible with various hard drives, such as 3.5 inch SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5” SATA hard drives, and 2.5” SATA SSD.
Aluminum Enclosure
D5-300C adopts aluminum enclosure and low-noise fan, which is firm and reliable, of good heat dissipation, and low noise.
Various applications
D5-300C is usable for various data application including video editing, photo backup, research and development, technical document preservation, file backup, music library, financial records, video surveillance, and corporate data storage.
D5-300C has passed multiple certifications, including FCC, CE, UL, GS, and RoHS.
Exclusive worry-free warranty
Brand new replacement for 2 years, quick service in 24 hours!
Automatic Backup
TPC Backupper is an extremely user-friendly Windows PC backup tool that allows you to schedule the backup of folders and disk partitions on your Windows PC to TerraMaster USB devices or NAS network storage servers.To start automatic backups, simply connect the device to your computer, install the TPC Backupper client, and set up a scheduled backup task.This straightforward and reliable backup solution enables you to concentrate on your work, while in the background the TerraMaster D5-300C concentrates on its work to protect your crucial data. TPC Backupper supports both incremental and differential backup strategies and is compatible with Windows 8/8.1/10/11.Download Now
| Storage | |
| Disk Slot Number | 5 |
| Compatible Disk Types | 3.5" SATA HDD |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 100TB (20 TB drive x 5) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,RAID 0,RAID 1 |
| Hardware RAID | Yes |
| RAID Manager Software | NA |
| RAID Manager Software Language | NA |
| RAID Online Expansion | NA |
| RAID Migration | NA |
| RAID Auto-rebuilding | RAID 1 |
| Drive Hot Swap | Yes |
| HDD Sleep | Yes |
| HDD S.M.A.R.T. Inspection | NA |
| Sector Inspection and Parity Check | NA |
| SSC Cache | NA |
| Daisy Chain | NA |
| HDD NCQ Technology | NA |
| Alert Notice | NA |
| Event Log | NA |
| External Ports | |
| USB | USB3.1 Type-C gen1 x 1 |
| Thunderbolt | NA |
| DP Interface | NA |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) | Read：410MB/s (2 SSHD RAID0 mode) |
| Writing Speed (max.) | Write：400MB/s (2 SSHD RAID0 mode) |
| Appearance | |
| Size (H*W*D) | 227 x 225 x 136 mm |
| Packaging Size (H*W*D) | 300 x 275 x 186 mm |
| Weight | net weight: 2.1 Kg Gross Weight: 3.5Kg |
| Others | |
| System fan | 80 mm x 80 mm x25mm (x 2) |
| Fan mode | Smart |
| Noise Level | 19.8dB(A) |
| Power Supply | |
| Power Supply | 90W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 45.6W(Access) |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OS、Mac OS、Linux |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| USB Cable A to Type-C (10Gb) (x1) | |
| Quick Installation Guide (x1) | |
| Power adapter (x1) | |
| Screws (several) | |
| Limited Warranty Note x 1 |
