Description & Specifications

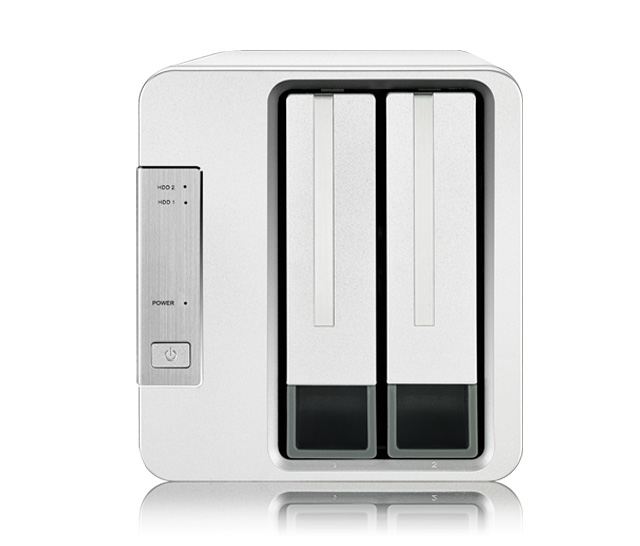

TerraMaster D2-310
Make copies of data fly!
Actual copy speed up to 410MB/S.
1GB video copy only takes 2-3 seconds!
Real super speed with USB3.1 ( Gen 1 ) Transport Protocol!
D2-310 adopts USB3.1 (Gen 1, 5Gbps) SUPERSPEED+ protocol. When using SSHD hard drives in a RAID 0 of RAID, read and write speed (max) is 410MB/ seconds (read) and 400MB/ seconds (write).
1GB video copy only takes 2-3 seconds!
Copy a 1GB video in only 2-3 seconds. Copy 100G documents in only 4 minutes.
Up to 40TB storage capacity
D2-310 can support two (2) SATA hard drives, is compatible with 20TB 3.5 inch SATA hard drive, and has a total storage capacity up to 40TB. (Note: users need to purchase their own hard drives. These are not included.)
Compatible with various hard drives
D2-310 is compatible with various hard drives, such as 3.5 inch SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5ā SATA hard drives, and 2.5ā SATA SSD.
Aluminum Enclosure
D2-310 adopts aluminum enclosure and low-noise fan, which is firm and reliable, of good heat dissipation, and low noise.
Various applications
D2-310 is usable for various data application including video editing, photo backup, research and development, technical document preservation, file backup, music library, financial records, video surveillance, and corporate data storage.
USB Type-C interface
D2-310 is equipped with brand new USB type-C high-speed interface and compatible with Mac and Windows computers.
Exclusive worry-free warranty
Brand new replacement for 2 years, quick service in 24 hours!
Automatic Backup
TPC Backupper is an extremely user-friendly Windows PC backup tool that allows you to schedule the backup of folders and disk partitions on your Windows PC to TerraMaster USB devices or NAS network storage servers.To start automatic backups, simply connect the device to your computer, install the TPC Backupper client, and set up a scheduled backup task.This straightforward and reliable backup solution enables you to concentrate on your work, while in the background the TerraMaster D2-310 concentrates on its work to protect your crucial data. TPC Backupper supports both incremental and differential backup strategies and is compatible with Windows 8/8.1/10/11.Download Now
| Storage | Ā |
| Disk Slot Number | 2 |
| Compatible Disk Types | 3.5" SATA HDD |
| Ā | 2.5" SATA HDD |
| Ā | 2.5" SATA SSD |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 40TB (20 TB drive x 2) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1 |
| Hardware RAID | Yes |
| RAID Manager Software | NA |
| RAID Manager Software Language | NA |
| RAID Online Expansion | NA |
| RAID Migration | NA |
| RAID Auto-rebuilding | RAID 1 |
| Drive Hot Swap | NA |
| HDD Sleep | Yes |
| HDD S.M.A.R.T. Inspection | NA |
| Sector Inspection and Parity Check | NA |
| SSC Cache | NA |
| Daisy Chain | NA |
| HDD NCQ Technology | NA |
| Alert Notice | NA |
| Event Log | NA |
| Ā | Ā |
| External Ports | Ā |
| USB | USB3.1 Type-C gen1 x 1 |
| Thunderbolt | NA |
| DP Interface | NA |
| Power Socket | DC IN 12V |
| Reading/writing Speed (max.) | Ā |
| Reading Speed (max.) | Readļ¼410MB/s (2 SSHD RAID0 mode) |
| Writing Speed (max.) | Writeļ¼400MB/s (2 SSHD RAID0 mode) |
| Ā | Ā |
| Appearance | Ā |
| Size (H*W*D) | 227 x 119 x 133 mm |
| Packaging Size (H*W*D) | 258 x 220 x 170 mm |
| Weight | Net Weight: 1.3KgĀ Gross Weight: 2.1Kg |
| Others | Ā |
| System fan | 80 mm x 80 mm x25mm (x 1) |
| Fan mode | Smart |
| Noise Level | 18.6dB(A)Ā |
| PowerĀ Supply | Ā |
| Power SupplyĀ | 40W |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, single frequency |
| Power Consumption | 25.6WĀ |
| Ā | 2.0WĀ (hard drive dormancy) |
| Environment Temperature | Ā |
| Working Temperature | 5Ā°CĀ ~ 40Ā°C (40Ā°F ~ 104Ā°F) |
| Storage Temperature | -20Ā°C ~ 60Ā°C (-5Ā°F ~ 140Ā°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Windows OSćMac OSćLinux |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC, KC |
| Environment | RoHS, WEEE |
| Package Contents: | Host unit (x1) |
| Ā | Power cord (x1) |
| Ā | USB Cable A to Type-CĀ (10Gb) (x1) |
| Ā | Quick Installation Guide (x1) |
| Ā | Power adapter (x1) |
| Ā | Screws (several) |
| Ā | Limited Warranty Note x 1 |
